Introduction

Servo motors are widely used in robotics, automation, RC cars, robotic arms, and DIY electronics projects. Unlike normal DC motors, servo motors can rotate to a precise angle, making them perfect for controlled movements.

In this blog, we will understand how servo motors work, their types, features, and applications.

What is a Servo Motor?

A servo motor is a special type of motor designed for precise position control. It can rotate to a specific angle based on input signals from a microcontroller like Arduino or ESP32.

Servo motors are commonly used where accurate movement is required.

Types of Servo Motors

1. 180 Degree Servo Motor

Rotates between 0° to 180°.

Example:

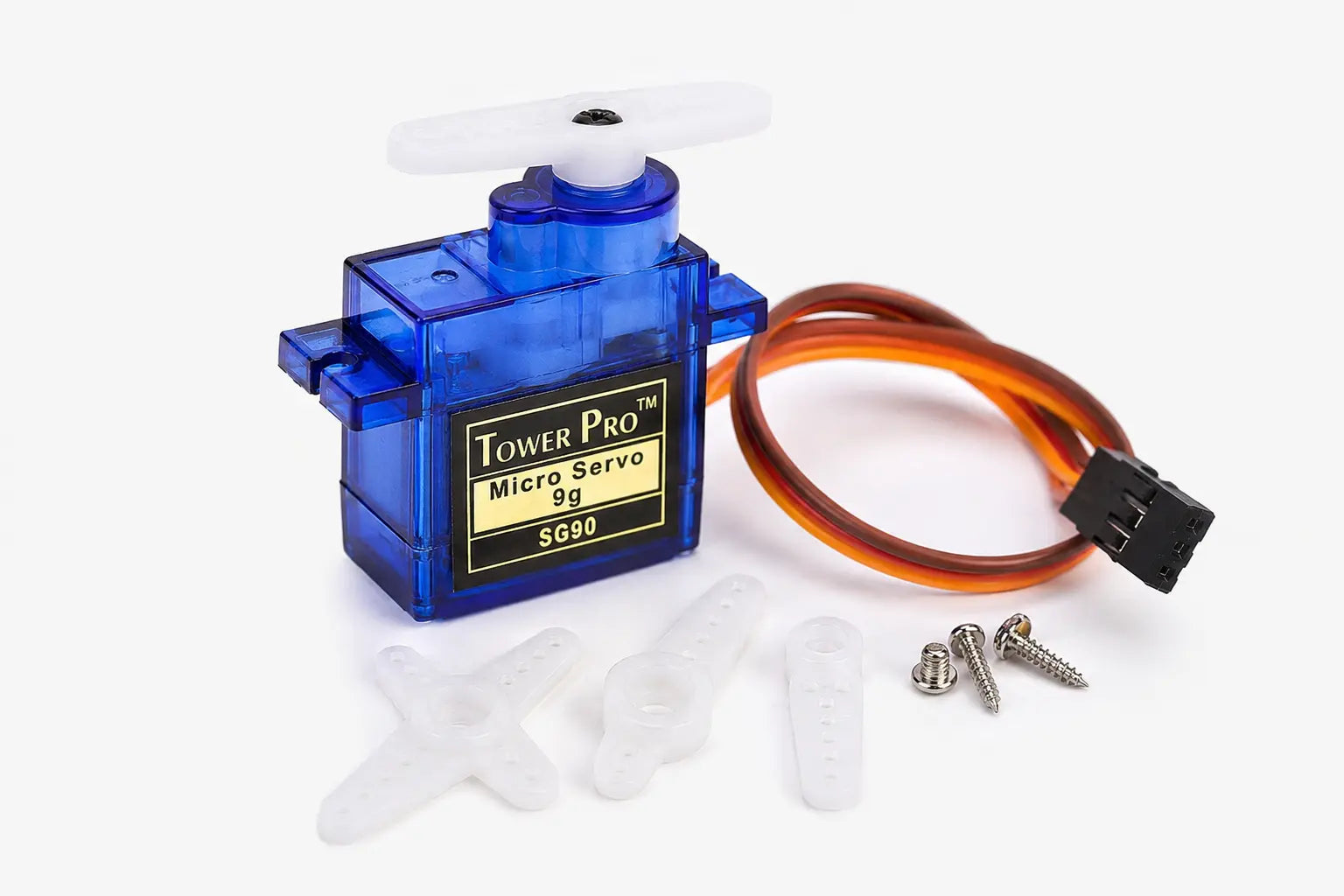

• SG90 Servo Motor

2. Continuous Rotation Servo Motor

Rotates continuously like a DC motor.

Example:

• MG995 Servo Motor

Components of Servo Motor

A servo motor contains:

• DC motor
• Gear system
• Position sensor
• Control circuit

These components help achieve accurate movement and positioning.

How Servo Motors Work

Servo motors work using PWM (Pulse Width Modulation) signals.

The microcontroller sends PWM signals to:

• Rotate left
• Rotate right
• Hold a specific angle

Example:

• 0° position
• 90° position
• 180° position

Applications of Servo Motors

Servo motors are used in:

• Robotic arms
• RC cars
• Drone mechanisms
• Automation systems
• Camera pan systems
• Smart robotics projects

Servo Motor with Arduino

Servo motors can be easily connected to Arduino boards.

Basic Connections

The Arduino Servo library is used to control the motor angle.

Advantages of Servo Motors

• Precise angle control
• Smooth operation
• Compact size
• Easy interfacing
• Ideal for robotics

Conclusion

Servo motors are important components in modern robotics and automation projects. Their ability to move accurately makes them useful for beginners and professionals alike. If you are building robotics projects, servo motors are one of the best motors to start with.
