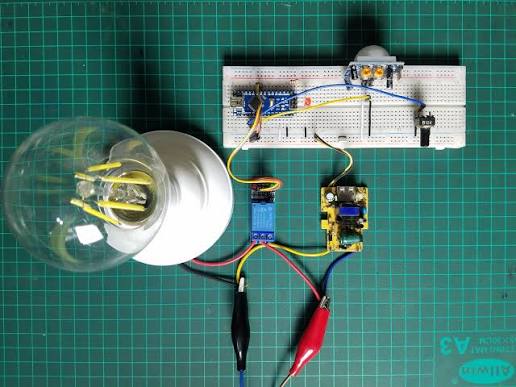

Motion Based Room Light Control Without Arduino Using PIR Sensor

Automatic lighting systems are becoming increasingly useful in homes, offices, corridors, bathrooms, classrooms and other indoor spaces. Instead of manually switching a light ON and OFF, a motion-based lighting system can detect movement and automatically control the light.

This motion based room light control project uses a PIR motion sensor and electronic switching circuitry to control a room light without using Arduino or any other microcontroller.

The project is designed to detect human movement and automatically switch the connected light ON. After the configured delay or when motion is no longer detected, the light can be switched OFF automatically.

What Is Motion Based Room Light Control?

Motion based room light control is an automatic lighting system that uses a motion sensor to detect movement inside a particular area.

When a person enters the detection range of the sensor, the sensor produces an output signal. This signal can be used to activate a relay or switching circuit connected to the room light.

A basic system works according to the following sequence:

Human Motion → PIR Sensor → Control Circuit → Relay → Room Light

Unlike Arduino-based automation systems, this project does not require programming. The motion detection and switching functions are handled by the sensor and electronic control circuit.

How Does a PIR Motion Sensor Work?

A PIR, or Passive Infrared, sensor detects changes in infrared radiation within its field of view.

Human bodies emit infrared radiation. When a person moves across the detection area of the sensor, the change in infrared energy can be detected by the PIR sensor.

The sensor then produces an electrical output that can be used to control another circuit.

PIR sensors are commonly used for motion-activated lighting, security systems and occupancy-related automation.

Motion Based Room Light Control Without Arduino

One of the important features of this project is that Arduino is not required.

The project can be implemented using a PIR sensor together with a suitable electronic switching and timing circuit.

A relay can be used as the interface between the low-voltage control circuit and the electrical light load.

The basic concept is:

PIR Sensor → Timing/Switching Circuit → Relay → Light

This makes the system useful for applications where a simple dedicated motion-controlled light is required without programming a microcontroller.

Components Required

The exact components can vary depending on the circuit design, but a typical hardware-based implementation may include:

• PIR motion sensor

• Relay module or relay

• Timer/control circuit

• Transistor

• Resistors

• Capacitors

• Diode

• LED indicator

• DC power supply

• Connecting wires

• Light bulb or LED light

• Suitable enclosure

For a 555-timer-based implementation, an NE555 timer, transistor, timing resistor and capacitor can be used to create the required delay before switching the light OFF. A PIR-based automatic power saver can therefore be built without Arduino.

Block Diagram

The basic block diagram of the system is:

PIR Motion Sensor → Control/Timer Circuit → Relay → Room Light

The PIR sensor detects movement and sends a trigger signal to the control circuit.

The control circuit processes the trigger and activates the relay.

The relay then switches the connected room light.

Working Principle

The working of the motion based room light control system is simple.

Step 1: Motion Detection

The PIR sensor continuously monitors its detection area.

When there is no movement, its output remains in its normal inactive state.

Step 2: Person Enters the Room

When a person moves into the sensor's detection area, the PIR sensor detects the change in infrared radiation.

The sensor generates an output signal.

Step 3: Control Circuit Is Triggered

The PIR output is applied to the electronic control or timing circuit.

The circuit then produces the required switching signal.

Step 4: Relay Is Activated

The switching circuit activates the relay.

The relay acts as an electrically controlled switch for the connected light.

Step 5: Light Turns ON

Once the relay is activated, the room light turns ON.

The light remains ON according to the timing configuration of the circuit.

Step 6: Light Turns OFF

When there is no further motion for the configured period, the control circuit deactivates the relay.

The room light then turns OFF automatically.

This prevents the light from remaining ON unnecessarily.

Why Use PIR Sensor for Automatic Lighting?

A PIR sensor is useful for automatic lighting because it can detect movement without requiring physical contact.

It can be positioned near a doorway, ceiling or wall depending on the required detection area.

The sensor can therefore automate lighting in locations where people frequently enter and leave.

Automatic Room Light Without Microcontroller

A major advantage of this design is that it does not depend on software.

There is:

• No Arduino programming

• No microcontroller code

• No computer required for programming

• No firmware installation

• No software debugging

The control function is performed using electronic hardware.

This makes the project useful for beginners who want to understand sensor-based automation at the circuit level.

Timer-Based Light Control

A timer circuit can be added so that the light does not switch OFF immediately after the PIR output becomes inactive.

For example:

Motion detected → Light ON → Timer starts → No further motion → Light OFF after delay

The delay can be determined by the resistor and capacitor values in a 555 timer circuit.

For a 555 timer operating in monostable mode, the approximate timing relationship is:

T = 1.1 × R × C

Changing the resistance or capacitance changes the duration of the output pulse.

This allows the ON time to be adjusted according to the application.

Relay-Based Light Switching

A relay provides a convenient way to control an electrical load using a low-voltage control circuit.

The control side of the relay is connected to the motion-control circuit, while the relay contacts switch the light circuit.

For a normally open configuration, the light remains OFF when the relay is not activated.

When motion is detected and the relay is energized, the contacts close and the light turns ON.

Motion Sensor Room Light Applications

This project can be used in many locations.

Bathroom Lighting

A PIR-based system can automatically switch the light when someone enters the bathroom and switch it OFF after the area is no longer occupied.

Corridor Lighting

Motion-controlled lighting can be useful in corridors where lights do not need to remain ON continuously.

Staircase Lighting

The system can automatically activate lights when movement is detected near stairs.

Garage Lighting

A motion sensor can switch on the garage light when someone enters the area.

Store Rooms

Automatic lighting can be useful in rooms that are visited occasionally.

Office Areas

Motion-based lighting can help automate lighting in selected office areas.

Classrooms and Laboratories

Educational institutions can use motion-based lighting concepts as part of energy-saving automation projects.

Benefits of Motion Based Room Light Control

The main benefits include:

• Automatic light control

• Hands-free operation

• Motion-based activation

• Reduced unnecessary lighting

• Simple hardware implementation

• No Arduino required

• No programming required

• Suitable for educational projects

• Useful for home automation

• Can be combined with timer circuits

Motion Sensor Light and Energy Saving

Lights are sometimes left switched ON even when a room is empty.

A motion-based lighting system can reduce this type of unnecessary operation by switching the light according to detected activity.

The system is particularly useful in spaces where people enter and leave frequently but lighting does not need to remain continuously ON.

Energy savings will depend on factors such as the light's power consumption, operating time, room usage and sensor configuration.

Limitations of PIR-Based Lighting

PIR sensors detect changes in infrared radiation caused by movement. Therefore, a person who remains completely still may not continuously trigger the sensor.

Sensor placement is also important.

The PIR sensor should be positioned so that the required area is within its detection range.

The timing should also be configured appropriately. If the delay is too short, the light may switch OFF while a person is still in the room.

Where Should the PIR Sensor Be Installed?

The sensor should be installed at a location where it has a clear view of the area that needs to be monitored.

Common locations include:

• Near room entrances

• On walls

• On ceilings

• Near corridors

• Near staircases

• Inside garages

Avoid placing the sensor where its detection can be unnecessarily affected by heat sources or moving objects.

Motion Based Room Light Control Project for Students

This project is suitable for electronics and electrical engineering students because it demonstrates several important concepts.

Students can learn about:

• PIR motion detection

• Infrared sensing

• Transistor switching

• Timer circuits

• Relay operation

• Automatic load control

• Sensor-based automation

• Energy-saving systems

Because Arduino is not used, students can also understand how automation can be implemented using dedicated electronic circuits rather than relying only on microcontrollers.

Difference Between Arduino and Non-Arduino Motion Lighting

An Arduino-based system uses a microcontroller to read the PIR sensor and control the relay through software.

A non-Arduino system uses dedicated electronic hardware to perform the same basic switching function.

Arduino-Based System

PIR → Arduino → Relay → Light

Non-Arduino System

PIR → Control/Timer Circuit → Relay → Light

The non-Arduino approach can be simpler for a dedicated lighting application because it does not require programming.

The Arduino approach becomes more useful when additional logic, sensors, displays, wireless communication or smart-home features are required.

Future Improvements

The basic motion-based light controller can be expanded with additional features.

Possible improvements include:

• Ambient light detection

• Adjustable motion sensitivity

• Adjustable ON-time

• Manual override switch

• Multiple PIR sensors

• Multiple lighting zones

• Day/night detection

• Smart-home connectivity

• Remote monitoring

• Automatic brightness control

For example, an LDR can be added to prevent the light from turning ON when sufficient daylight is available.

Safety Considerations

If the project controls a mains-powered room light, the AC side of the circuit can present a serious electric-shock and fire hazard.

The mains wiring should be properly insulated and enclosed, and connections should be made only by someone qualified to work with mains electricity.

For student demonstrations and prototypes, a low-voltage lamp or LED load can be used where appropriate.

Conclusion

The motion based room light control without Arduino is a practical automation project that demonstrates how a PIR motion sensor can be used to control lighting automatically.

By combining a PIR sensor with a suitable control or timer circuit and relay, the system can detect movement, switch the light ON and automatically switch it OFF after the required period.

The project is useful for bathrooms, corridors, staircases, garages, classrooms, offices and other areas where automatic lighting can improve convenience and reduce unnecessary operation.

Most importantly, the project demonstrates that useful automation does not always require a microcontroller. A dedicated hardware-based circuit can provide a simple and effective solution for motion-controlled lighting.
