Introduction
Drones have become an important part of modern technology. They are used in photography, agriculture, surveying, inspection, education, research, logistics, and many other fields.
A drone is an aircraft that can fly without a pilot physically sitting inside it. It can be controlled remotely by a pilot or, depending on its design and software, perform some operations autonomously.

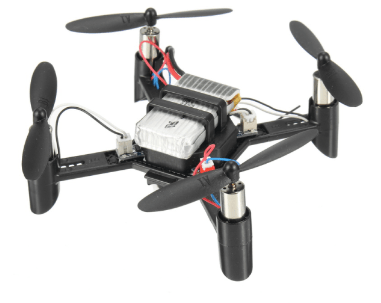

Among the different types of drones, the quadcopter is one of the most popular designs because it is relatively simple, stable, and suitable for learning about flight control and robotics.
In this guide, we will understand how a drone works, the major components used in a drone, how motors and propellers generate lift, how the flight controller stabilizes the aircraft, and how different drone movements are produced.
1. What Is a Drone?
A drone is an unmanned aircraft system that can be operated without a human pilot sitting inside the aircraft.
A basic drone consists of:
-
Frame
-
Motors
-
Propellers
-
Electronic Speed Controllers
-
Flight controller
-
Battery
-
Radio receiver
-
Transmitter
-
Sensors
A simplified system looks like this:
PILOT
│
▼
Radio Transmitter
│
Wireless Signal
│
▼
Radio Receiver
│
▼
┌─────────────────┐
│ Flight Controller│
└────────┬────────┘
│
Motor Commands
│
┌────────┼────────┐
▼ ▼ ▼ ▼
ESC ESC ESC ESC
│ │ │ │
▼ ▼ ▼ ▼
Motor Motor Motor Motor
│ │ │ │
▼ ▼ ▼ ▼
Propeller Propeller Propeller Propeller
2. Main Types of Drones
Drones are available in different configurations.
Quadcopter
Uses four motors and four propellers.
It is one of the most common designs for hobby and educational projects.
Hexacopter
Uses six motors.
The additional motors can provide more lifting capacity and redundancy.
Octocopter
Uses eight motors.
These drones are generally designed for applications requiring greater lifting capability and stability.
Fixed-Wing Drone
Unlike a multirotor, a fixed-wing drone uses wings to generate lift.
It is useful when longer flight duration or covering larger areas is important.
3. How Does a Quadcopter Fly?
A quadcopter generates thrust by rotating its propellers.
The propellers push air downward, producing an upward reaction force.
DRONE
┌─────────────┐
│ │
└─────────────┘
↑ ↑ ↑
Thrust Force
│
│
↓ ↓ ↓ ↓ ↓ ↓ ↓
Airflow
When the total upward thrust approximately balances the downward force of gravity, the drone can hover.
If thrust increases, the drone can climb.
If thrust decreases, the drone can descend.
4. Why Does a Drone Need Four Motors?
A quadcopter uses four motors to control its movement.
The motors are normally arranged in alternating rotational directions.
FRONT
M1 ↻ M2 ↺
\ /
\ /
\ /
X
/ \
/ \
/ \
M4 ↺ M3 ↻
REAR
Two motors rotate clockwise and two rotate counter-clockwise.
This helps balance the rotational forces acting on the drone.
5. Drone Frame
The frame is the physical structure of the drone.
It supports:
-
Motors
-
Flight controller
-
ESCs
-
Battery
-
Receiver
-
Other electronics
Common frame materials include:
-
Carbon fiber
-
Plastic
-
Aluminum
-
Composite materials
For hobby projects, lightweight and rigid frames are preferred.
Add your Electro Robo Store product link here:
Drone Frame
6. Brushless Motors
Most larger hobby drones use brushless DC motors.
A brushless motor converts electrical energy into rotational motion.
The motor rotates the propeller attached to its shaft.
Battery
│
▼
ESC
│
▼
Brushless Motor
│
▼
Propeller
│
▼
Thrust
Motor selection depends on factors such as:
-
Motor KV rating
-
Battery voltage
-
Propeller size
-
Required thrust
-
Drone weight
Add your product link here:
Brushless Drone Motor
7. What Is Motor KV?
Motor KV is an important specification when selecting a drone motor.
In simple terms, KV indicates the approximate motor speed per volt under no-load conditions.
For example, a motor with a higher KV rating generally spins faster for a given voltage than a lower-KV motor.
However, higher KV does not automatically mean a better motor.
Motor KV must be considered together with:
-
Propeller size
-
Battery voltage
-
Motor current
-
Required thrust
-
Drone weight
8. Propellers
Propellers convert the rotational motion of the motor into thrust.
A quadcopter normally uses two types:
-
Clockwise propellers
-
Counter-clockwise propellers
The correct propeller must be installed on the correct motor.
Incorrect propeller installation can cause the drone to flip or fail to generate the expected thrust.
Add product link:
Drone Propellers
9. Electronic Speed Controller
An Electronic Speed Controller (ESC) controls the speed of a brushless motor.
The flight controller sends commands to the ESC.
The ESC then controls the motor.
Flight Controller
│
│ Signal
▼
ESC
│
│ Three-phase power
▼
Brushless Motor
A quadcopter normally requires one ESC for each motor, although some drone designs use integrated four-in-one ESC boards.
Add product link:
Drone ESC
10. Flight Controller
The flight controller is the central control system of a modern multirotor.
It receives information from:
-
Gyroscope
-
Accelerometer
-
Radio receiver
-
Other sensors
It processes this information and adjusts motor speeds.
Sensors
│
▼
┌───────────────┐
│ Flight │
│ Controller │
└───────┬───────┘
│
┌───────┼────────┐
▼ ▼ ▼
ESC ESC ESC ...
│ │ │
Motor Motor Motor
Add product link:
Drone Flight Controller
11. Gyroscope
The gyroscope measures angular movement.
It helps determine how quickly the drone is rotating around its axes.
The main rotational axes are:
-
Roll
-
Pitch
-
Yaw
The flight controller uses this information to stabilize the drone.
12. Accelerometer
An accelerometer measures acceleration.
It can help determine the drone's orientation relative to gravity.
Together, the gyroscope and accelerometer provide important information for flight stabilization.
13. Roll, Pitch and Yaw
Drone movement is generally described using three rotational axes.
Roll
Roll rotates the drone from side to side.
LEFT ↓ RIGHT ↑
The drone can roll left or right by changing the thrust produced by the motors on opposite sides.
Pitch
Pitch tilts the drone forward or backward.
FRONT ↓
\
\
REAR ↑
This allows the drone to move forward or backward.
Yaw
Yaw rotates the drone around its vertical axis.
↻
DRONE
↺
Yaw is controlled by changing the relative speed of clockwise and counter-clockwise motor groups.
14. How a Drone Hovers
During a stable hover, the flight controller attempts to maintain a balanced condition.
↑ Thrust
↑
┌─────────┐
│ DRONE │
└─────────┘
↓
Gravity
The flight controller continuously makes small motor-speed adjustments to compensate for disturbances such as:
-
Wind
-
Uneven weight
-
Motor differences
-
Small changes in orientation
15. Drone Battery
Most hobby drones use rechargeable batteries designed to deliver high current.
LiPo batteries are commonly used because of their high power-to-weight characteristics.
Important battery specifications include:
-
Cell count
-
Voltage
-
Capacity
-
Discharge rating
For example:
3S LiPo
Nominal voltage ≈ 11.1 V
4S LiPo
Nominal voltage ≈ 14.8 V
The correct battery must be compatible with the motors, ESCs, and other electronics.
Add product link:
LiPo Drone Battery
16. Radio Transmitter and Receiver
The transmitter is operated by the pilot.
The receiver is installed on the drone.
Pilot
│
▼
Transmitter
│
│ Wireless communication
▼
Receiver
│
▼
Flight Controller
│
▼
Motors
The pilot normally controls:
-
Throttle
-
Roll
-
Pitch
-
Yaw
17. Drone Communication
Different drone systems can use different communication technologies.
Examples include:
-
2.4 GHz radio systems
-
5.8 GHz video systems
-
Wi-Fi
-
Bluetooth for certain short-range applications
-
Other dedicated radio protocols
The communication system depends on the drone's purpose and hardware.
18. Drone Camera System
A drone can carry a camera for applications such as:
-
Photography
-
Video recording
-
Inspection
-
Mapping
-
Education
A camera system may include:
Camera
│
▼
Video Processing
│
▼
Wireless Video Link
│
▼
Ground Display
Camera-equipped drones can become significantly heavier, so the additional payload must be considered when selecting motors, propellers, frame, and battery.
19. Drone GPS
GPS can be added to suitable flight controllers.
GPS information can help with features such as:
-
Position information
-
Navigation
-
Return-to-home functions
-
Position-related flight modes
However, GPS does not replace the flight controller's other sensors and control systems.
Add product link:
GPS Module
20. Complete Drone System
A more advanced drone can contain several subsystems.
┌───────────────┐
│ Transmitter │
└───────┬───────┘
│
▼
┌───────────────┐
│ Receiver │
└───────┬───────┘
│
┌───────────────────▼──────────────────┐
│ Flight Controller │
│ │
│ Gyroscope | Accelerometer | GPS │
└───────────────┬──────────────────────┘
│
┌──────────────┼──────────────┐
▼ ▼ ▼
ESC ESC ESC ...
│ │ │
▼ ▼ ▼
Motor 1 Motor 2 Motor 3
│ │ │
▼ ▼ ▼
Propeller Propeller Propeller
Battery
│
▼
Power Distribution
21. Drone Flight Modes
Depending on the flight controller and software, a drone may support different flight modes.
Examples include:
Manual / Acro Mode
The pilot directly controls the drone's attitude and movement.
Stabilized Mode
The flight controller assists with maintaining a stable attitude.
Position-Assisted Mode
When suitable positioning sensors are available, the system can assist with maintaining position.
Return-to-Home
Some systems can use navigation information to help return the aircraft toward a configured home position.
The exact available modes depend on the flight controller, firmware, sensors, and configuration.
22. Common Drone Problems
Drone Flips Immediately
Possible causes:
-
Incorrect motor order
-
Incorrect motor rotation
-
Wrong propeller
-
Flight controller orientation problem
One Motor Does Not Work
Check:
-
ESC signal
-
Motor connection
-
Power connection
-
Flight controller output
Drone Vibrates
Possible causes:
-
Damaged propeller
-
Loose motor
-
Unbalanced propeller
-
Loose frame
-
Excessive vibration
Short Flight Time
Possible causes:
-
Heavy payload
-
Large or inefficient propeller selection
-
Old battery
-
High motor current
-
Aggressive flying
23. How to Improve Drone Flight Time
Flight time depends on many factors.
To improve efficiency:
-
Reduce unnecessary weight.
-
Use appropriate motors.
-
Select suitable propellers.
-
Use a correctly matched battery.
-
Keep the frame rigid.
-
Replace damaged propellers.
-
Avoid carrying unnecessary payload.
There is always a trade-off between battery size, weight, thrust, and flight time.
24. Drone Applications
Drones are used in many industries.
Agriculture
Used for crop monitoring and certain specialized agricultural operations.
Photography
Used for aerial photography and video.
Surveying
Used for collecting aerial imagery and mapping data.
Inspection
Can assist with inspection of difficult-to-access structures.
Education
Drone kits are useful for teaching:
-
Electronics
-
Programming
-
Robotics
-
Control systems
-
Sensors
Research
Drones can be used as experimental platforms for navigation, computer vision, and autonomous robotics.
25. Educational Drone Project Ideas
Once the basic drone is working, students can explore more advanced projects.
Project 1: Drone Telemetry
Collect and display flight information.
Project 2: GPS-Based Navigation
Use GPS data for position monitoring and navigation experiments.
Project 3: Obstacle Detection
Add distance sensors or computer vision for obstacle awareness.
Project 4: Camera Streaming
Build a system for transmitting live video.
Project 5: Autonomous Navigation
Develop algorithms that allow the drone to follow predefined navigation commands.
26. Drone Components Shopping Checklist
For a basic quadcopter project, you may need:
-
Drone Frame
-
Brushless Motors
-
ESCs
-
Flight Controller
-
Propellers
-
LiPo Battery
-
Battery Charger
-
Radio Transmitter
-
Radio Receiver
-
Power Distribution Board
-
GPS Module
-
Drone Camera
Add your actual Electro Robo Store product URLs to these words so readers can directly open the corresponding product pages.
27. Conclusion
A drone is much more than four motors and propellers. It is a combination of mechanical design, electronics, sensors, communication, software, and control systems.
The flight controller continuously processes sensor information and pilot commands and adjusts motor speeds to control the aircraft.
Understanding each component individually makes it much easier to understand the complete drone system.
For students and electronics enthusiasts, drones provide an excellent platform for learning embedded systems, robotics, wireless communication, sensors, programming, and control engineering.
