Introduction

A quadcopter drone is an unmanned aerial vehicle (UAV) that uses four motors and four propellers to generate lift and control its movement. Unlike a helicopter, a quadcopter does not use a large main rotor. Instead, it changes the speed of individual motors to control roll, pitch, yaw, and altitude.

Building a DIY drone is an excellent way to learn about:

• Electronics

• Brushless DC motors

• Electronic Speed Controllers (ESCs)

• Flight controllers

• Wireless communication

• Battery systems

• Sensors and control systems

This project explains the main components of a quadcopter drone kit, how they connect together, how the drone works, and the basic setup process.

Safety note: Drone propellers can cause serious injury. Always remove the propellers while configuring or testing electronics. Use a suitable open area for flight testing and follow applicable local drone regulations.

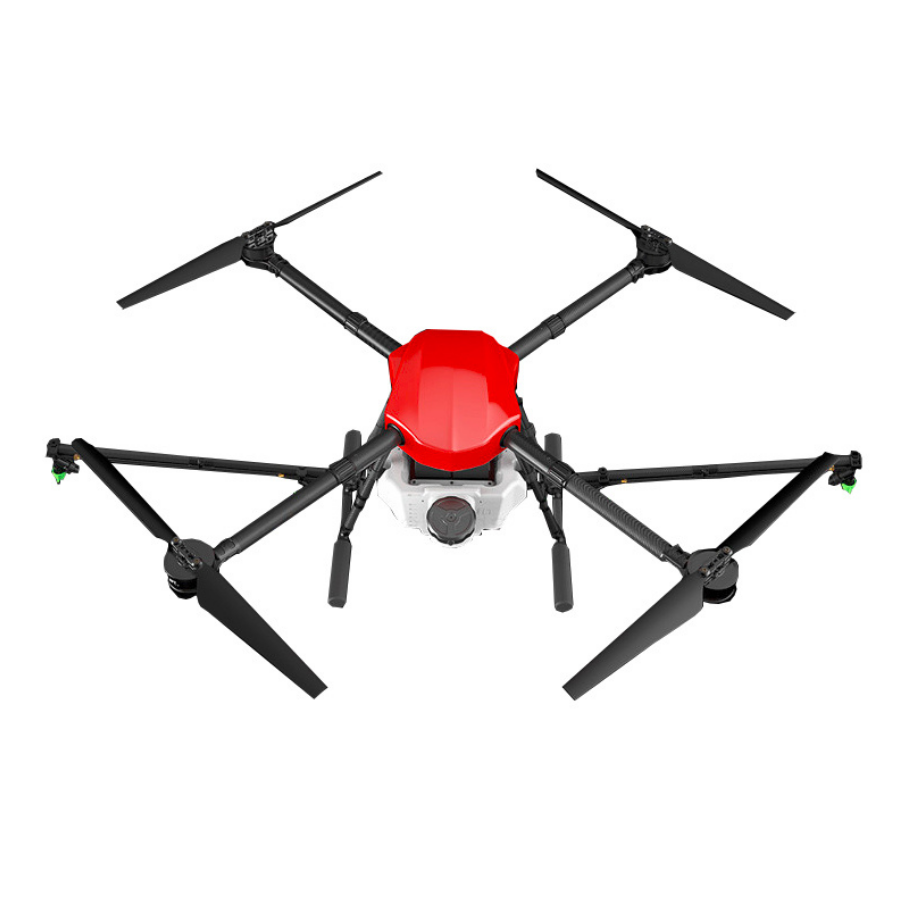

What Is a Quadcopter Drone?

A quadcopter has four arms, each carrying a brushless motor and propeller.

Two motors rotate clockwise (CW), while the other two rotate counter-clockwise (CCW).

This arrangement balances the torque generated by the motors.

Basic Quadcopter Layout

                 Front

           Motor 1       Motor 2
             CW             CCW
               \           /
                \         /
                 \       /
               ┌───────────┐
               │  Flight   │
               │ Controller│
               └───────────┘
                 /       \
                /         \
               /           \
           Motor 4       Motor 3
             CCW            CW

                  Rear

Main Components of a Drone Kit

A typical DIY quadcopter kit contains the following components.

Component	Quantity
Drone Frame	1
Brushless Motors	4
ESCs	4
Flight Controller	1
Propellers	4
LiPo Battery	1
Power Distribution Board (PDB)	1
Radio Transmitter	1
Radio Receiver	1
Battery Charger	1

---

Drone Frame

The drone frame provides the mechanical structure.

It holds:

• Motors

• Flight controller

• ESCs

• Battery

• Receiver

Frames are commonly available in sizes such as:

• 250 mm

• 330 mm

• 450 mm

• 550 mm

For beginners, a medium-sized frame is generally easier to assemble and more forgiving than very small racing frames.

Product link suggestion: Link the words Drone Frame Kit to your Electro Robo Store product page.

Brushless DC Motors

Quadcopters use brushless DC motors (BLDC motors) because they provide:

• High efficiency

• Good power-to-weight ratio

• Long service life

• Smooth operation

Each motor spins one propeller.

Motor Rotation

Motor	Direction
Motor 1	Clockwise
Motor 2	Counter-clockwise
Motor 3	Clockwise
Motor 4	Counter-clockwise

The alternating rotation directions help cancel the reaction torque.

Product link suggestion: Brushless Drone Motor.

---

Electronic Speed Controller (ESC)

An ESC controls the speed of a brushless motor.

The flight controller sends a control signal to each ESC.

The ESC converts battery power into the three-phase drive needed by the motor.

Flight Controller
       │
       ▼
      ESC
       │
       ▼
Brushless Motor

Each motor requires its own ESC.

Product link suggestion: Drone ESC.

Flight Controller

The flight controller is the brain of the drone.

It reads sensor data and controls the motors.

Typical functions include:

• Stabilization

• Motor mixing

• Angle control

• Rate control

• Failsafe handling

• Receiver input processing

Common flight controllers include boards based on STM32 microcontrollers.

Product link suggestion: Drone Flight Controller.

LiPo Battery

Most hobby drones use Lithium Polymer (LiPo) batteries because they provide high current output while remaining relatively lightweight.

Common battery configurations include:

• 3S (11.1 V nominal)

• 4S (14.8 V nominal)

• 6S (22.2 V nominal)

For a beginner build, a battery should be selected based on the motors, ESCs, and frame rather than simply choosing the highest voltage.

Product link suggestion: LiPo Battery.

Radio Transmitter and Receiver

The transmitter is the handheld controller used by the pilot.

The receiver is mounted on the drone.

The receiver sends commands to the flight controller.

Typical control channels are:

Channel	Function
Throttle	Up/Down
Roll	Left/Right tilt
Pitch	Forward/Backward
Yaw	Rotate left/right

---

Complete Block Diagram

                    Radio Transmitter
                           │
                           ▼
                    Radio Receiver
                           │
                           ▼
                  ┌─────────────────┐
                  │ Flight Controller│
                  │ Gyro + Acceler. │
                  └─────┬───┬───┬───┘
                        │   │   │   │
                       ESC ESC ESC ESC
                        │   │   │   │
                        ▼   ▼   ▼   ▼
                       M1  M2  M3  M4
                        │   │   │   │
                       Propellers

Battery
   │
   ▼
Power Distribution Board
   │
   ├──── ESC 1
   ├──── ESC 2
   ├──── ESC 3
   └──── ESC 4

Electrical Connections

Battery Connections

LiPo Battery
     │
     ▼
Power Distribution Board
     │
 ┌───┼───┬───┐
 ▼   ▼   ▼   ▼
ESC1 ESC2 ESC3 ESC4
 │    │    │    │
M1   M2   M3   M4

Signal Connections

Receiver
    │
    ▼
Flight Controller
    │
 ┌──┼──┬──┐
 ▼  ▼  ▼  ▼
ESC1 ESC2 ESC3 ESC4

The flight controller receives commands from the radio receiver and sends motor commands to the ESCs.

How the Drone Flies

Hover

All four motors produce nearly equal thrust.

M1 ↑
M2 ↑
M3 ↑
M4 ↑

The drone remains approximately level.

Move Forward

The rear motors increase thrust while the front motors decrease thrust slightly.

The drone tilts forward and moves ahead.

Move Backward

The opposite adjustment is made.

Roll Right

The left-side motors increase thrust while the right-side motors reduce thrust.

The drone tilts right.

Yaw

Clockwise and counter-clockwise motor pairs change speed relative to each other, creating a net rotational torque around the vertical axis.

Assembly Steps

Step 1: Assemble the Frame

• Join the arms.

• Tighten all screws.

• Ensure the frame is rigid.

Step 2: Mount the Motors

Install one motor at the end of each arm.

Do not install propellers yet.

Step 3: Install the ESCs

Secure one ESC on each arm.

Connect each ESC to its motor.

Step 4: Install the Power Distribution Board

Mount the PDB in the center of the frame.

Connect the battery leads.

Connect all ESC power leads to the PDB.

Step 5: Mount the Flight Controller

Place it in the center of the frame.

Ensure the arrow on the board points toward the front of the drone.

Use vibration-damping pads if provided.

Step 6: Connect the Receiver

Connect the radio receiver to the flight controller.

Bind it with the transmitter.

Step 7: Configure the Flight Controller

Using the appropriate configuration software:

• Select frame type (Quad X).

• Calibrate the accelerometer.

• Check receiver channels.

• Verify motor order.

• Verify motor direction.

• Configure failsafe settings.

Step 8: Install Propellers

Only after all electronics have been checked:

• Install CW propellers on CW motors.

• Install CCW propellers on CCW motors.

Flight Controller Setup Checklist

Before the first flight, verify:

• Frame type is Quad X.

• Flight controller is mounted in the correct orientation.

• Receiver channels move correctly.

• Throttle is calibrated if required.

• Accelerometer is calibrated.

• Motor order matches the configuration.

• Motor directions are correct.

• Propellers are installed correctly.

• Battery is fully charged.

• Failsafe is configured.

Specifications Example

Parameter	Example
Frame	450 mm quadcopter frame
Motors	4 × brushless motors
ESC	4 × 30A ESC
Battery	3S LiPo
Flight Controller	STM32-based controller
Propellers	10-inch CW/CCW
Control	2.4 GHz radio
Flight Time	Depends on battery and payload

Actual specifications vary depending on the components selected.

Common Problems

Drone Does Not Arm

Check:

• Battery connection.

• Receiver binding.

• Throttle position.

• Flight controller status.

• Failsafe settings.

Drone Flips Immediately

Usually caused by:

• Wrong motor order.

• Incorrect motor rotation.

• Incorrect propeller placement.

One Motor Does Not Spin

Check:

• ESC connection.

• Motor wires.

• ESC signal wire.

• Flight controller output.

Drone Vibrates

Possible causes:

• Bent propeller.

• Loose motor screws.

• Unbalanced propeller.

• Loose frame.

Safety Tips

• Remove propellers while configuring the electronics.

• Never hold the drone while testing the motors.

• Use a LiPo-compatible charger.

• Do not puncture or over-discharge LiPo batteries.

• Keep spectators away during testing.

• Perform the first flight in an open area.

• Inspect the frame, motors, and propellers before every flight.

Applications

DIY quadcopters are used for:

• STEM education

• Robotics learning

• Electronics projects

• College mini projects

• Research

• Aerial photography (with suitable equipment)

• Autonomous navigation experiments

• Drone programming practice

Products Required From Electro Robo Store

Make each product name clickable to the corresponding product page:

• Quadcopter Drone Frame

• Brushless Drone Motor

• 30A Electronic Speed Controller (ESC)

• Drone Flight Controller

• CW and CCW Propellers

• LiPo Battery

• Power Distribution Board

• Radio Transmitter and Receiver

• LiPo Battery Charger

This creates useful internal links between your blog and your products, helping readers find the components needed to build the project.

Conclusion

Building a DIY quadcopter drone kit is an excellent project for understanding the relationship between mechanical design, electronics, sensors, motor control, and wireless communication.

The flight controller continuously reads the pilot's commands and onboard sensor data, then adjusts the speed of the four brushless motors through the ESCs to keep the drone stable and control its movement.

By assembling and configuring each component step by step, students and hobbyists can gain practical experience in drone technology, robotics, and embedded systems.
