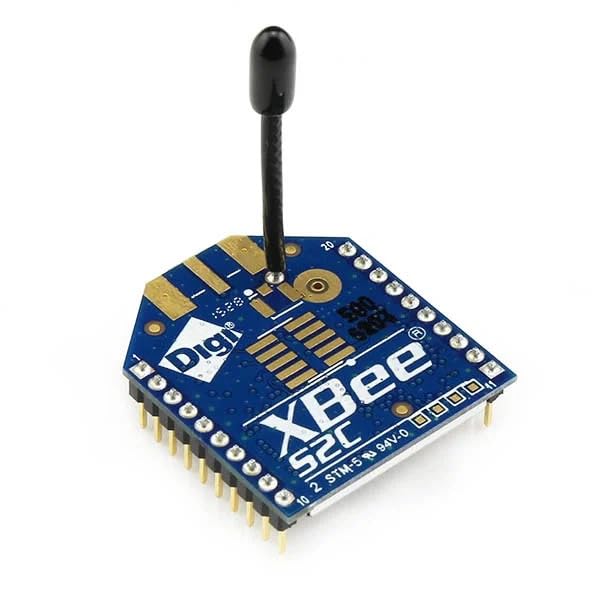

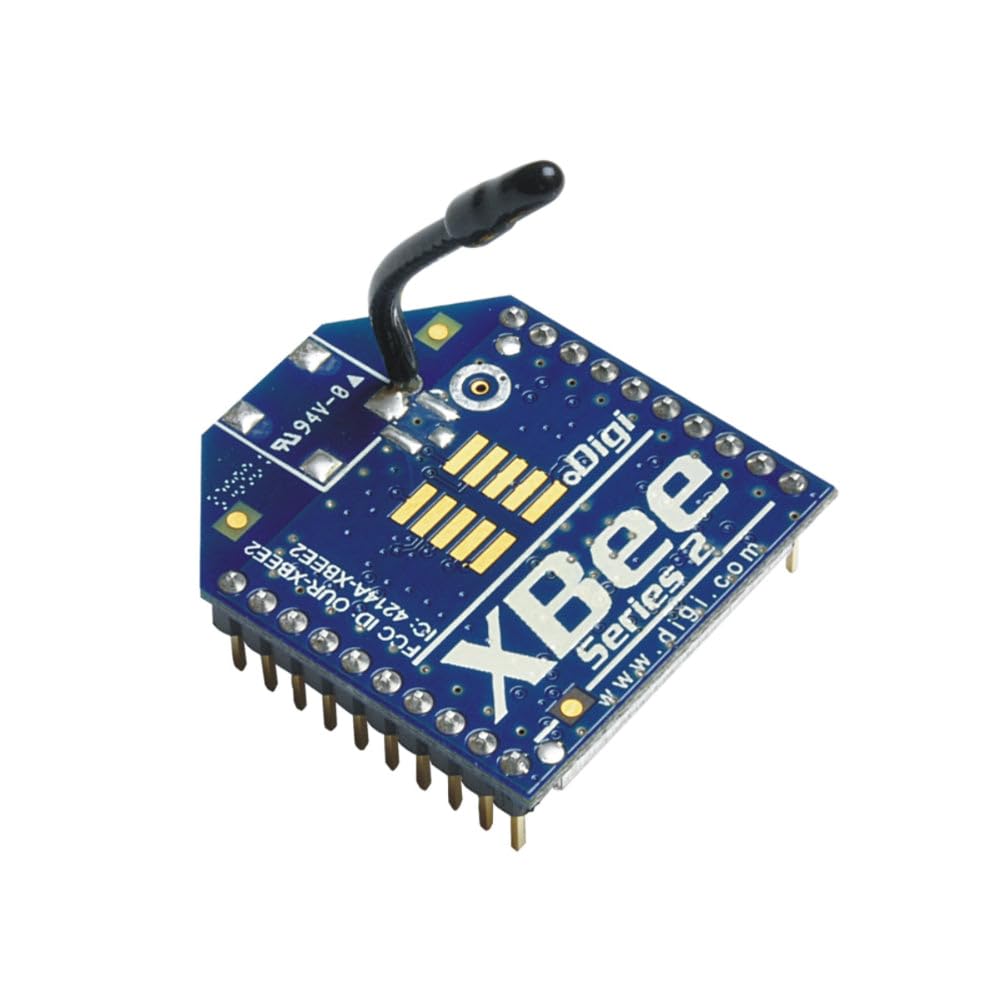

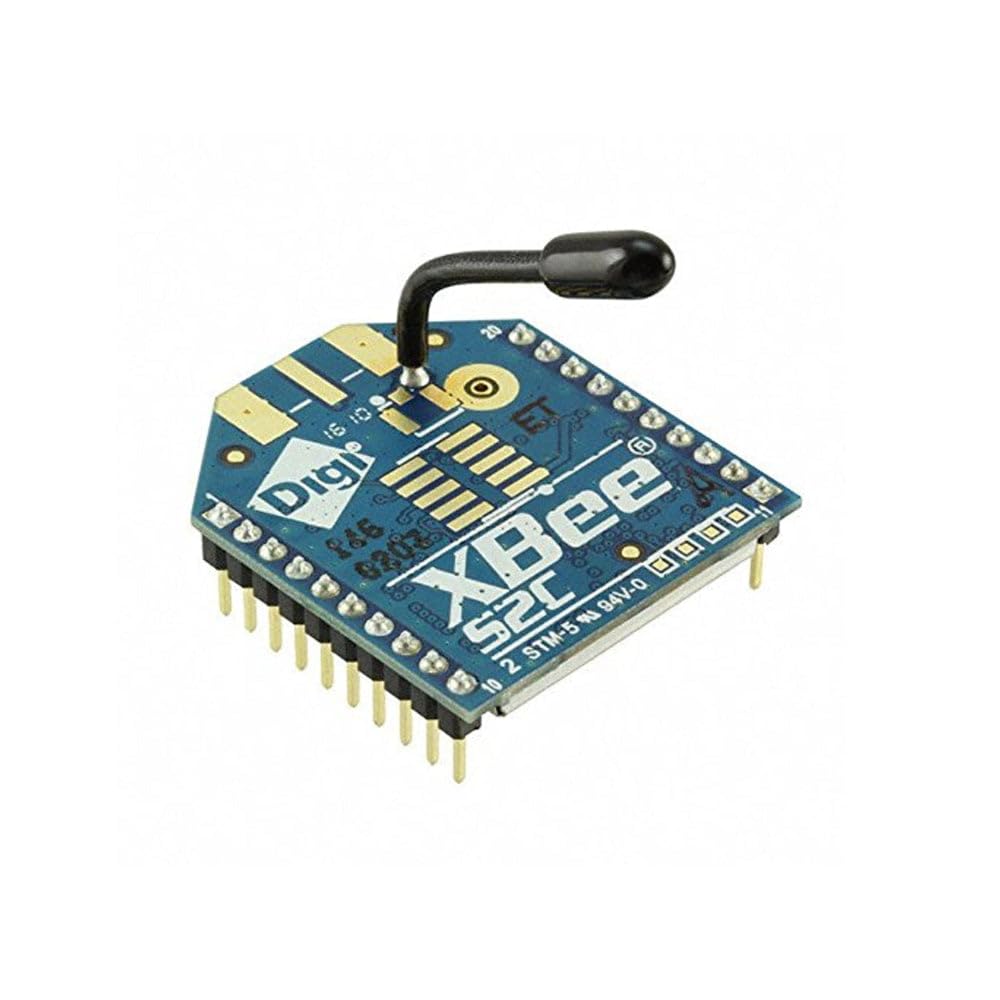

Zigbee XBee Module S2C 802.15.4 2mW

The Zigbee XBee Module S2C 802.15.4 2mW is a compact wireless communication module designed for reliable low-power data transmission in embedded systems, IoT devices, and automation applications. It is based on Zigbee and IEEE 802.15.4 wireless technology, providing a simple and efficient way to create wireless networks between microcontrollers, sensors, and other electronic devices.

The XBee S2C module operates in the 2.4 GHz frequency band and provides stable wireless communication with low power consumption. It can be easily interfaced with Arduino, Raspberry Pi, microcontrollers, and other development platforms through UART serial communication. The module allows devices to exchange data wirelessly without the need for complex wiring, making it suitable for remote monitoring and control applications.

This module supports point-to-point, point-to-multipoint, and mesh networking configurations, allowing multiple devices to communicate with each other over a large area. The 2mW transmission power provides reliable communication range while maintaining low energy usage, making it ideal for battery-powered applications.

Features

• Based on IEEE 802.15.4 and Zigbee wireless technology
• 2.4 GHz frequency operation
• 2mW RF output power
• Low power consumption design
• Supports point-to-point and mesh networking
• UART serial communication interface
• Easy integration with Arduino, Raspberry Pi, and microcontrollers
• Reliable wireless data transmission
• Compact and lightweight design
• Suitable for IoT and automation projects

Technical Specifications

Module Type: XBee S2C Wireless Module
Wireless Standard: IEEE 802.15.4 / Zigbee
Frequency Range: 2.4 GHz
Transmit Power: 2mW
Communication Interface: UART Serial Communication
Operating Voltage: 3.3V DC
Network Support: Point-to-Point, Point-to-Multipoint, Mesh Network
Data Rate: Up to 250 kbps
Communication Range: Depends on environment and antenna type
Power Consumption: Low Power Operation

Working Principle

The Zigbee XBee S2C module communicates by transmitting and receiving wireless data packets through the 2.4 GHz radio frequency band. A microcontroller sends data to the XBee module through the UART interface. The module converts this data into RF signals and transmits it wirelessly to another XBee device. The receiving module captures the signal, converts it back into digital data, and sends it to the connected controller.

Multiple XBee modules can be connected together to create wireless networks for sensor monitoring, automation, and control systems. The mesh networking capability allows data to travel through multiple nodes, improving communication reliability and coverage.

Applications

• IoT wireless communication projects
• Home automation systems
• Industrial automation
• Wireless sensor networks
• Remote monitoring systems
• Smart energy management
• Robotics projects
• Agricultural monitoring systems
• Security and surveillance systems
• Arduino and Raspberry Pi wireless communication

Advantages

The Zigbee XBee Module S2C 802.15.4 2mW provides a reliable and easy-to-use wireless communication solution for electronic projects. Its low power consumption, flexible networking options, and simple serial interface make it suitable for both hobby and professional applications. It helps reduce wiring complexity and enables efficient wireless data exchange between multiple devices.
