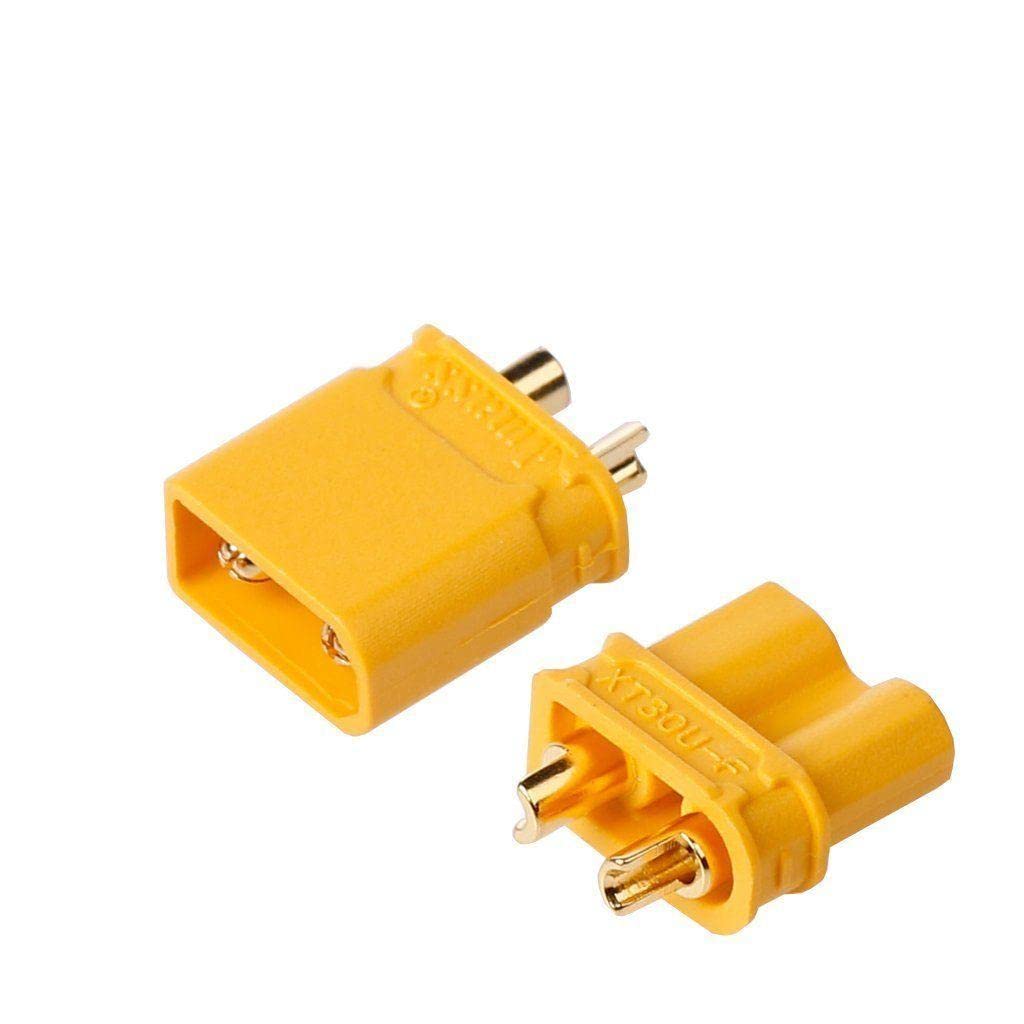

XT30 Male and Female Connector Pair

The XT30 Male and Female Connector Pair is a high-quality electrical connector set designed to provide safe, secure, and efficient power connections for batteries, electronic devices, and power distribution systems. It consists of one XT30 male connector and one XT30 female connector, making it ideal for creating reliable plug-and-socket connections in RC models, drones, robotics, and various DIY electronics projects.

Manufactured using high-temperature nylon housing and gold-plated brass contacts, XT30 connectors offer excellent electrical conductivity, low contact resistance, and superior mechanical strength. The gold-plated terminals ensure efficient current transfer while minimizing power loss and heat generation, making the connectors suitable for continuous high-current operation.

The XT30 connector is designed to handle currents up to 30A and supports DC voltages up to 500V, making it suitable for low- to medium-power electronic systems. Its compact size and lightweight construction make it particularly popular in applications where space and weight are important considerations, such as drones, RC aircraft, quadcopters, robots, and portable battery-powered devices.

The connectors use a solder-type connection, allowing wires to be permanently attached to the terminals for maximum electrical reliability. The precisely molded housing ensures a tight-fitting connection that resists vibration and accidental disconnection during operation.

The XT30 connector pair is widely used with LiPo (Lithium Polymer) and Li-Ion (Lithium-Ion) battery packs because of its excellent current-carrying capability and dependable performance. Its durable construction provides a long service life even in demanding environments.

Working Principle

The XT30 connector provides a low-resistance electrical connection between a power source and an electronic device.

• The male and female connectors are securely connected together.

• Gold-plated brass terminals establish a low-resistance electrical path.

• Electrical current flows efficiently between the battery and the connected device.

• The tight locking fit prevents accidental disconnection during operation.

• The high-temperature nylon housing provides insulation and protects the electrical contacts.

Key Features

• High-quality XT30 male and female connector pair

• Current rating up to 30A

• Voltage rating up to 500V DC

• Gold-plated brass contacts for excellent conductivity

• High-temperature nylon housing

• Low electrical resistance for efficient power transfer

• Secure and vibration-resistant connection

• Compact and lightweight design

• Easy soldering for wire attachment

• Durable construction for long service life

• Reliable performance in demanding applications

Applications

The XT30 Male and Female Connector Pair is commonly used in:

• RC cars

• RC airplanes

• Racing drones

• Quadcopters

• LiPo battery connections

• Lithium-ion battery packs

• Robotics projects

• Arduino and embedded systems

• DIY electronics projects

• Battery charging systems

• Power distribution boards

• Portable electronic equipment

• Educational electronics projects

Specifications

• Product Type: XT30 Connector Pair

• Connector Type: Male and Female

• Material: High-temperature nylon housing with gold-plated brass contacts

• Current Rating: Up to 30A

• Voltage Rating: Up to 500V DC

• Connection Type: Solder Type

• Color: Yellow
