XT30 Connector Male-Female Pair

The XT30 Connector Male-Female Pair is a high-quality electrical power connector designed to provide a secure, low-resistance, and reliable connection for DC power applications. It is widely used in RC (Radio Control) models, drones, quadcopters, robotics, battery packs, electronic speed controllers (ESCs), lithium polymer (LiPo) batteries, power distribution systems, DIY electronics, and embedded systems. The XT30 connector is known for its compact size, excellent current-handling capability, and dependable performance in high-current applications.

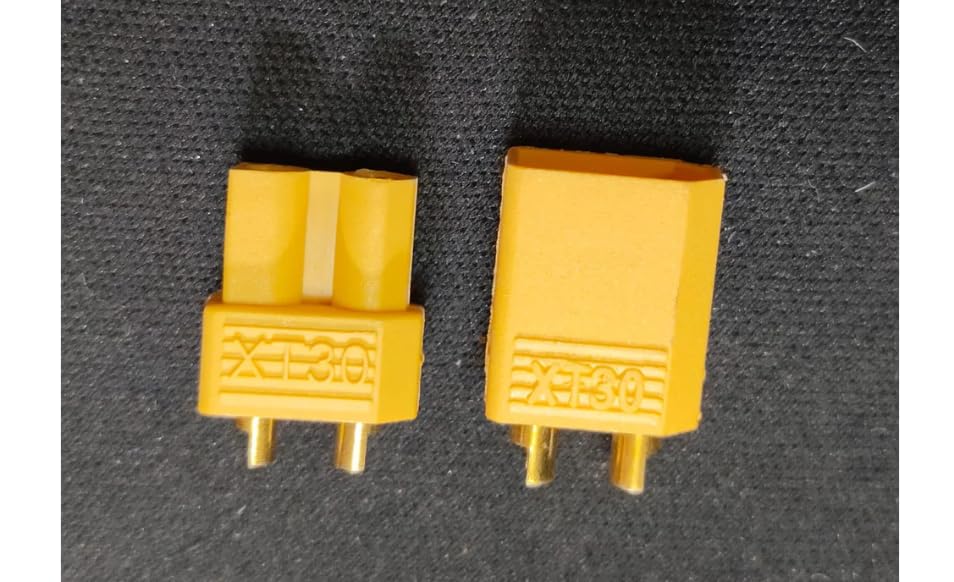

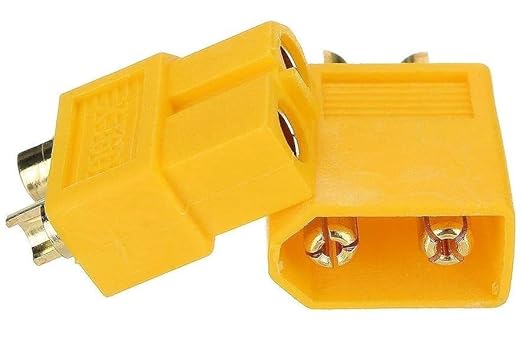

The XT30 connector consists of one male connector and one female connector, each featuring gold-plated brass contacts enclosed in a durable high-temperature nylon (PA) housing. The gold-plated terminals provide excellent electrical conductivity, low contact resistance, and superior corrosion resistance, while the nylon housing offers high mechanical strength, heat resistance, flame resistance, and electrical insulation.

The working principle of the XT30 Connector is based on secure mechanical and electrical contact. The male connector contains two gold-plated bullet pins, while the female connector contains matching spring-loaded sockets. When the connectors are plugged together, the spring contacts apply firm pressure to the bullet pins, creating a low-resistance electrical connection capable of carrying high current with minimal power loss. The polarized housing ensures that the connectors can only be connected in the correct orientation, preventing accidental reverse polarity connections.

The XT30 connector is commonly rated for continuous currents of up to 30A, with higher peak current capability for short durations, depending on the manufacturer and wire size. It is suitable for low-voltage DC power systems and is frequently used with 2S, 3S, 4S, and other LiPo battery packs, battery chargers, power distribution boards, and portable electronic devices.

The connector supports a wide range of wire gauges, typically 16 AWG to 20 AWG, allowing users to select appropriate wiring based on the current requirements of their application. Proper soldering of the wires to the gold-plated terminals ensures maximum electrical performance and mechanical reliability.

The applications of the XT30 Connector Male-Female Pair include RC airplanes, drones, quadcopters, racing drones, robotics, battery packs, LiPo batteries, electronic speed controllers (ESCs), power distribution boards, portable electronics, embedded systems, IoT devices, educational electronics, engineering projects, laboratory equipment, prototype development, model vehicles, electric toys, and DIY power supply circuits.

The advantages of the XT30 Connector include compact size, high current capacity, low contact resistance, gold-plated terminals, secure polarized design, excellent electrical conductivity, high-temperature nylon housing, vibration-resistant connection, reliable locking fit, corrosion resistance, long service life, easy soldering, and compatibility with a wide range of battery-powered electronic systems.

In conclusion, the XT30 Connector Male-Female Pair is a durable, compact, and highly reliable DC power connector designed for safe and efficient power transmission in battery-powered electronic systems. Its gold-plated contacts, high-temperature nylon housing, secure polarized design, and excellent current-carrying capability make it an ideal connector for drones, robotics, RC models, embedded systems, automation projects, and educational electronics.
