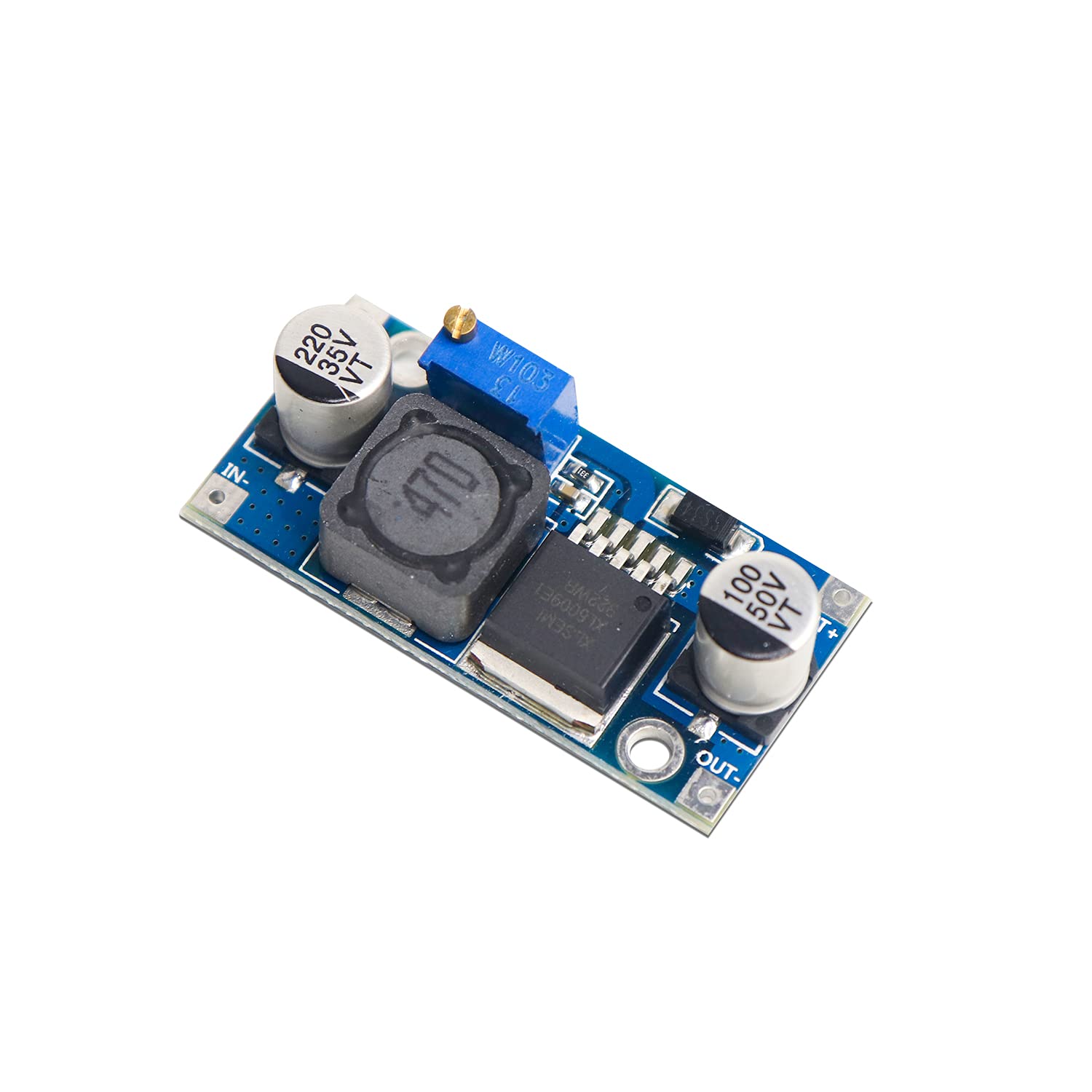

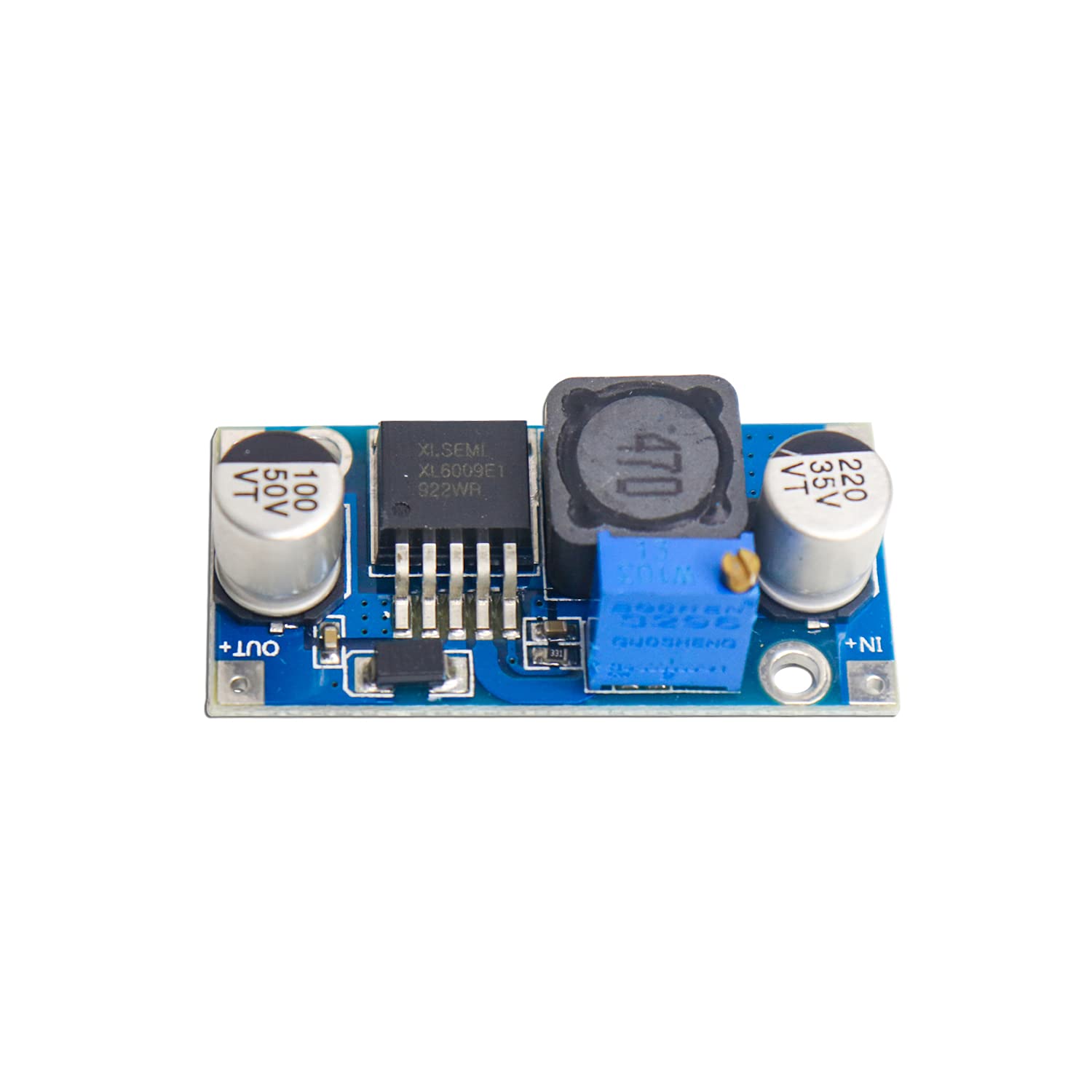

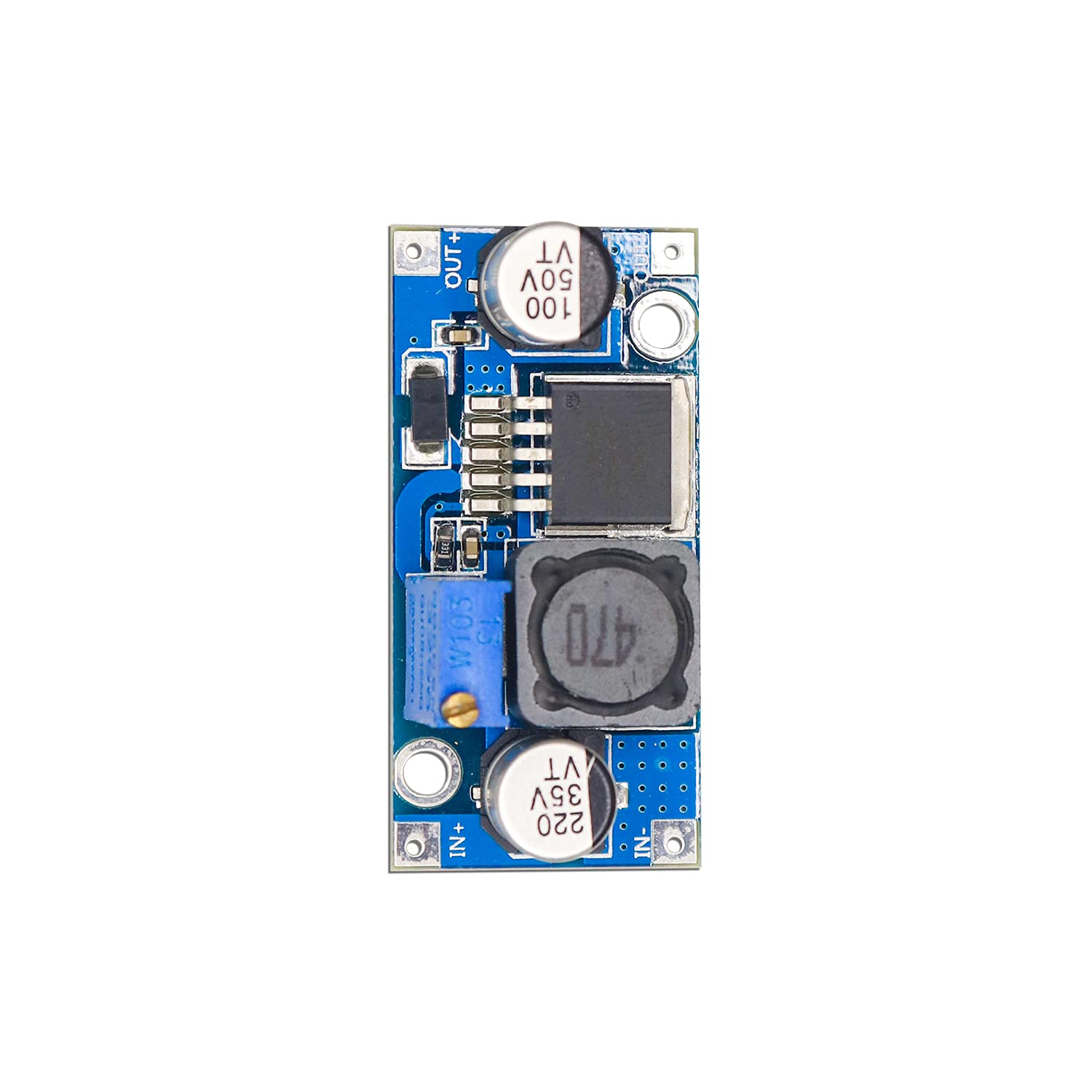

XL6009 Step Up Module

The XL6009 Step Up Module is a high-efficiency DC-to-DC boost converter designed to increase a lower DC input voltage into a higher adjustable DC output voltage. Based on the powerful XL6009 switching regulator IC, this module is widely used in electronics, embedded systems, robotics, IoT devices, battery-powered applications, automation systems, and DIY electronics projects where stable voltage boosting is required.

A step-up converter, also known as a boost converter, is an electronic power conversion circuit that raises the input voltage to a higher output voltage while maintaining efficient power transfer. The XL6009 module supports a wide input voltage range, typically from 3V to 32V DC, making it suitable for operation with lithium-ion batteries, lead-acid batteries, solar panels, DC adapters, and portable power systems.

The module provides an adjustable output voltage that can usually be configured from approximately 5V up to 35V DC using the onboard multi-turn potentiometer. The output voltage must always remain higher than the input voltage because the module functions specifically as a boost converter. This adjustable output capability allows the module to support a wide variety of electronic devices and embedded applications.

The working principle of the XL6009 module is based on high-frequency switching regulation. The onboard XL6009 IC rapidly switches current through an inductor, storing energy in the magnetic field and releasing it at a higher voltage. This switching process efficiently converts low-voltage input power into higher-voltage output power with minimal energy loss.

One of the major advantages of the XL6009 Step Up Module is its high conversion efficiency, which can reach approximately 94% under proper operating conditions. High efficiency helps reduce heat generation, improve battery life, and minimize power loss in portable and energy-sensitive systems.

The module generally includes a built-in high-power MOSFET capable of handling peak currents of up to approximately 4A, with continuous current output typically around 2A to 3A depending on cooling conditions and load requirements. For high-current applications or continuous heavy loads, proper ventilation or additional heatsinks are recommended to maintain stable operation.

The XL6009 operates at a high switching frequency of around 400 kHz, allowing the use of smaller inductors and capacitors. This high-frequency operation helps reduce overall module size while improving voltage regulation and response performance.

The module includes clearly labeled terminals for easy interfacing:

Input Positive (IN+)

Input Negative (IN−)

Output Positive (OUT+)

Output Negative (OUT−)

This simple wiring arrangement makes the module easy to integrate into breadboards, prototyping systems, custom PCBs, and embedded electronic projects.

The onboard multi-turn potentiometer allows precise voltage adjustment. Users can rotate the potentiometer carefully while monitoring the output voltage using a multimeter to achieve the desired voltage level for their application.

The XL6009 Step Up Module is commonly used with battery-powered systems where higher operating voltages are needed from lower-voltage sources. For example, it can boost 3.7V lithium battery output to 5V, 9V, 12V, or higher voltages required for electronic circuits, displays, sensors, and microcontroller systems.

The module is fully compatible with popular development platforms such as:

Arduino Uno R3

Arduino Nano

ESP32

ESP8266 NodeMCU

Raspberry Pi

STM32

PIC microcontrollers

AVR development boards

Because of its high efficiency and adjustable voltage output, the XL6009 module is widely used in:

Arduino and embedded projects

Battery-powered electronics

Portable power supplies

LED driver circuits

Solar-powered systems

Robotics and automation

IoT devices

Wireless sensor networks

DIY electronics

Industrial prototypes

USB power boosters

Smart home systems

In robotics applications, the module is frequently used to provide stable operating voltages for motors, sensors, controllers, and wireless communication modules. Its compact design allows easy integration into mobile robots and portable automation systems.

In IoT and wireless electronics, the XL6009 is often used to boost battery voltage to stable levels required for WiFi modules, GSM modules, Bluetooth devices, and sensor systems. This helps maintain reliable system operation even when battery voltage drops during discharge.

The module is also widely used in LED lighting systems where higher voltages are needed to drive LED strips, high-power LEDs, or portable lighting solutions efficiently.

Educational institutions frequently use the XL6009 module for teaching DC-DC conversion, switching regulators, power electronics, and embedded system design. Its simple operation and visible voltage adjustment process make it highly useful for practical electronics learning.

Another important advantage of the XL6009 module is its compact and lightweight PCB design, making it suitable for portable devices and space-constrained electronics systems. Despite its small size, the module provides strong performance and stable voltage regulation.

Proper cooling is important when operating the module under high-current conditions. Extended operation near maximum current limits may generate heat, and additional cooling methods such as heatsinks or airflow can improve long-term reliability.

Overall, the XL6009 Step Up Module is a reliable, efficient, and versatile DC-DC boost converter designed for modern electronics and embedded applications. Its wide input voltage range, adjustable high-voltage output, compact design, high efficiency, strong current capability, and compatibility with popular microcontroller platforms make it an excellent solution for robotics, IoT systems, battery-powered electronics, automation projects, and DIY engineering applications. Whether used in portable power systems, smart devices, LED applications, or embedded electronics projects, the XL6009 module delivers dependable voltage boosting performance with excellent flexibility and efficiency.
