XH-W1209 Digital Temperature Control Switch Module

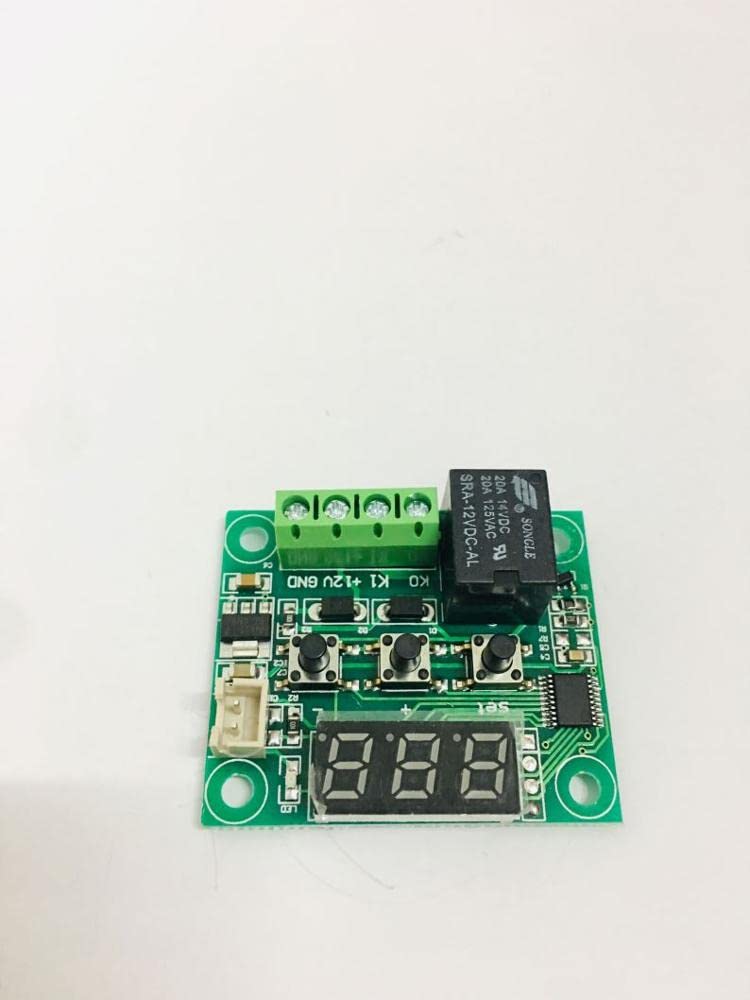

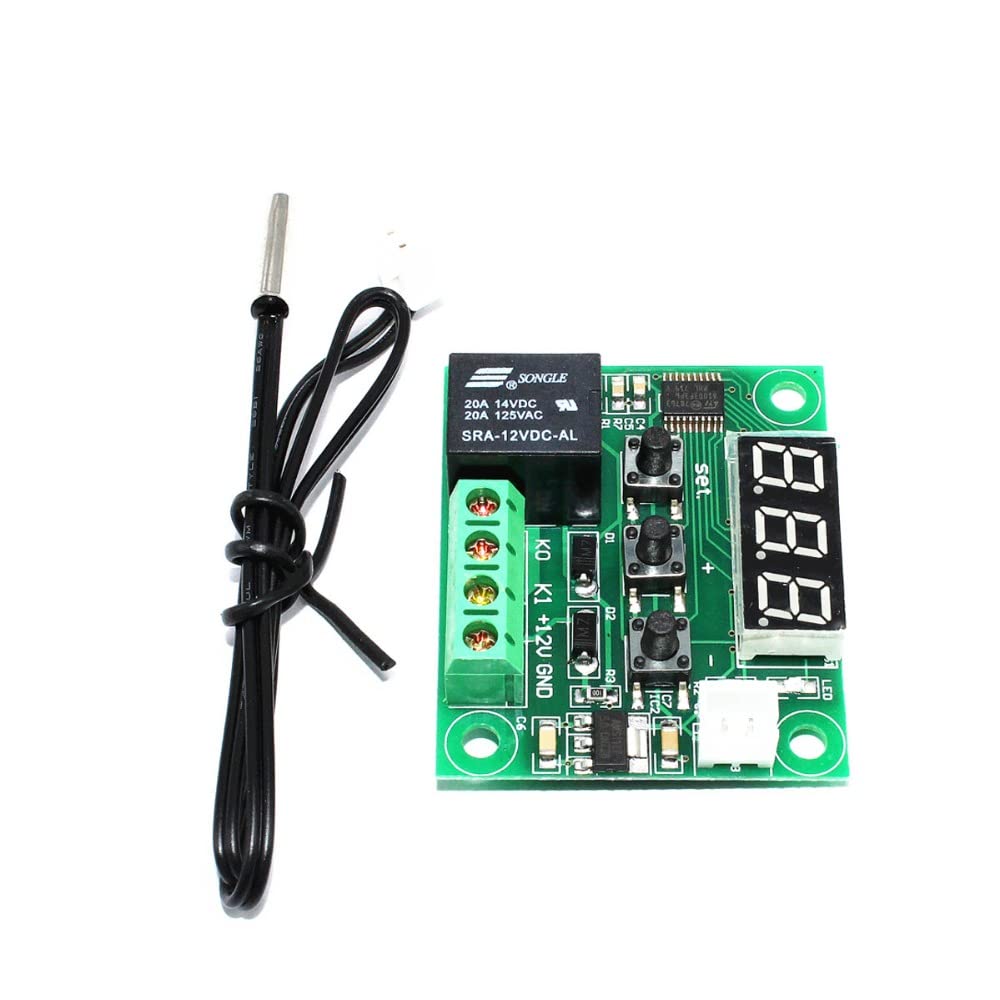

The XH-W1209 Digital Temperature Control Switch Module is a compact and intelligent thermostat controller designed for precise temperature monitoring and automatic temperature control in a wide range of heating and cooling applications. The module features a high-accuracy NTC temperature sensor, a bright three-digit LED display, and an onboard relay that automatically switches connected electrical loads based on user-defined temperature settings. Operating from a 12V DC power supply, the XH-W1209 provides a temperature measurement range of approximately -50°C to +110°C with a control resolution of 0.1°C and adjustable hysteresis, allowing stable and accurate temperature regulation while preventing frequent relay switching. The module includes three push buttons for easy configuration of parameters such as target temperature, differential value, calibration offset, delay start, and heating or cooling operating modes, making it simple to customize for various applications.

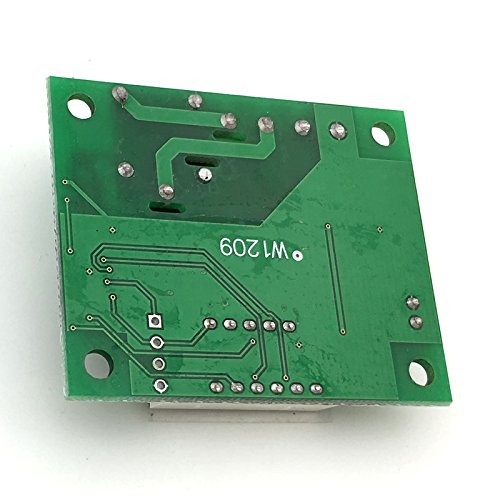

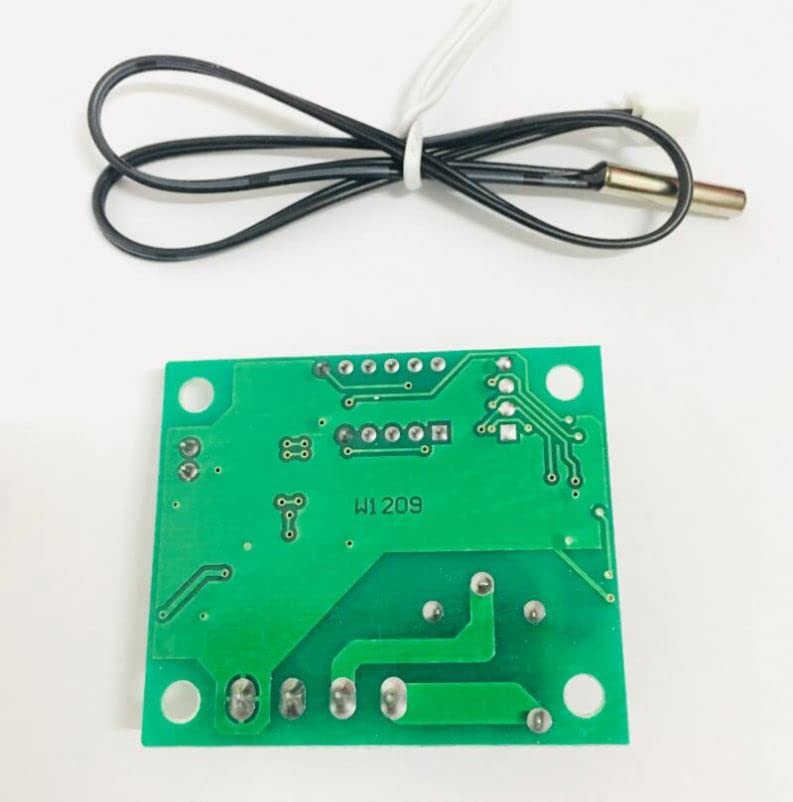

The onboard relay supports switching external devices such as heaters, cooling fans, water pumps, compressors, solenoid valves, and other electrical equipment within its rated capacity. The high-quality NTC waterproof temperature probe provides fast response, reliable temperature measurement, and long-term stability in demanding environments. The module incorporates power-on delay protection, temperature calibration, sensor fault detection, memory retention of settings after power loss, and over-temperature monitoring, ensuring dependable and safe operation. Its compact PCB design with clearly labeled terminals allows quick installation into control panels, DIY projects, and industrial equipment while minimizing wiring complexity.

The XH-W1209 Digital Temperature Control Switch Module is widely used in incubators, refrigerators, freezers, aquariums, water heaters, fermentation systems, greenhouses, HVAC equipment, temperature-controlled storage, food processing equipment, industrial automation, laboratory instruments, battery temperature monitoring, electronic cooling systems, 3D printer enclosures, server cabinet cooling, home brewing, smart agriculture, environmental monitoring, home automation, educational projects, and embedded control systems. Compatible with a wide range of heating and cooling devices, this module provides an economical and reliable solution for automatic temperature regulation. Its accurate sensing, user-friendly programming interface, stable relay operation, and compact design make the XH-W1209 an excellent choice for students, hobbyists, technicians, engineers, and professionals seeking an efficient digital temperature control solution for residential, commercial, and industrial applications.
