WS2812 RGB LED Ring Lamp (1 Pc)

The WS2812 RGB LED Ring Lamp (1 Pc) is a compact circular LED lighting module that features individually addressable WS2812B RGB LEDs arranged in a ring. Each LED contains an integrated RGB LED and an intelligent driver IC, enabling independent control of every LED using a single digital data line. The module is widely used in Arduino projects, robotics, IoT devices, wearable electronics, smart lighting, decorative lighting, interactive displays, educational electronics, and DIY projects.

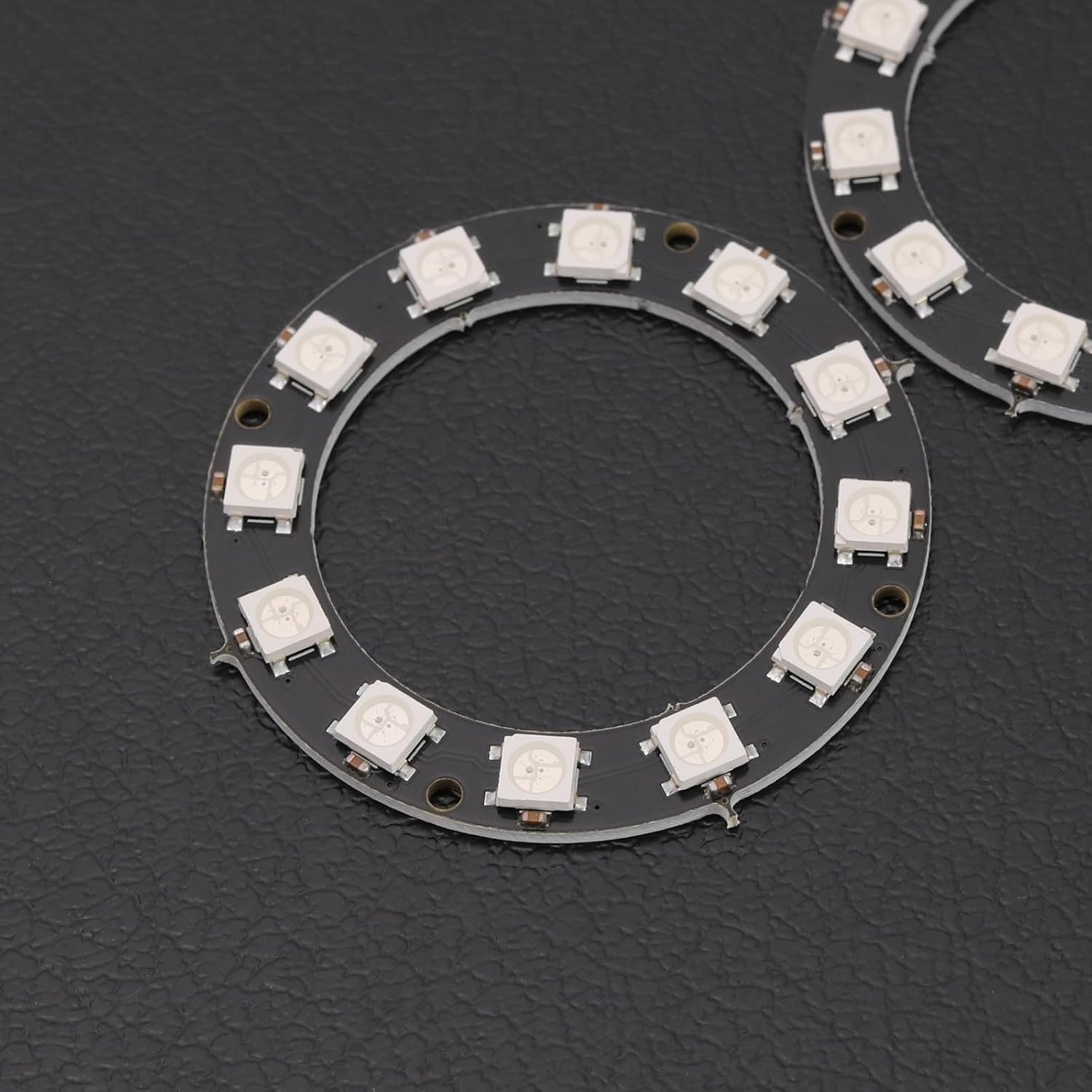

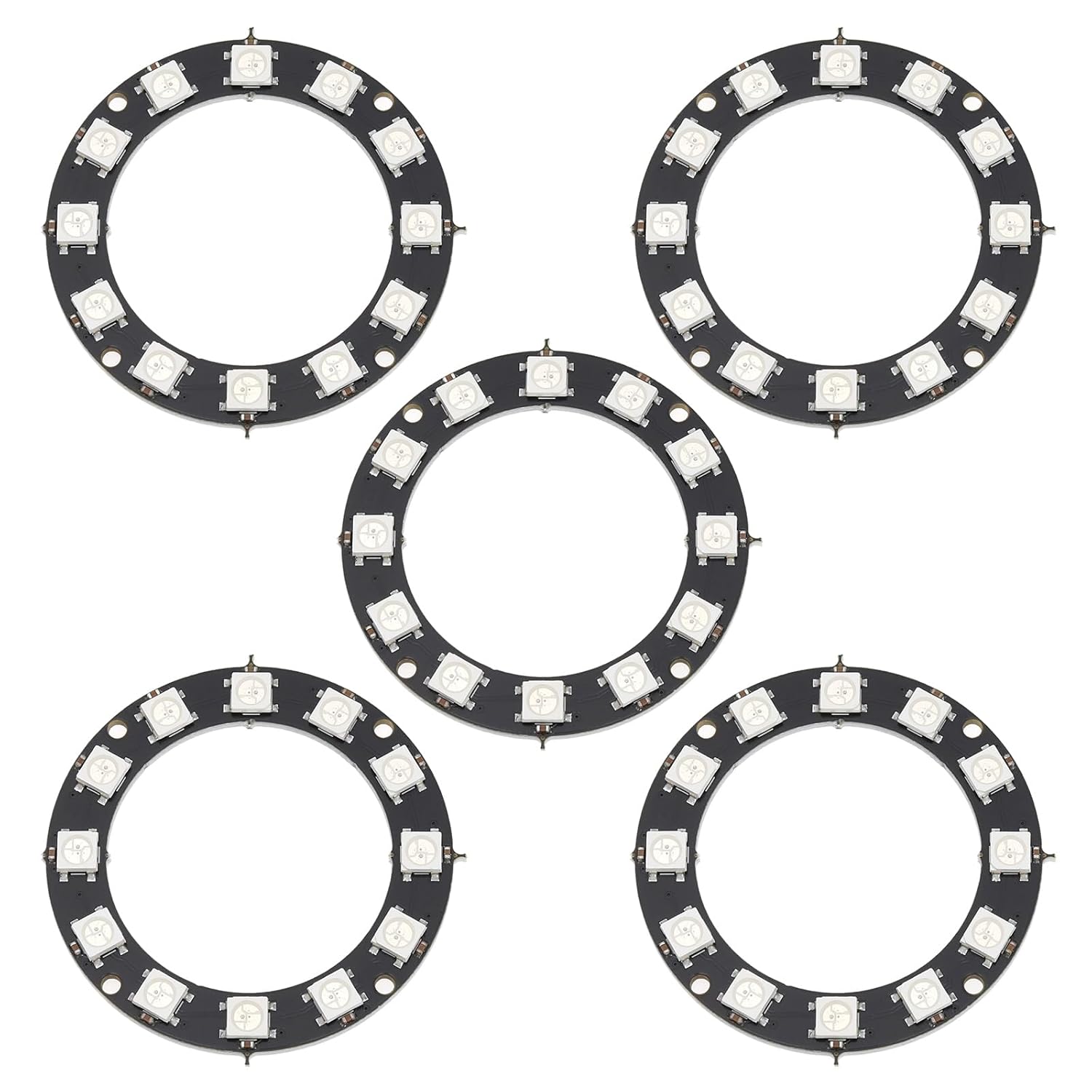

The LED ring is manufactured on a high-quality FR4 printed circuit board (PCB) and includes WS2812B 5050 RGB LEDs, onboard intelligent driver ICs, copper conductive traces, power and ground connections, Data Input (DIN) and Data Output (DOUT) pins, bypass capacitors, and mounting holes for easy installation. Multiple LED rings can be connected together in a daisy-chain configuration to create larger lighting systems.

The working principle of the WS2812 RGB LED Ring Lamp is based on single-wire serial communication. A compatible microcontroller or LED controller sends digital data through the DIN pin. Each WS2812B LED receives a 24-bit color value (8 bits each for Red, Green, and Blue), displays the assigned color, and forwards the remaining data to the next LED through the DOUT pin. This allows every LED on the ring to display different colors and brightness levels independently, creating dynamic lighting effects and animations.

Typical specifications include:

• Product Type: RGB LED Ring Lamp

• LED Model: WS2812B

• LED Package: 5050 SMD RGB LED

• Configuration: Circular LED Ring

• Quantity: 1 Piece

• Operating Voltage: 5V DC

• Communication Interface: Single-Wire Digital Serial

• Control Signal: Data Input (DIN)

• Data Output: DOUT (Daisy Chain Support)

• Color Depth: 24-bit (8-bit Red, 8-bit Green, 8-bit Blue)

• Maximum Colors: 16.7 Million Colors

• PCB Material: FR4

• Mounting: Mounting Holes for Easy Installation

• Power Consumption: Low Power (depends on LED brightness)

The module supports numerous lighting effects, including:

• Static Colors

• Rainbow Effects

• Color Chasing

• Rotating Ring Effects

• Running Lights

• Breathing Effects

• Fade In / Fade Out

• Flashing Patterns

• Pulse Effects

• Brightness Control

• Custom RGB Animations

• Music Synchronization (with compatible controller)

The WS2812 RGB LED Ring Lamp is compatible with:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• Teensy Development Boards

• FastLED Library

• Adafruit NeoPixel Library

The applications of the WS2812 RGB LED Ring Lamp include robotics, IoT systems, smart lighting, wearable electronics, digital clocks, circular status indicators, decorative lighting, gaming projects, home automation, interactive displays, educational electronics, engineering prototypes, laboratory experiments, embedded systems, art installations, event decorations, holiday lighting, and DIY electronics.

The advantages of the LED ring include individual LED control, support for 16.7 million colors, single-wire communication, compact circular design, high brightness, easy programming, low wiring complexity, daisy-chain capability, low power consumption, reliable operation, and long service life.
