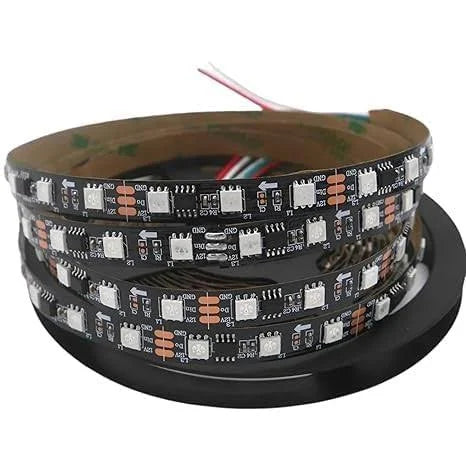

WS2811 12V RGB Addressable Pixel LED Strip (5 Meter) – Without Power Supply/Controller

The WS2811 12V RGB Addressable Pixel LED Strip (5 Meter) is a digitally addressable RGB LED strip that allows individual control of LED groups to create dynamic lighting effects such as color chasing, rainbow patterns, animations, scrolling text, and decorative lighting. The strip operates from a 12V DC power supply and uses the WS2811 LED driver IC to control each LED group independently. This version includes only the 5-meter LED strip and does not include a power supply or controller, allowing users to choose a compatible controller based on their project requirements.

The LED strip is manufactured using a flexible printed circuit board (PCB) populated with high-brightness RGB SMD LEDs, WS2811 driver ICs, current-limiting resistors, copper traces, waterproof or non-waterproof protective coating (depending on the model), adhesive backing, and power/data connection wires. The flexible PCB allows easy installation on flat or curved surfaces.

The working principle of the WS2811 RGB Addressable LED Strip is based on digital serial communication. The controller sends a continuous stream of digital data through a single data line to the first WS2811 driver IC. Each WS2811 IC reads its assigned data, controls its corresponding LED group, and forwards the remaining data to the next IC. This enables independent control of each LED group, allowing complex lighting patterns, animations, brightness control, and millions of color combinations.

Unlike analog RGB LED strips, the WS2811 Addressable LED Strip allows each LED group to display a different color simultaneously, creating advanced visual effects.

Typical specifications include:

• Product Type: Digital RGB Addressable LED Strip

• Model: WS2811

• Length: 5 Meters

• Operating Voltage: 12V DC

• LED Type: RGB SMD LEDs

• Driver IC: WS2811

• Control Method: Single-Wire Digital Signal

• Color: Full RGB (16.7 Million Colors)

• Brightness Control: Supported

• Cuttable: Yes (at designated cutting points)

• Flexible PCB: Yes

• Mounting: Self-Adhesive Backing

• Power Supply: Not Included

• Controller: Not Included

The strip supports various lighting effects, including:

• Static Colors

• Rainbow Effects

• Color Chasing

• Running Lights

• Breathing Effects

• Flashing Patterns

• Fade In/Fade Out

• Music Synchronization (with compatible controller)

• Custom Animations

• Programmable Lighting Effects

The WS2811 12V RGB Addressable LED Strip is compatible with:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• FastLED Library

• Adafruit NeoPixel Library (with compatible configuration)

• Dedicated WS2811 LED Controllers

• DMX Controllers (with compatible interface)

The applications of the WS2811 12V RGB Addressable Pixel LED Strip (5 Meter) include decorative lighting, home automation, smart lighting systems, gaming room lighting, TV backlighting, architectural lighting, stage lighting, advertising displays, signboards, automotive lighting, PC case lighting, robotics, IoT projects, embedded systems, educational electronics, engineering projects, prototype development, event decoration, holiday lighting, and DIY electronics.

The advantages of the LED strip include individually addressable LED groups, millions of color combinations, programmable lighting effects, low power consumption, flexible installation, easy integration with microcontrollers, high brightness, compact design, self-adhesive backing, cuttable sections for customization, and long operational life.

Safety Precautions

• Use a regulated 12V DC power supply with sufficient current capacity.

• Observe correct polarity when connecting the power supply.

• Connect the data input to the correct DIN (Data In) terminal.

• Do not exceed the recommended supply voltage.

• Avoid sharply bending or twisting the strip.

• Ensure adequate power injection for long installations to prevent voltage drop.

• Keep the strip dry unless it is specifically rated as waterproof.

• Disconnect power before cutting or modifying the strip.

Note: This product is supplied without a power supply and without a controller. A compatible 12V DC power supply and WS2811-compatible controller or microcontroller are required for operation.

In conclusion, the WS2811 12V RGB Addressable Pixel LED Strip (5 Meter) is a versatile and programmable digital lighting solution that offers individually controllable LED groups, vibrant RGB colors, and advanced animation capabilities. Its compatibility with popular microcontrollers, flexible design, and wide range of applications make it an excellent choice for smart lighting, robotics, IoT systems, architectural lighting, entertainment, educational electronics, and DIY engineering projects.
