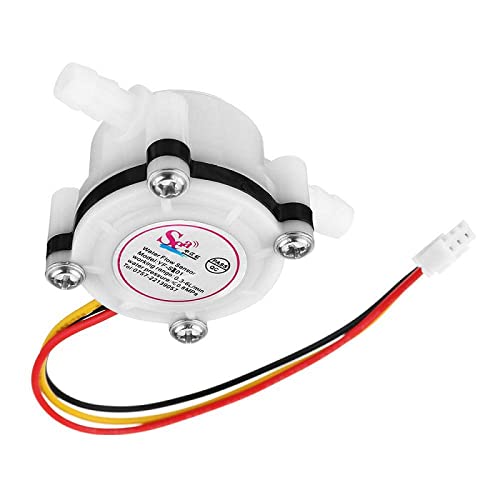

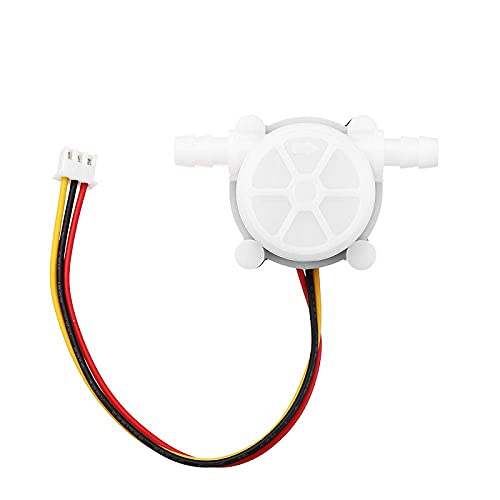

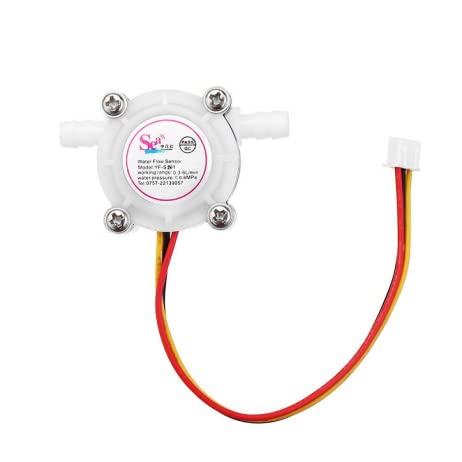

Water Flow Sensor YFS401

the yfs401 water flow sensor is a compact and reliable electronic sensor designed to measure the flow rate and quantity of water or other clean liquids passing through a pipe or tube. it is widely used in water monitoring systems, irrigation systems, industrial equipment, beverage dispensers, automation projects, and diy electronics applications where accurate liquid flow measurement is required.

the sensor operates using a hall effect sensing mechanism combined with a small internal rotor or paddle wheel. when water flows through the sensor body, the moving liquid causes the internal rotor to spin. a small magnet attached to the rotor passes near the hall effect sensor during rotation, generating electrical pulse signals.

the frequency of these pulses is directly proportional to the speed of water flow. by counting the number of pulses over a specific time period, a microcontroller such as arduino, esp32, raspberry pi, stm32, or other embedded systems can calculate:

• flow rate in liters per minute

• total water volume passed through the sensor

• liquid usage and consumption data

the sensor typically uses a simple three-wire interface:

• red wire for power supply

• black wire for ground connection

• yellow wire for pulse signal output

the yfs401 generally operates at 5v dc and produces digital pulse signals that can be read easily using interrupt pins or digital inputs of microcontrollers.

one of the major advantages of the yfs401 sensor is its low-cost and easy-to-use design, making it highly suitable for educational, hobby, and practical automation projects. its compact body also allows simple installation in water pipelines and fluid control systems.

the sensor is commonly used in:

• water dispensing systems

• smart irrigation systems

• industrial liquid monitoring

• water usage measurement systems

• automatic filling systems

• iot-based fluid monitoring projects

• diy electronics and automation projects

• home water management systems

• laboratory liquid measurement systems

because the pulse output is proportional to flow rate, software calibration is often performed to improve measurement accuracy according to pipe size, liquid type, and operating conditions.

the yfs401 is designed mainly for clean water and non-corrosive liquids and performs best under low to medium pressure and moderate temperature conditions. it is not typically recommended for dirty, highly viscous, or chemically aggressive fluids.

the durable plastic housing and sealed sensor structure provide reliable operation and long service life under normal operating conditions.

overall, the yfs401 water flow sensor is an efficient, accurate, and easy-to-interface liquid flow measurement solution that provides pulse-based flow monitoring for water management, automation systems, iot applications, industrial equipment, and embedded electronics projects.
