Voltage Tester

A Voltage Tester is a handheld electrical testing tool used to detect the presence or absence of electrical voltage in wires, sockets, switches, outlets, terminals, and electrical equipment. It helps electricians, technicians, engineers, and DIY users safely determine whether a circuit is live before performing installation, maintenance, or repair work. Voltage testers are widely used in electrical installations, household wiring, industrial maintenance, electronic troubleshooting, educational laboratories, and engineering projects.

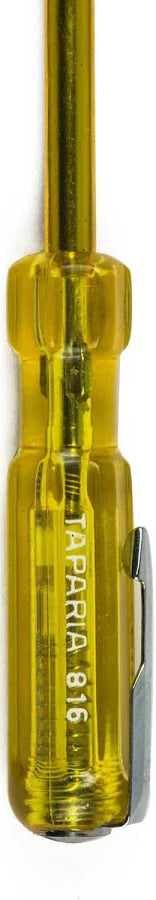

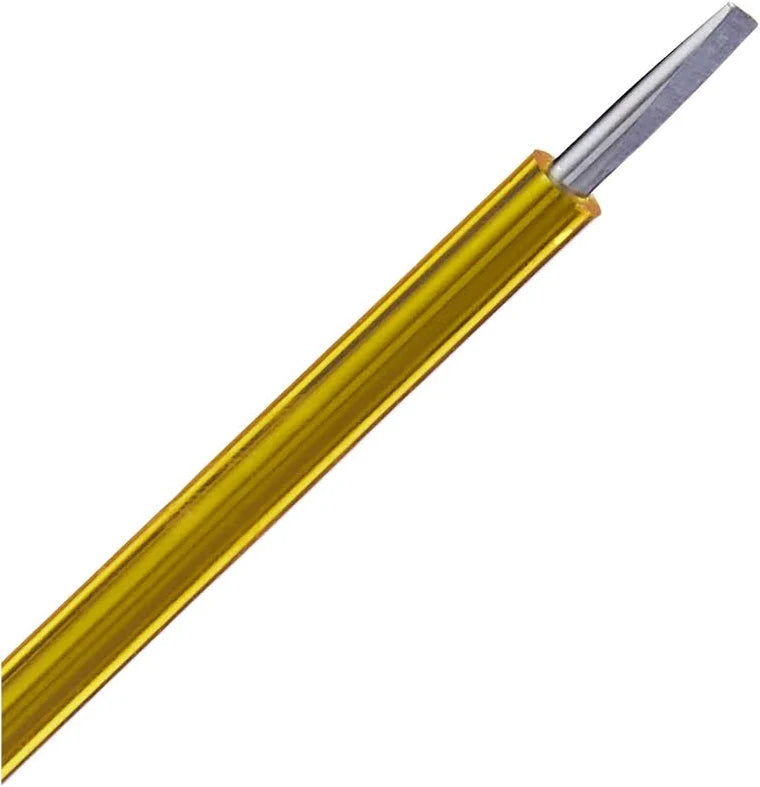

A typical voltage tester consists of an insulated handle, metal probe tip, internal voltage detection circuit, indicator lamp (LED or Neon Lamp), high-value resistor, protective insulation, and in some models, a battery-powered electronic circuit. The insulated body provides user safety while allowing accurate voltage detection.

The working principle of a Voltage Tester depends on its type. In a contact voltage tester, the metal probe touches the conductor or terminal being tested. If voltage is present, a small current passes through the internal high-resistance circuit, causing the LED or neon indicator to illuminate. In non-contact voltage testers, the tester senses the electric field around an energized conductor without making direct electrical contact, providing a safer method of detecting AC voltage.

Typical specifications include:

• Product Type: Voltage Tester

• Tool Type: Electrical Testing Tool

• Voltage Detection: AC Voltage (and DC voltage on some models)

• Detection Method: Contact or Non-Contact (depending on model)

• Indicator Type: LED Indicator or Neon Lamp

• Probe Material: Hardened Steel

• Handle Material: Insulated Plastic

• Safety Insulation: Yes

• Portable Design: Yes

The Voltage Tester can be used to check:

• AC Power Outlets

• Electrical Switches

• Distribution Boards

• Electrical Wires

• Circuit Breakers

• Terminal Blocks

• Extension Cords

• Power Cables

• Household Appliances

• Industrial Electrical Equipment

• Control Panels

• Electrical Connectors

The applications of the Voltage Tester include electrical installation, electrical maintenance, fault diagnosis, household wiring inspection, industrial equipment servicing, electronic repair, laboratory experiments, educational electronics, engineering projects, robotics, automation systems, prototype development, and DIY electrical work.

The advantages of the voltage tester include quick voltage detection, simple operation, lightweight design, portable size, reliable performance, improved electrical safety, durable construction, easy handling, low maintenance, and suitability for professional and home use.

Safety Precautions

• Always inspect the voltage tester before use.

• Use the tester only within its specified voltage range.

• Hold the tester by the insulated handle only.

• Never touch the metal probe during testing.

• Verify the tester on a known live circuit before and after use.

• Wear appropriate personal protective equipment (PPE) when working on electrical systems.

• Do not use a damaged or cracked tester.

• Store the tester in a clean and dry environment.
