DC Micro Vibration Motor

The DC Micro Vibration Motor is a compact electromechanical device designed to produce vibration by converting direct current (DC) electrical energy into mechanical vibration. It is widely used in mobile phones, wearable devices, medical equipment, gaming controllers, notification systems, robotics, security devices, and various electronic products that require haptic or vibration feedback. Due to its small size, low power consumption, and reliable operation, it is commonly used in embedded systems, IoT devices, and DIY electronics projects.

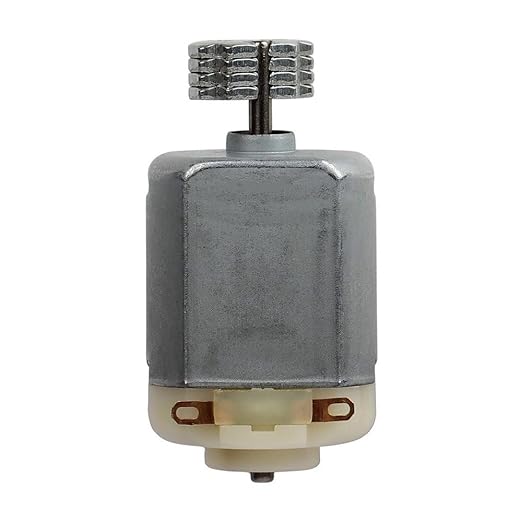

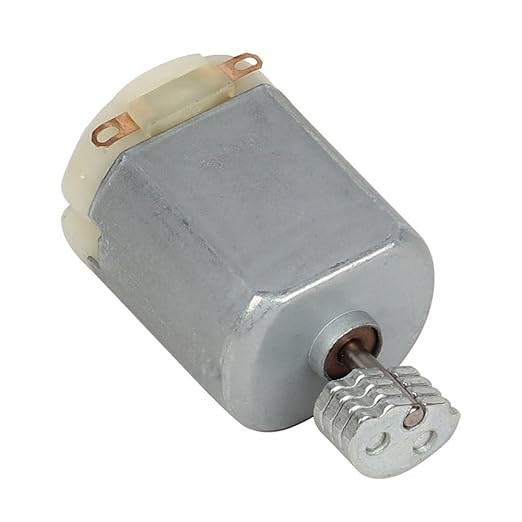

A DC Micro Vibration Motor typically consists of a miniature brushed DC motor, an eccentric rotating mass (ERM) attached to the motor shaft, permanent magnets, an armature (rotor), carbon brushes, a commutator, and a protective metal housing. The eccentric weight is intentionally mounted off-center on the motor shaft. As the motor rotates, the unbalanced weight creates centrifugal force, producing continuous vibration.

The working principle of the DC Micro Vibration Motor is based on electromagnetic induction and centrifugal force. When a DC voltage is applied to the motor terminals, electric current flows through the armature windings, generating a magnetic field. This magnetic field interacts with the permanent magnets inside the motor, causing the rotor to spin at high speed. Since the eccentric weight is mounted away from the center of the shaft, its rotation creates an unbalanced centrifugal force that generates vibration. The vibration continues as long as power is supplied, and its intensity generally increases with motor speed.

DC Micro Vibration Motors typically operate with 1.5V to 5V DC, depending on the model, making them suitable for battery-powered devices and low-power electronic systems. They can be controlled directly using batteries or through transistor circuits, MOSFETs, relay modules, or motor driver circuits. Microcontrollers such as Arduino, ESP32, ESP8266, STM32, PIC, AVR, and Raspberry Pi (using a suitable driver) can control the motor using digital outputs or Pulse Width Modulation (PWM) to adjust the vibration intensity.

The motor is available in different shapes, including coin-type, cylindrical, and bar-type vibration motors. Coin vibration motors are commonly used in smartphones and wearable electronics, while cylindrical motors are frequently used in DIY projects and embedded systems.

The applications of the DC Micro Vibration Motor include mobile phones, smartwatches, fitness bands, gaming controllers, wearable devices, medical equipment, alarm systems, silent notification devices, robotics, automation systems, electronic toys, haptic feedback systems, security devices, portable electronics, educational electronics, prototype development, and IoT projects.

The advantages of the DC Micro Vibration Motor include compact size, lightweight construction, low power consumption, fast response, simple operation, reliable performance, easy integration with microcontrollers, long service life, low maintenance, quiet operation, and compatibility with battery-powered devices. Its small size allows it to be easily installed in space-constrained applications.

In conclusion, the DC Micro Vibration Motor is a compact and efficient actuator that generates vibration using an eccentric rotating mass driven by a miniature DC motor. Its reliable performance, low power consumption, and compatibility with a wide range of electronic systems make it an ideal component for haptic feedback, notification systems, robotics, wearable devices, embedded systems, and educational electronics projects.
