ULN2003 Stepper Motor Driver Board

The ULN2003 Stepper Motor Driver Board is a compact motor driver module designed to control unipolar stepper motors, especially the popular 28BYJ-48 5V stepper motor. It is based on the ULN2003A Darlington transistor array IC, which amplifies the low-current control signals from a microcontroller into higher-current signals capable of driving the motor coils safely. The board is widely used in Arduino projects, robotics, automation systems, educational electronics, CNC prototypes, camera sliders, laboratory experiments, and DIY electronics.

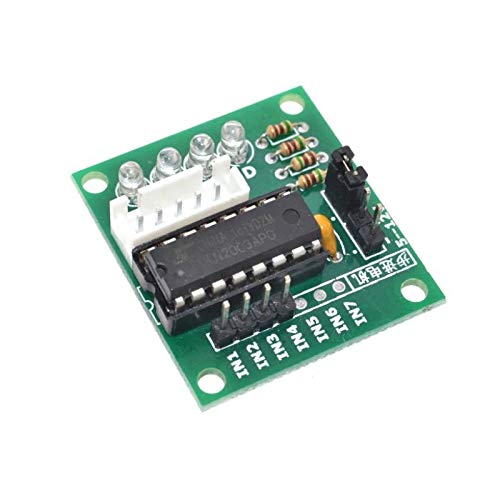

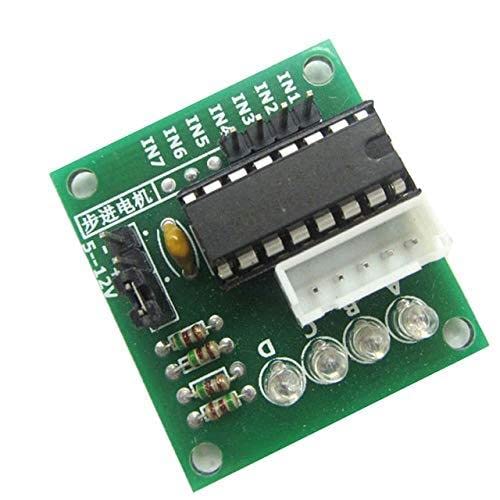

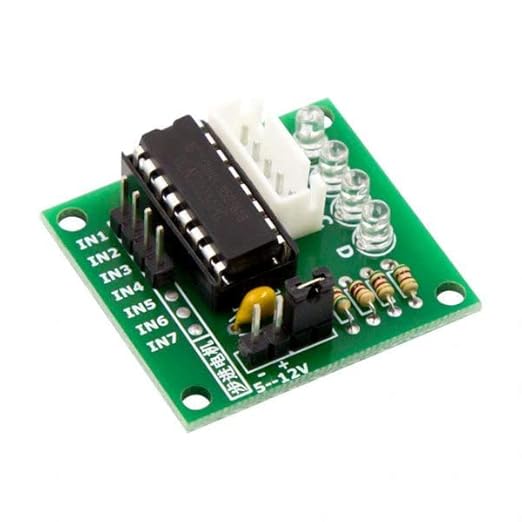

The module consists of a ULN2003A driver IC, 4 input control pins (IN1–IN4), a 5-pin motor connector for the 28BYJ-48 stepper motor, power input pins (VCC and GND), four LED indicators that display the active motor phases, flyback protection diodes integrated inside the IC, and a compact printed circuit board (PCB). The onboard LEDs help users observe the stepping sequence during motor operation.

The working principle of the ULN2003 Stepper Motor Driver Board is based on transistor switching. A microcontroller sends digital control signals to the IN1, IN2, IN3, and IN4 input pins. The ULN2003A IC amplifies these signals using its internal Darlington transistor pairs and sequentially energizes the motor coils. By switching the coils in the correct order, the magnetic field inside the stepper motor rotates, causing the motor shaft to move one step at a time. The rotation direction and speed depend on the sequence and frequency of the input pulses generated by the microcontroller.

The driver board is typically powered with a 5V DC supply when used with the 28BYJ-48 stepper motor, although some versions can support 5V to 12V DC depending on the connected motor and module design. It provides sufficient current to drive small unipolar stepper motors while protecting the microcontroller from excessive current.

The ULN2003A IC includes seven Darlington transistor channels, each capable of driving inductive loads. It also contains built-in flyback (freewheeling) diodes that absorb the reverse voltage generated when motor coils are switched off, protecting both the driver IC and the microcontroller from voltage spikes.

The module is fully compatible with popular development boards such as Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi (through GPIO), STM32, PIC, and AVR microcontrollers. It is supported by many programming libraries, making it easy for beginners and professionals to control stepper motors.

The LED indicators on the board illuminate according to the energized motor coils, allowing users to visually monitor the stepping sequence and troubleshoot wiring or programming issues.

The applications of the ULN2003 Stepper Motor Driver Board include robotic arms, robot cars, camera pan-tilt systems, camera sliders, CNC prototypes, 3D printer prototypes, conveyor mechanisms, automatic curtain systems, valve control, precision positioning systems, educational robotics, STEM education, laboratory experiments, automation projects, embedded systems, IoT devices, engineering projects, and DIY electronics.

The advantages of the ULN2003 Stepper Motor Driver Board include simple operation, compact size, low cost, easy interfacing with microcontrollers, built-in protection diodes, onboard LED indicators, reliable motor control, low power consumption, plug-and-play compatibility with the 28BYJ-48 stepper motor, durable construction, and wide support in educational and hobby electronics.

In conclusion, the ULN2003 Stepper Motor Driver Board is a reliable, easy-to-use, and cost-effective driver module for controlling small unipolar stepper motors. Its integrated ULN2003A driver IC, built-in protection circuitry, LED status indicators, and compatibility with popular microcontrollers make it an ideal choice for robotics, automation, embedded systems, educational electronics, and precision motion control projects.
