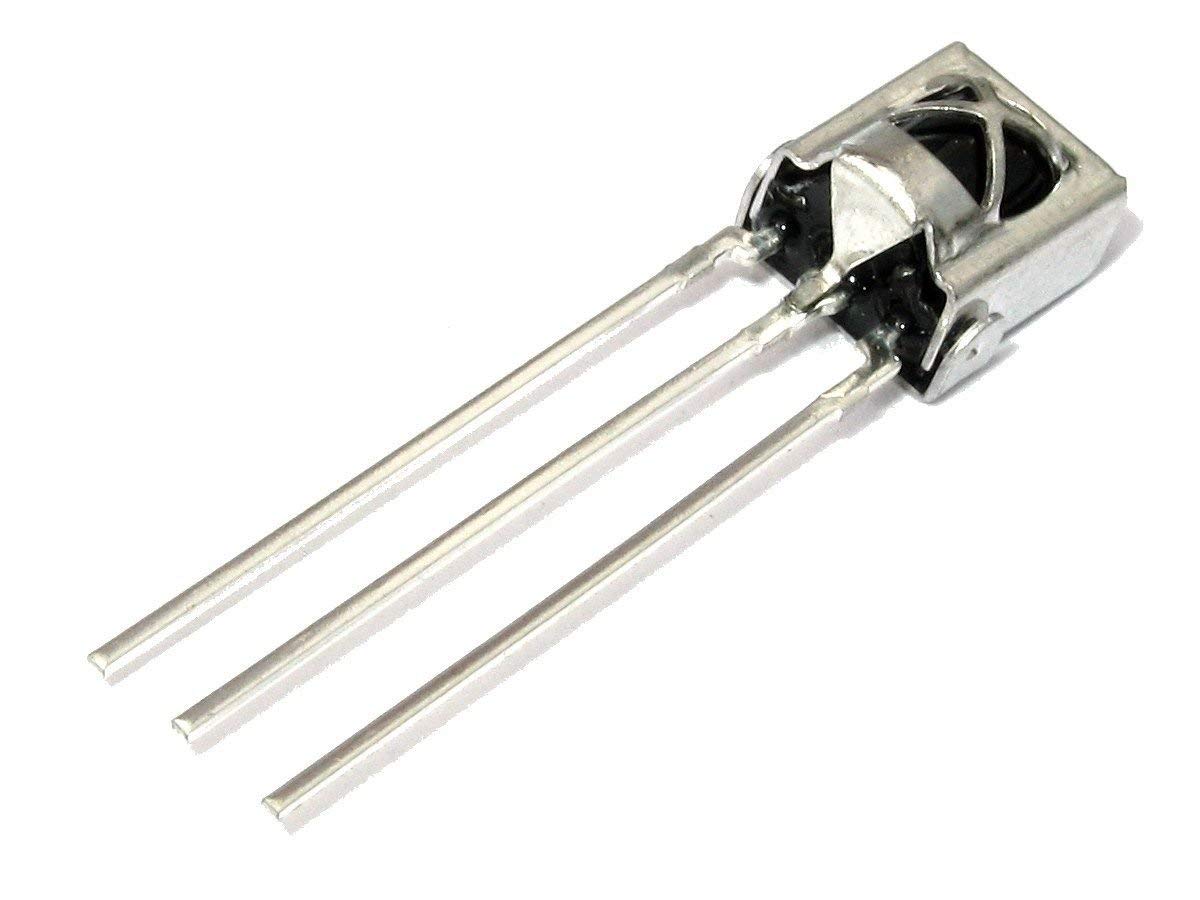

TSOP1838B 3-Pin Infrared (IR) Receiver Sensor (Pack of 5)

The TSOP1838B 3-Pin Infrared (IR) Receiver Sensor (Pack of 5) is a high-performance infrared receiver module designed to detect and decode 38kHz modulated infrared signals transmitted by IR remote controls and other infrared communication devices. It integrates a photodiode, preamplifier, automatic gain control (AGC), band-pass filter, and demodulator into a compact three-pin package, providing reliable and noise-resistant IR signal reception for embedded systems and electronic projects.

The TSOP1838B is specifically tuned to receive 38kHz carrier frequency infrared signals, making it compatible with most consumer IR remote controls. When an infrared signal is detected, the internal circuitry filters out ambient light and electrical noise, then demodulates the received signal into a clean digital output that can be processed directly by a microcontroller. This eliminates the need for additional signal conditioning circuits and ensures stable operation even under varying lighting conditions.

Operating from a 2.7V to 5.5V DC supply, the sensor features three terminals: VCC, GND, and OUT, making it simple to interface with development boards and embedded systems. The module provides a digital active-low output, where the output pin changes state upon receiving a valid 38kHz IR signal. Its low power consumption, compact size, and high sensitivity make it ideal for battery-powered and portable applications.

The TSOP1838B IR Receiver Sensor is fully compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, 8051, NodeMCU, and other microcontroller platforms. It works seamlessly with popular IR communication libraries, allowing easy implementation of remote control functions in electronic projects.

The TSOP1838B 3-Pin Infrared Receiver Sensor is widely used in IR remote control systems, home automation, consumer electronics, robotics, wireless control systems, smart appliances, security systems, educational STEM projects, laboratory experiments, and DIY electronics.

Features

• High-sensitivity infrared receiver

• Designed for 38kHz IR carrier frequency

• Built-in photodiode and signal amplifier

• Integrated AGC (Automatic Gain Control)

• Internal band-pass filter and demodulator

• Excellent immunity to ambient light and electrical noise

• Digital active-low output

• Operating voltage: 2.7V–5.5V DC

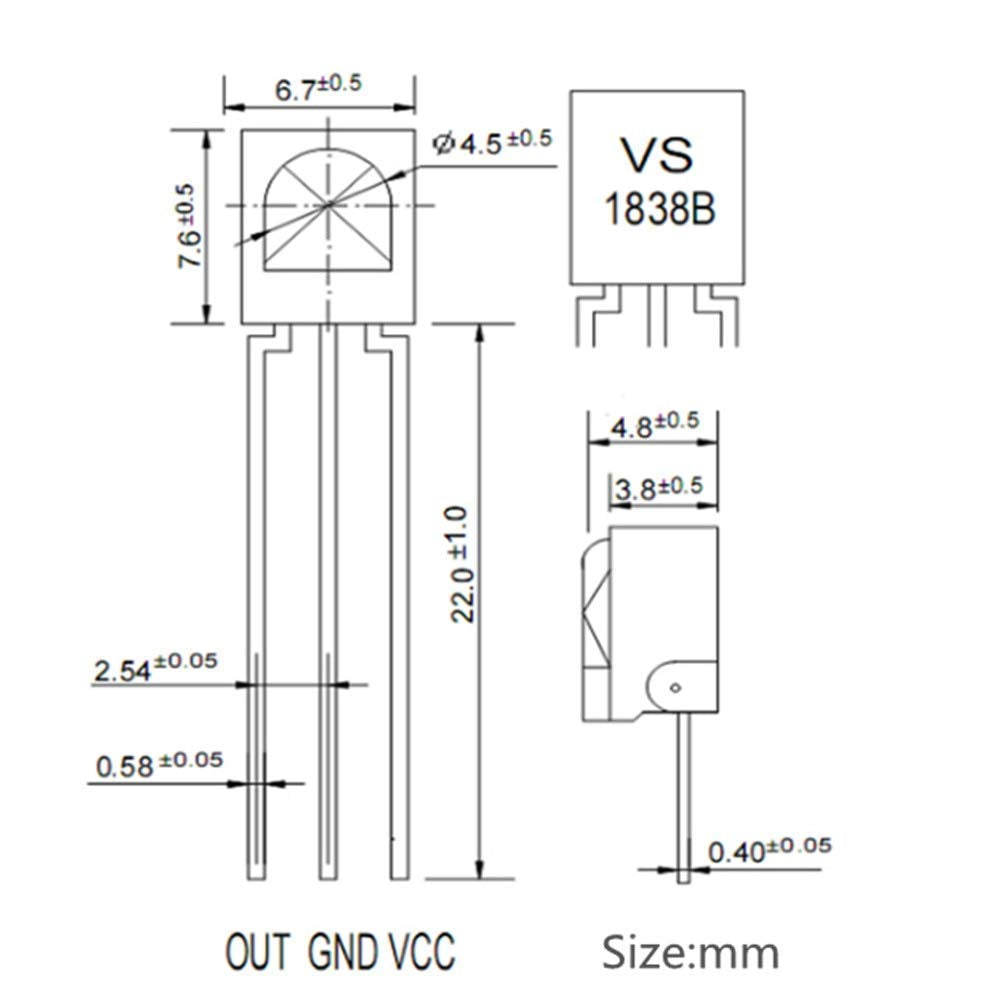

• Three-pin interface: VCC, GND, OUT

• Low power consumption

• Compact and lightweight package

• Easy interfacing with microcontrollers

• Stable and reliable performance

• Long operational life

Applications

• IR remote control receivers

• Home automation systems

• Consumer electronic devices

• TV and multimedia remote control projects

• Robotics and automation

• Wireless control systems

• Smart appliances

• Security and access control systems

• Arduino and ESP32 projects

• Raspberry Pi embedded applications

• Educational STEM projects

• Laboratory experiments

• Prototype development

• DIY electronics

Package Includes

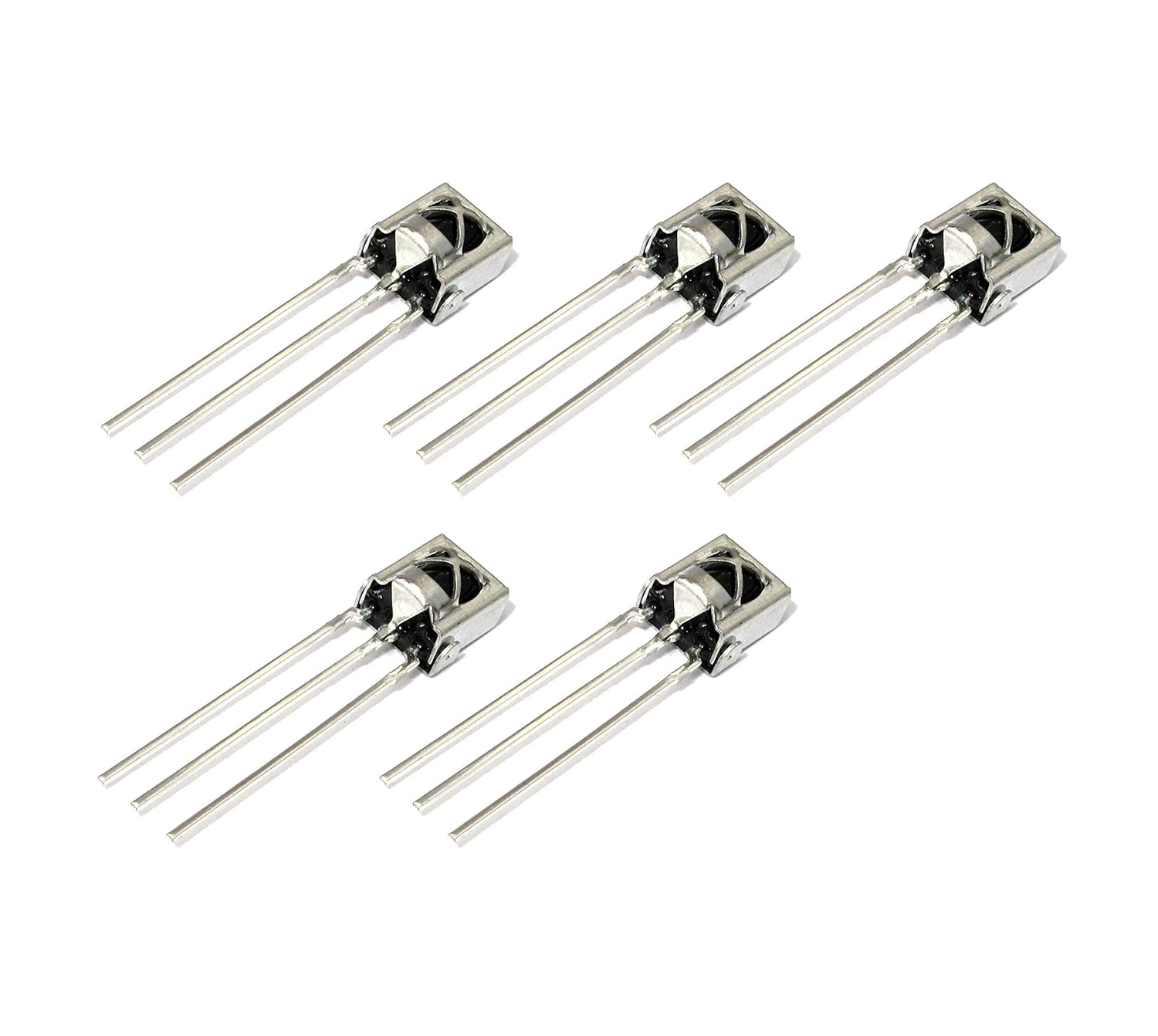

• 5 × TSOP1838B 3-Pin Infrared (IR) Receiver Sensors
