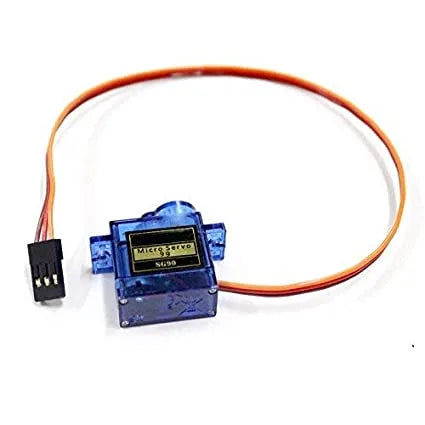

TowerPro SG90 Continuous Rotation 360 Degree Servo Motor

the towerpro sg90 continuous rotation 360 degree servo motor is a compact and lightweight micro servo motor designed for continuous rotational movement in robotics, automation, and diy electronics projects. unlike standard servo motors that rotate only within a fixed angle range such as 180 degrees, this continuous rotation version can rotate endlessly in both clockwise and anticlockwise directions, making it highly suitable for wheel drive systems, moving robots, conveyor mechanisms, and smart automation applications.

the servo motor operates using pwm (pulse width modulation) control signals generated by microcontrollers such as arduino, esp32, raspberry pi, stm32, pic, and other embedded development platforms. instead of controlling a fixed angular position, the pwm signal controls the direction and speed of continuous rotation.

the working principle of the sg90 continuous rotation servo is based on internal dc motor control combined with electronic pwm signal processing. the controller sends timed electrical pulses to the servo:

• one pulse range rotates the motor clockwise

• another pulse range rotates it anticlockwise

• the neutral pulse stops the rotation

this allows users to control both speed and movement direction easily through software programming.

one of the major advantages of the sg90 servo motor is its compact 9g micro servo design, which makes it ideal for lightweight and space-constrained projects. despite its small size, the motor provides smooth and reliable motion control for miniature robotics and automation systems.

the motor features low power consumption, making it suitable for battery-powered robots, portable electronics, and educational projects. its simple three-wire interface simplifies connection and programming for beginners and advanced users alike.

typically, the three wires include:

• power supply connection

• ground connection

• pwm signal control wire

the towerpro sg90 continuous rotation servo motor is commonly used in:

• smart robot car projects

• wheel drive robotic systems

• conveyor belt mechanisms

• camera pan and movement systems

• diy electronics and automation projects

• educational stem and robotics kits

• embedded motion control systems

• miniature automation devices

in robotics applications, the motor is often used as a wheel drive actuator because it can continuously rotate like a dc gear motor while still allowing speed and direction control through pwm signals.

the lightweight construction and compact body make it easy to mount in small robots, experimental platforms, and portable automation systems. it is also widely supported by arduino and robotics libraries, making programming and integration simple.

overall, the towerpro sg90 continuous rotation 360 degree servo motor is a reliable, compact, and beginner-friendly motion control solution that provides continuous rotational movement, pwm-based speed control, low power operation, and easy integration for robotics, automation, and embedded electronics applications.
