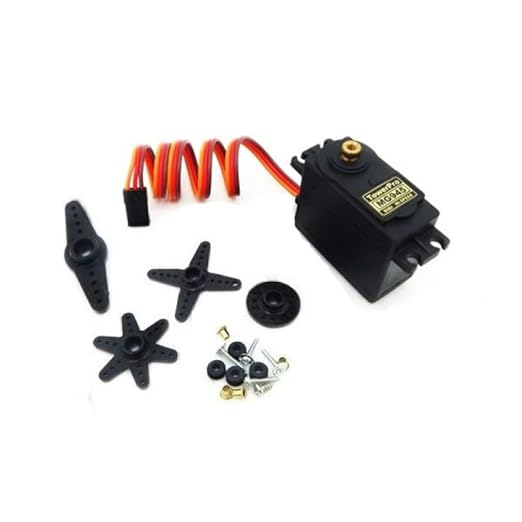

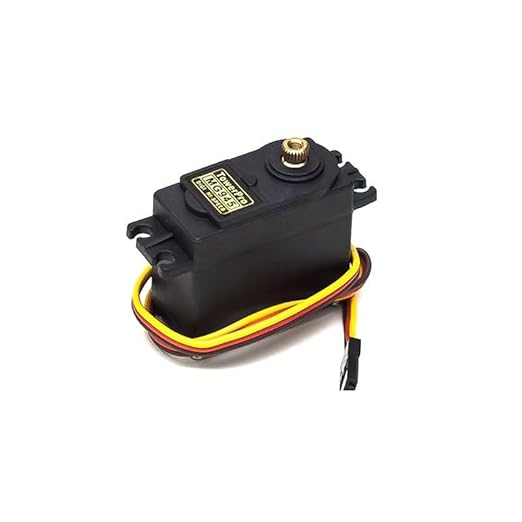

TowerPro MG945 Digital High Speed Servo Motor

The TowerPro MG945 Digital High Speed Servo Motor is a high-performance digital metal gear servo motor designed for applications that require accurate position control, high torque, and fast response. Unlike a standard DC motor, the MG945 is a closed-loop servo motor, meaning it can rotate to a specific angle and hold that position precisely. It is widely used in robotics, robotic arms, RC vehicles, RC aircraft, RC boats, CNC mechanisms, automation systems, educational electronics, and DIY engineering projects. Its digital control circuitry and metal gear train provide improved precision, durability, and reliability compared to analog servos.

The MG945 consists of a DC motor, digital control circuit, metal gear transmission, feedback potentiometer, output shaft, ball bearings, ABS plastic housing, and a 3-wire interface cable. The three wires are:

• Red – Positive Supply (4.8V–6.6V)

• Brown – Ground (GND)

• Orange – PWM Signal

The working principle of the TowerPro MG945 is based on closed-loop feedback control. The servo receives a Pulse Width Modulation (PWM) control signal from a microcontroller or RC receiver. The internal digital controller compares the desired shaft position (determined by the PWM signal) with the actual shaft position measured by the built-in potentiometer. If the positions do not match, the controller drives the DC motor through the metal gear train until the required position is reached. Once the target angle is achieved, the servo continuously adjusts itself to maintain the position, even when external forces are applied.

The MG945 supports an operating voltage of approximately 4.8V to 6.6V and delivers a stall torque of around 10 kg·cm at 4.8V and 12 kg·cm at 6V, making it suitable for medium to high-load applications. It offers an operating speed of approximately 0.23 seconds per 60° at 4.8V and 0.20 seconds per 60° at 6V. The servo provides a rotation range of approximately 180°, depending on the control signal and application.

The metal gear train provides greater strength and wear resistance than plastic gears, allowing the servo to handle higher loads and operate for longer periods. The digital control system offers improved holding torque, better centering accuracy, faster response, and smoother movement compared to traditional analog servos.

The MG945 can be controlled using Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi (using PWM), STM32, PIC, AVR, and most RC receivers. It is compatible with standard servo libraries available for popular microcontroller platforms, making programming simple and convenient.

The applications of the TowerPro MG945 Digital High Speed Servo Motor include robotic arms, humanoid robots, robotic grippers, walking robots, RC airplanes, RC helicopters, RC cars, RC boats, pan-tilt camera systems, solar tracking systems, CNC mechanisms, industrial automation, educational robotics, STEM learning, laboratory equipment, prototype development, IoT projects, and embedded control systems.

The advantages of the MG945 include high torque, fast response speed, digital control for precise positioning, durable metal gears, excellent holding torque, smooth operation, long service life, compact design, low backlash, compatibility with standard PWM control, easy interfacing with microcontrollers, and reliable performance in demanding robotic and automation applications.

In conclusion, the TowerPro MG945 Digital High Speed Servo Motor is a powerful and reliable digital servo designed for accurate angular positioning and high-load applications. Its metal gear construction, digital feedback control, high torque, and compatibility with popular microcontrollers make it an excellent choice for robotics, automation, RC models, engineering projects, educational electronics, and advanced prototype development.
