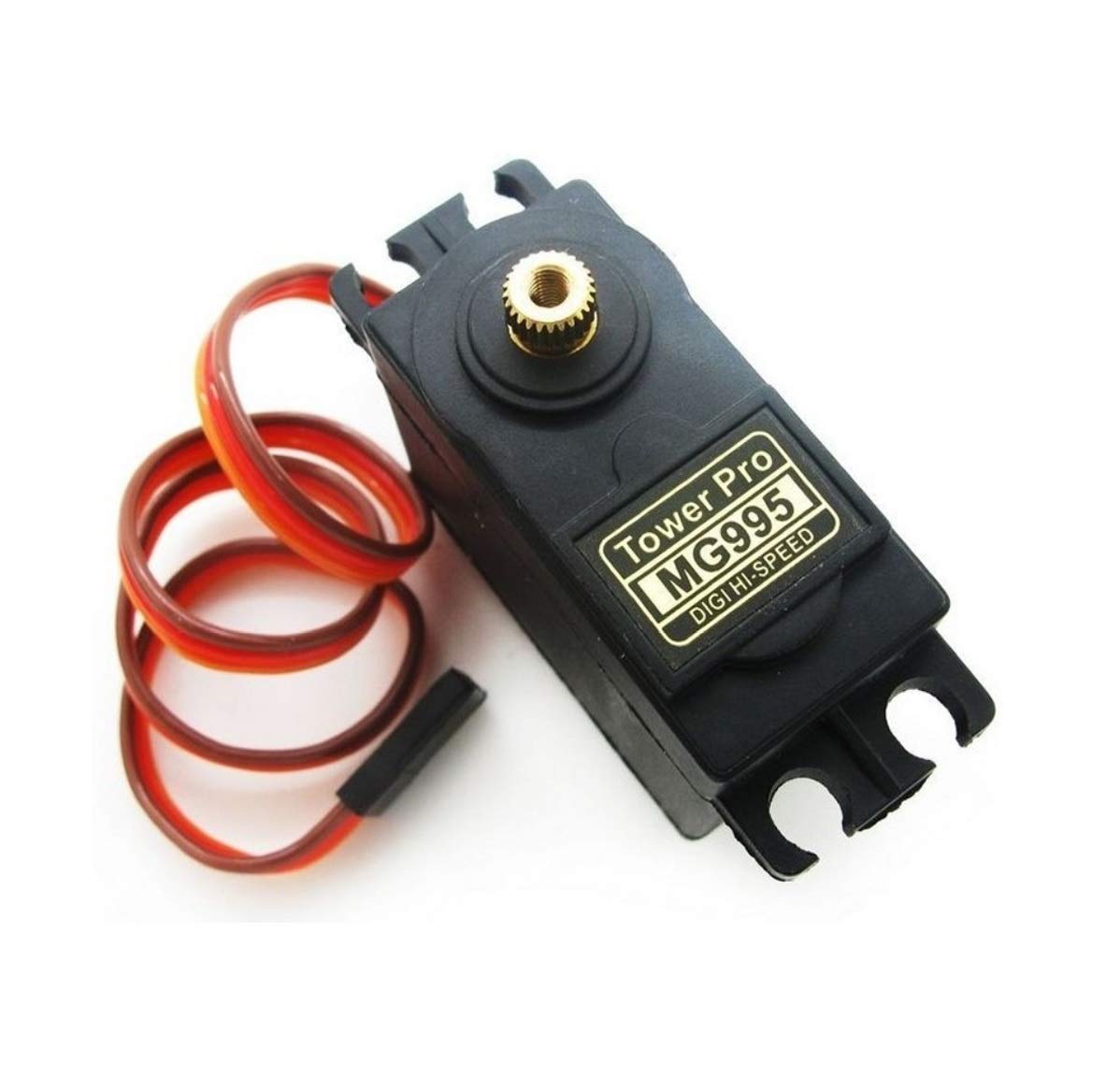

Tower Pro MG995 Servo Motor (180°)

The Tower Pro MG995 Servo Motor is a high-torque, heavy-duty servo actuator designed for precise angular position control over an approximate 180-degree rotation range. It is widely used in robotics, automation systems, and radio-controlled (RC) applications where strong mechanical force, accurate positioning, and durable performance are required.

This servo motor is built with a robust internal structure that includes metal gear construction, a high-power DC motor, and a control feedback system. The metal gear train significantly increases torque output while improving durability and resistance to wear, making it suitable for demanding mechanical operations and repetitive motion tasks.

The MG995 operates using Pulse Width Modulation (PWM) control signals, which allow precise control of angular position. By varying the width of the input pulse from a microcontroller or RC receiver, the servo moves to a specific angle within its operating range and holds that position with torque feedback. This makes it highly suitable for applications requiring accurate positioning and stability under load.

The servo provides high torque output compared to standard micro servos, enabling it to move heavier mechanical structures such as robotic arms, steering systems, grippers, and load-bearing joints. Its strong torque performance makes it ideal for projects that require both strength and controlled movement.

The motor typically operates within a voltage range of approximately 4.8V to 7.2V DC, making it compatible with battery packs, regulated power supplies, and embedded electronics platforms. It can be easily integrated with popular development boards such as Arduino Uno R3, Arduino Nano Board V3, ESP32 controllers, and Raspberry Pi 4 Model B using standard servo control libraries.

Internally, the MG995 includes a feedback potentiometer that continuously monitors shaft position. This feedback system enables the servo to adjust its movement dynamically and maintain accurate positioning even when external loads are applied. The closed-loop control system ensures stable and repeatable motion.

The servo is controlled through a standard three-wire interface:

• Power (VCC)

• Ground (GND)

• PWM Signal

This simple interface allows direct connection to microcontroller GPIO pins without requiring additional motor driver circuits, making it easy to integrate into embedded systems and robotics projects.

One of the key advantages of the MG995 servo is its high torque capability, which allows it to handle mechanical stress effectively. This makes it suitable for applications where standard low-power servos would fail or perform inconsistently.

The servo is commonly used in a wide range of applications, including:

• Robotic arms and grippers

• RC cars, boats, and airplanes

• Automation systems

• CNC and mechanical positioning systems

• Pan-tilt camera mounts

• Educational robotics kits

• Smart mechanical devices

• DIY electronics projects

Its rugged metal gear construction improves lifespan and ensures reliable operation in continuous-use environments. This makes it suitable for both experimental projects and practical engineering applications.

The MG995 servo is also widely used in STEM education because it helps students understand concepts such as servo control, feedback systems, PWM signal processing, and robotic motion control. It provides hands-on experience with real-world electromechanical systems.

Because of its high power consumption under load, it is recommended to use a dedicated power supply when operating multiple servos or high-torque applications. This ensures stable performance and prevents voltage drops in the control system.

Overall, the Tower Pro MG995 Servo Motor (180°) is a powerful, durable, and precise motion control component designed for robotics, automation, and embedded systems. Its metal gear design, high torque output, PWM-based control, and compatibility with popular microcontroller platforms make it an excellent choice for students, hobbyists, and engineers building advanced mechanical and robotic systems.
