Toucht sensor (red)

the ttp223 capacitive touch sensor module is a compact and reliable touch-sensitive input module designed to detect human finger touch using capacitive sensing technology. based on the ttp223 touch sensing integrated circuit, the module is commonly used as a replacement for traditional mechanical push buttons in modern electronic systems, smart devices, automation projects, and embedded applications.

the module features a single touch-sensitive input area that responds when a finger comes into contact with or close to the sensor surface. because it operates without moving mechanical parts, it offers silent operation, improved durability, and reduced mechanical wear compared to conventional push buttons.

the working principle of the ttp223 module is based on capacitive touch sensing. the sensor continuously monitors changes in capacitance around the touch pad area. when a human finger approaches or touches the sensing surface, the natural electrical capacitance of the human body alters the local electric field. the ttp223 integrated circuit detects this capacitance change and generates a digital output signal.

the module typically provides:

• digital high output when touched

• digital low output when released

this output can be directly connected to digital input pins of microcontrollers such as arduino, esp32, raspberry pi, stm32, pic, avr, and other embedded platforms.

one of the major advantages of the ttp223 touch sensor is its low power consumption, making it suitable for battery-powered electronics and portable devices. the sensor also provides fast response time and stable touch detection performance.

the module supports different operating modes including:

• momentary mode, where output remains active only while touched

• toggle mode, where each touch changes the output state on or off

these modes allow flexible use in automation and control systems.

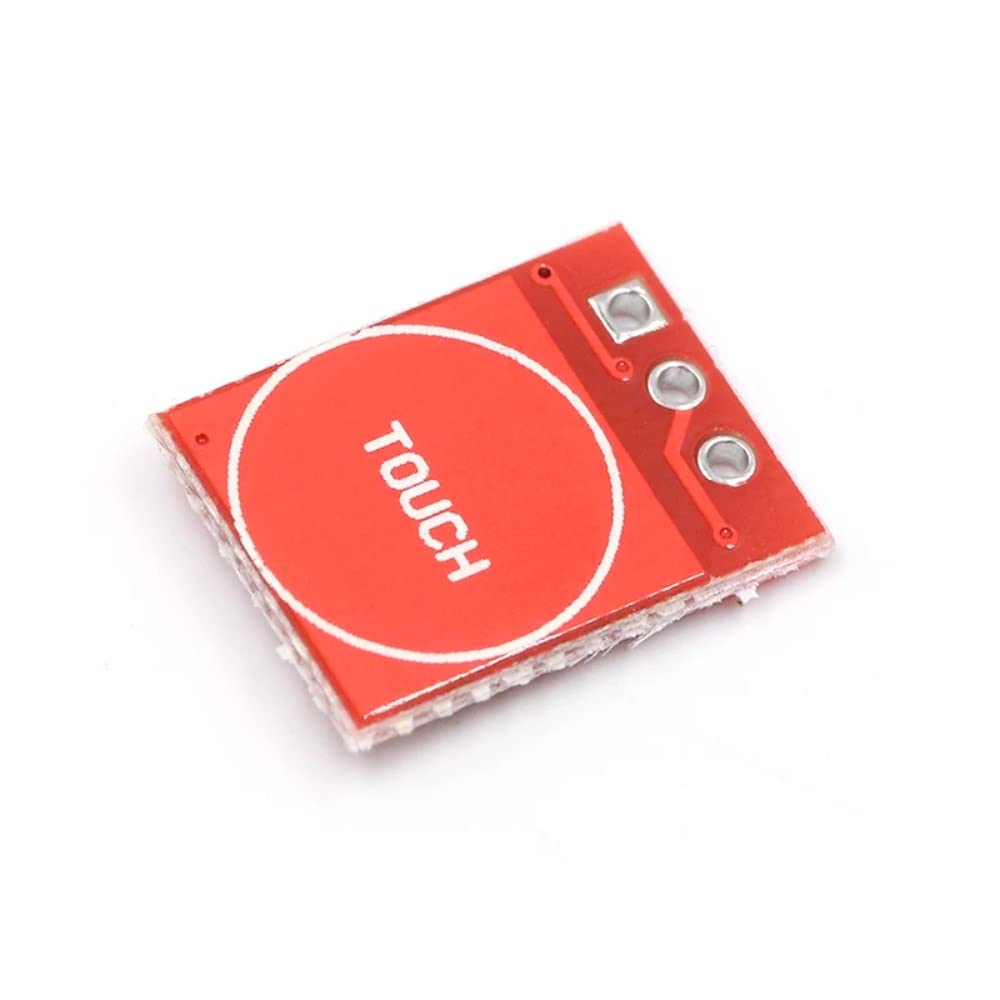

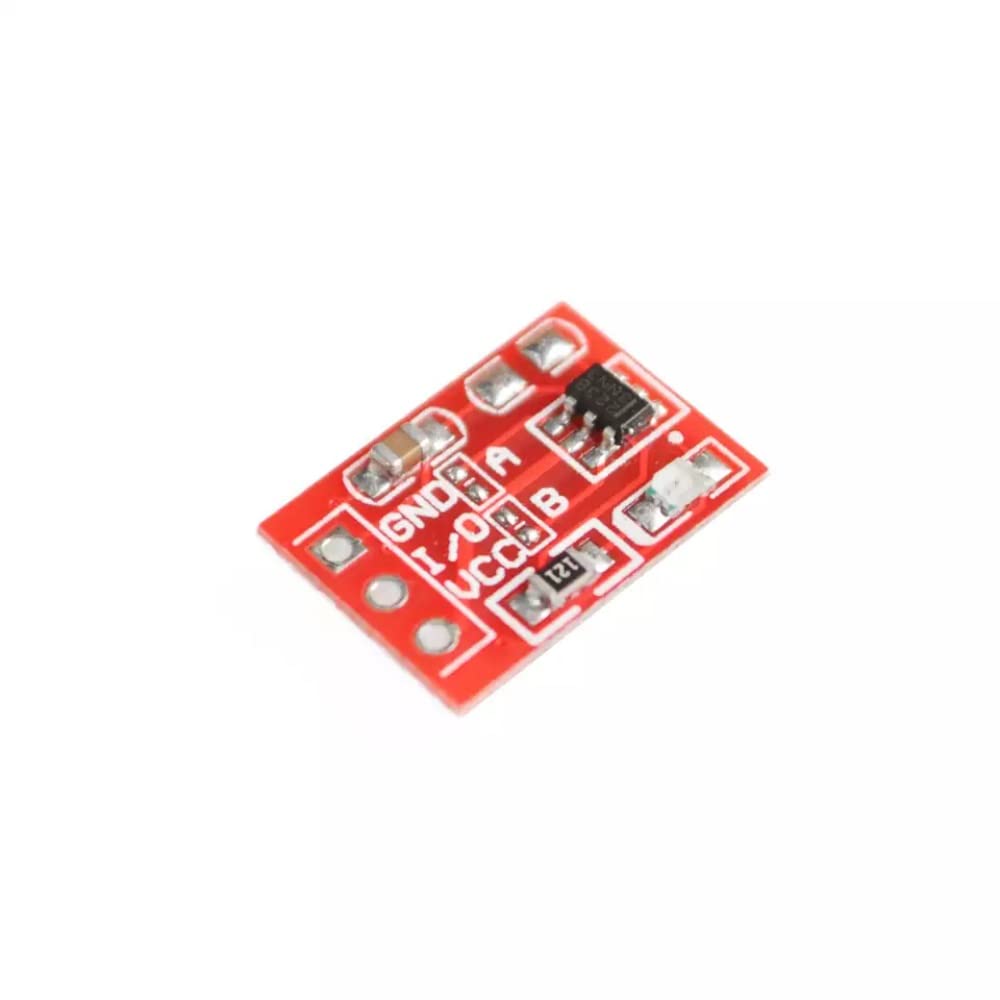

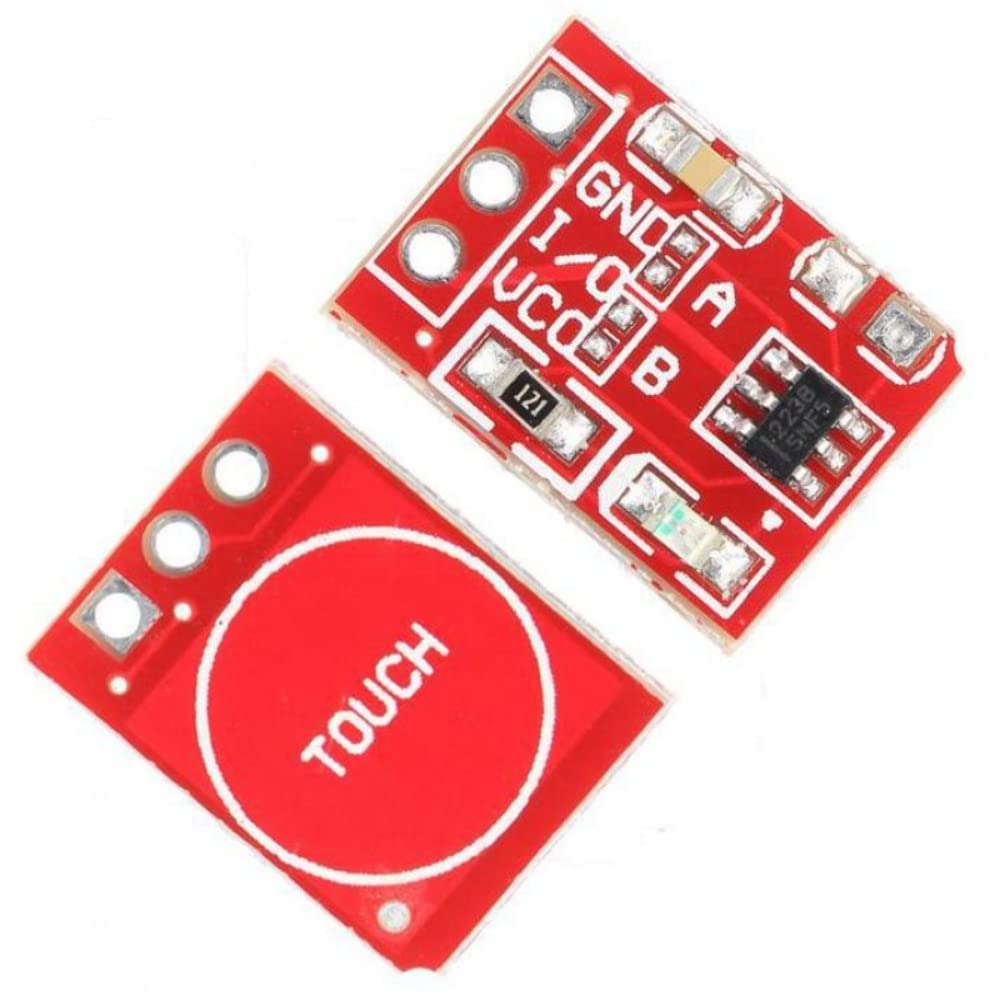

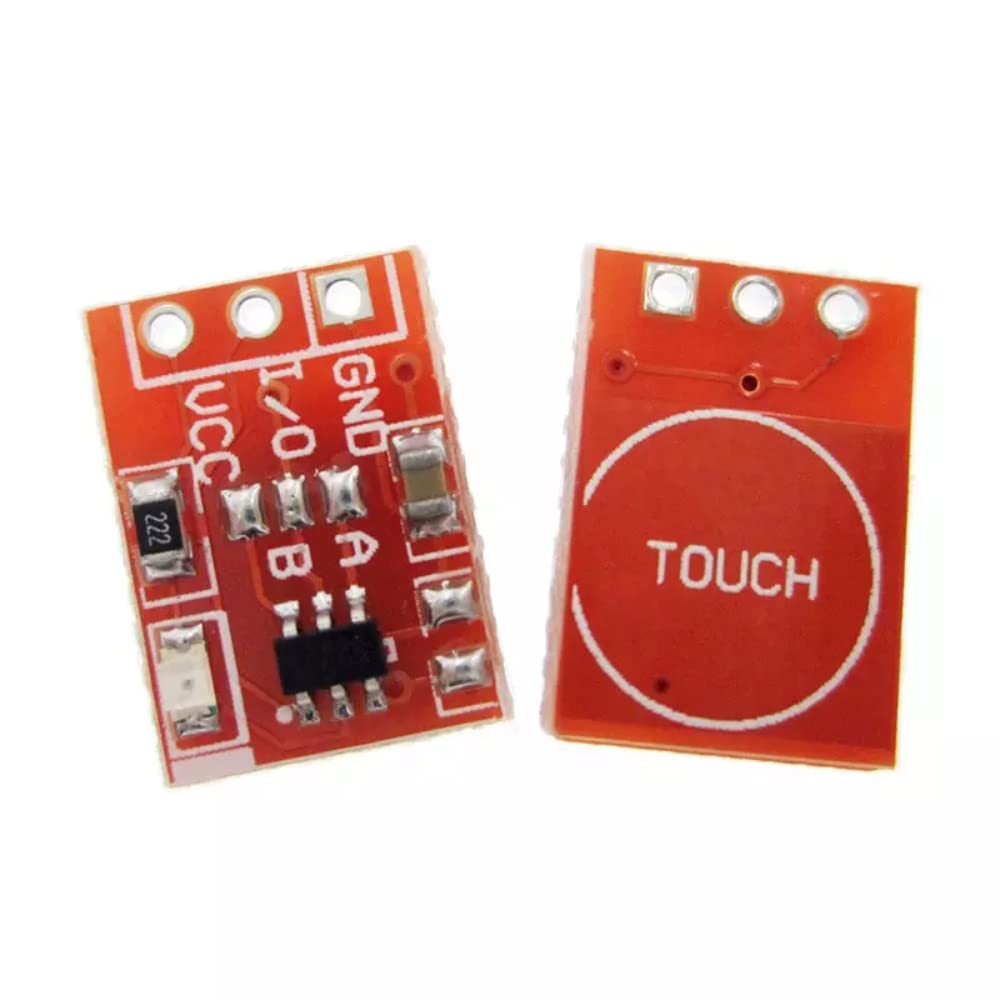

the compact red pcb design makes the module easy to integrate into breadboards, custom pcbs, control panels, and embedded electronic devices. its simple three-pin interface generally includes:

• power supply (vcc)

• ground (gnd)

• digital output (out)

the ttp223 capacitive touch sensor module is commonly used in:

• touch-based switch systems

• home automation projects

• smart control panels

• robotics and embedded systems

• diy electronics projects

• interactive electronic devices

• touch lamps and lighting systems

• appliance control interfaces

• educational and engineering projects

in home automation systems, the module can replace traditional wall switches with touch-sensitive controls. in embedded electronics, it provides modern and reliable user input functionality for interactive systems.

because of its simple interfacing, compact size, and dependable operation, the ttp223 module is highly beginner-friendly while also being suitable for advanced embedded and iot applications.

overall, the ttp223 capacitive touch sensor module is a low-power, durable, and easy-to-use touch input solution that provides reliable capacitive touch detection for automation systems, smart electronics, robotics, and embedded applications.
