Touch Sensor Module (Blue)

The Touch Sensor Module (Blue) is a compact capacitive touch sensing module designed to detect human touch without requiring mechanical pressure. It provides a simple and reliable way to add touch-based control to electronic projects, replacing traditional push buttons with a modern touch interface. The module is widely used in home automation systems, IoT devices, robotics, consumer electronics, security systems, and embedded applications.

The module operates using capacitive touch sensing technology. When a finger touches the sensor pad, the capacitance changes due to the electrical properties of the human body. The onboard touch sensing IC detects this change and generates a digital output signal that can be read directly by a microcontroller or other control circuit. Since there are no moving parts, the module offers silent operation and improved durability compared to conventional mechanical switches.

The Touch Sensor Module (Blue) provides a digital output that changes state when a touch is detected, making it easy to interface with popular development boards such as Arduino, Raspberry Pi, ESP32, ESP8266, NodeMCU, STM32, PIC, AVR, and other microcontrollers. It operates with low power consumption and delivers fast response times, making it suitable for both battery-powered and continuously operating devices.

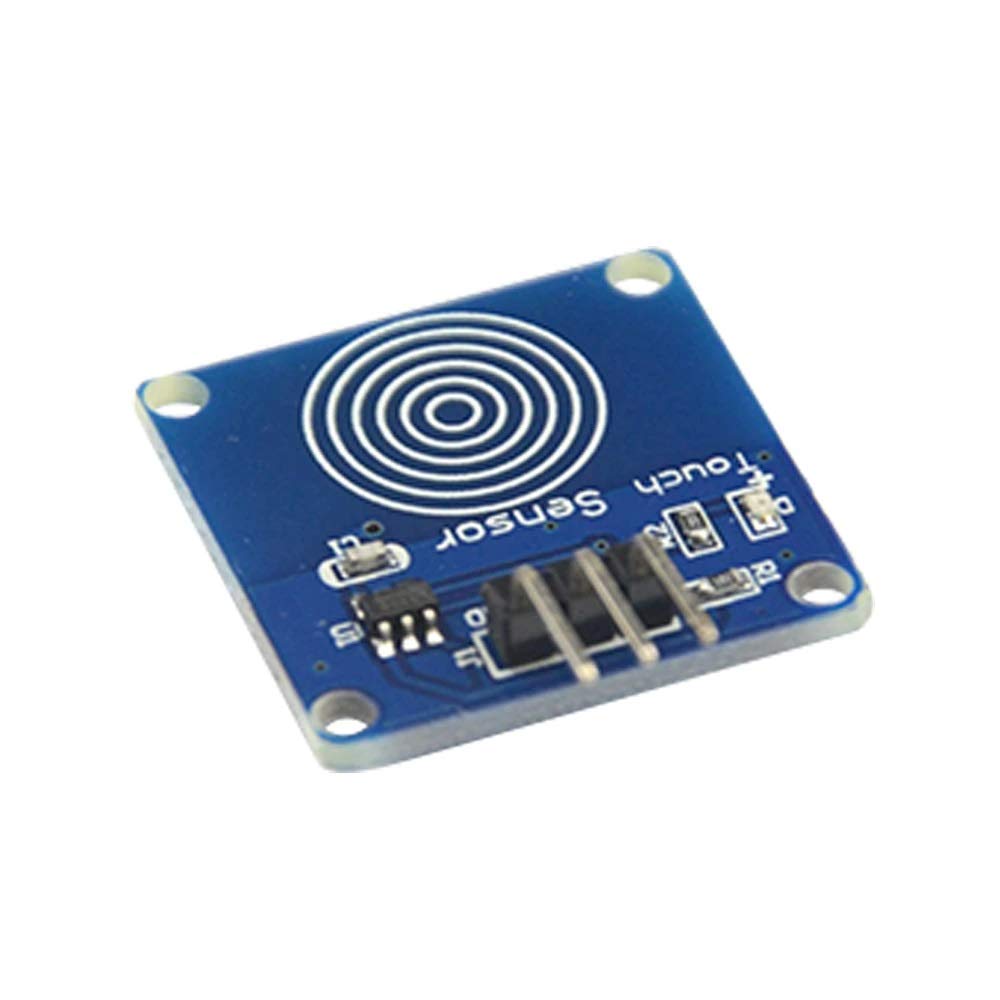

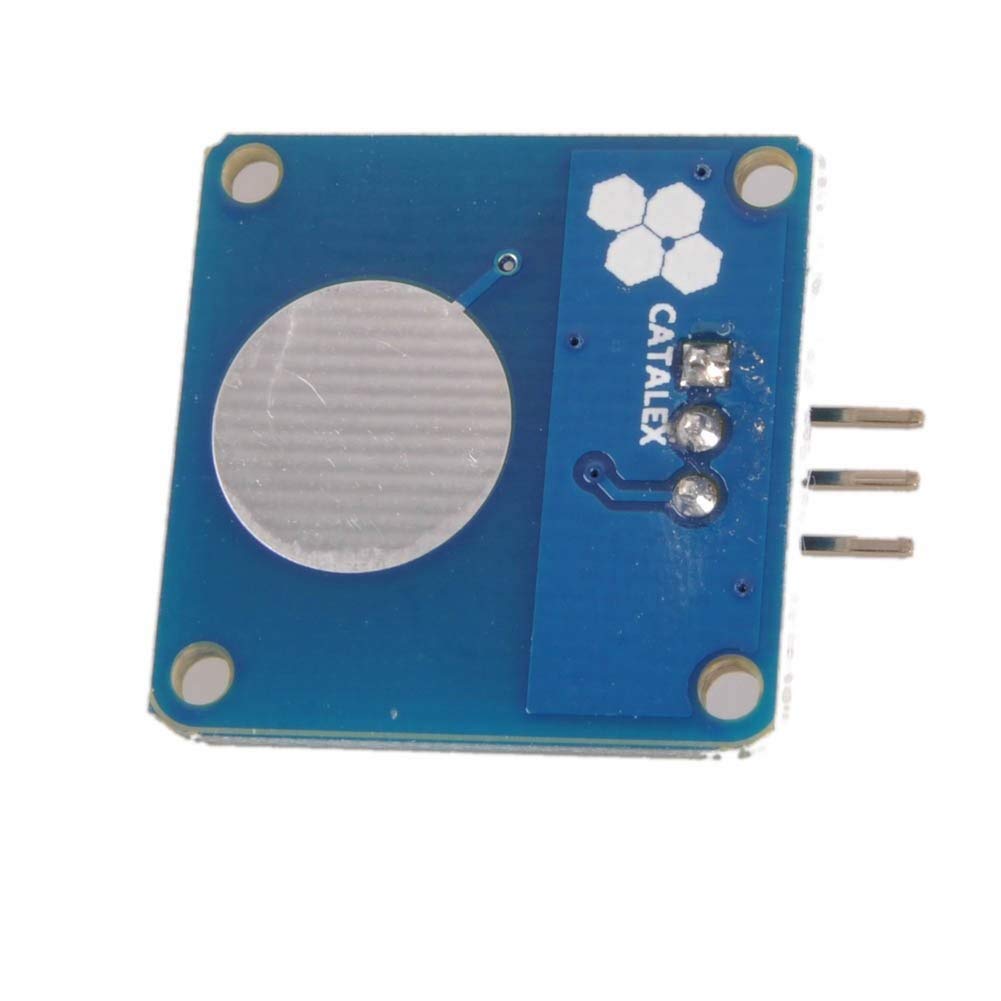

The module features a compact PCB with clearly marked VCC, GND, and OUT pins for quick and easy connections. Its small size allows it to be easily integrated into custom electronic products, control panels, and portable devices. The blue PCB design provides durability and simplifies identification during assembly.

The Touch Sensor Module (Blue) is widely used in touch-controlled lamps, smart switches, home automation systems, security systems, robotics, IoT devices, interactive displays, access control systems, consumer electronics, alarm systems, electronic toys, educational electronics, DIY projects, and embedded control applications. It is ideal for creating touch-activated buttons, lighting controls, menu selection systems, and user interfaces.

The module offers several advantages, including high sensitivity, fast response time, low power consumption, compact size, reliable touch detection, long service life, easy installation, and maintenance-free operation. Since it uses capacitive sensing instead of mechanical contacts, it experiences minimal wear and provides consistent performance over extended periods.

The Touch Sensor Module (Blue) is an excellent choice for engineers, students, hobbyists, and electronics developers who need a simple and dependable touch input solution. Its capacitive sensing technology, easy microcontroller integration, compact design, and wide compatibility make it ideal for modern electronic products, automation systems, smart devices, and DIY electronics projects.

Frequently Asked Questions

What is a TTP223 Touch Sensor Module?

The TTP223 Touch Sensor Module is a single-channel capacitive touch sensor that detects finger touch and provides a digital output signal.

Can I use the TTP223 Touch Sensor Module with Arduino?

Yes, the TTP223 module can be connected to compatible Arduino boards and used as a digital touch input for electronics and robotics projects.

What can I use this Touch Sensor Module for?

It can be used for touch switches, touch-controlled LEDs, home automation, interactive control panels, robotics, IoT devices and DIY electronics projects.

Can this module replace a push button?

Yes, the TTP223 is designed to provide touch-based input and can be used as an alternative to a traditional mechanical push button in suitable projects.

What are the pins on the TTP223 Touch Sensor Module?

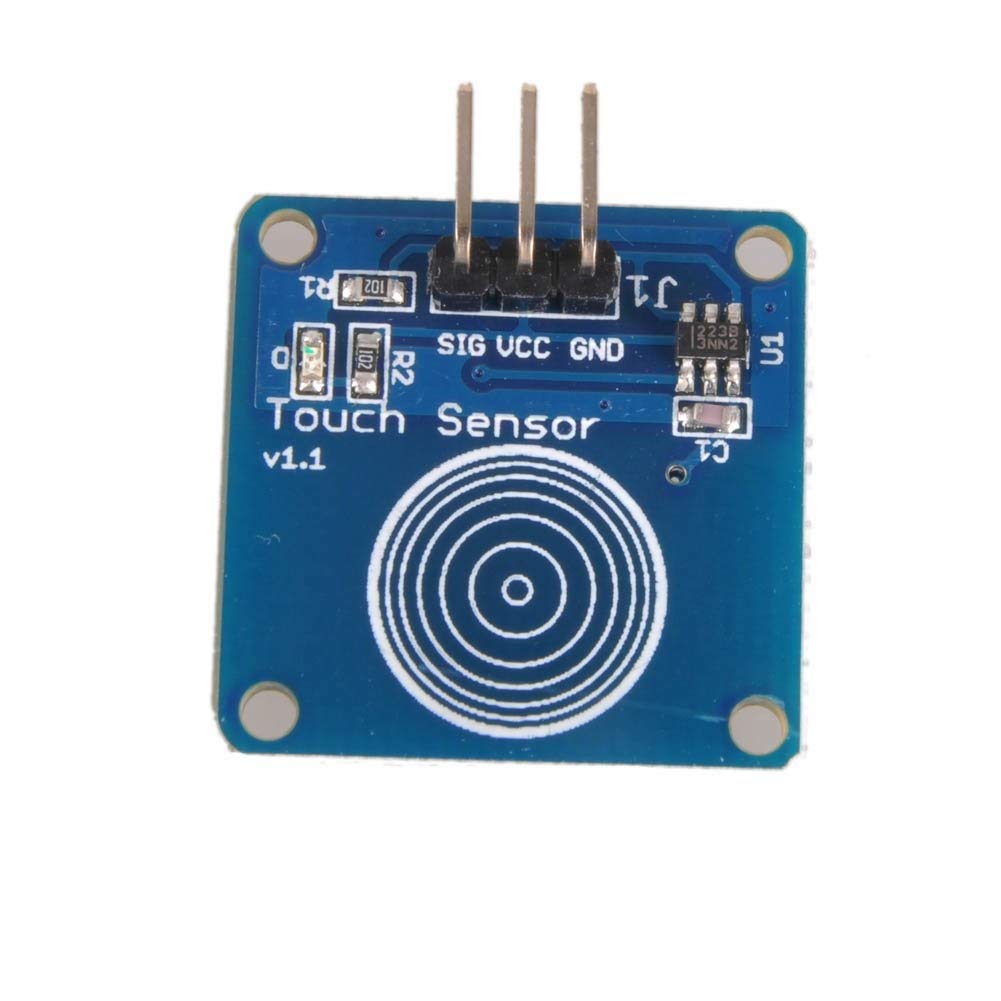

The common blue TTP223 module has three main connections: VCC for power, GND for ground and SIG for the digital signal output.

What is the operating voltage of the TTP223 module?

Common TTP223 blue modules support an operating voltage range of approximately 2V to 5.5V DC. Check the specifications of your particular module before connecting it.

Is the TTP223 Touch Sensor Module suitable for beginners?

Yes, its simple interface makes it suitable for students and beginners learning Arduino, sensors, digital electronics and DIY projects.

Where can I buy a TTP223 Touch Sensor Module online in India?

You can purchase the TTP223 Touch Sensor Module (Blue) online from Electro Robo Store.
