Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino

The Tilt Sensor Vibration Alarm Vibration Switch Module is a compact motion detection device designed to detect tilt, vibration, shock, and movement in electronic systems. It is widely used in security systems, vibration alarms, anti-theft devices, robotics, industrial monitoring, home automation, and Arduino-based projects. The module contains a sensitive vibration or tilt switch that changes its electrical state whenever the module is tilted or subjected to vibration, allowing connected microcontrollers to detect physical movement quickly and reliably.

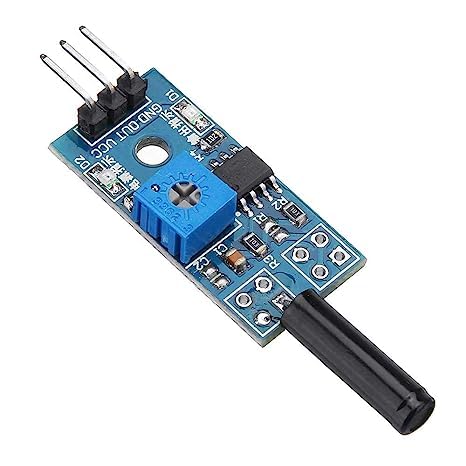

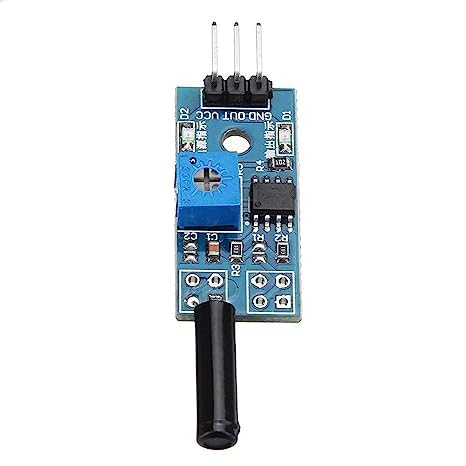

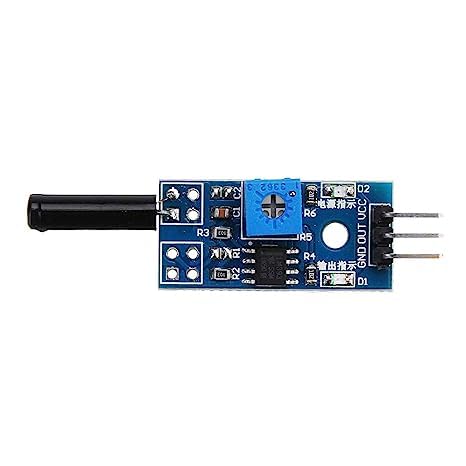

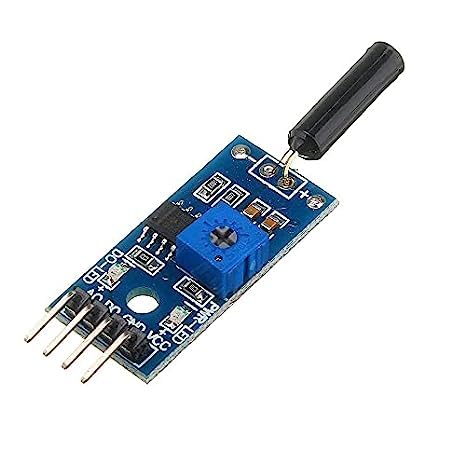

The module operates by using a mechanical vibration or tilt sensing switch that opens or closes its internal contacts when movement, shaking, or tilting occurs. The onboard LM393 voltage comparator processes the sensor signal and provides a stable digital output (DO) that can be directly connected to a microcontroller. Most versions of the module also include an adjustable potentiometer, allowing users to modify the sensitivity according to the application. When the detected vibration or tilt exceeds the preset threshold, the digital output changes state and the onboard indicator LED lights up, indicating that motion has been detected.

The Tilt Sensor Vibration Alarm Module typically operates with a 3.3 V to 5 V DC power supply, making it fully compatible with popular development platforms such as Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, AVR, and other microcontrollers. The module usually provides three interface pins: VCC, GND, and DO (Digital Output), making it simple to integrate into embedded systems without requiring complex programming or signal conditioning.

This module is commonly used in earthquake detection systems, anti-theft alarms, vehicle security systems, equipment monitoring, machine vibration detection, robotics, smart home automation, motion-triggered alarms, industrial safety systems, and educational electronics projects. It can also be used to detect accidental movement, monitor the operating condition of machinery, or trigger notifications whenever vibration or tilting is detected.

The Tilt Sensor Vibration Alarm Module offers several advantages, including high sensitivity, fast response time, adjustable detection threshold, compact design, low power consumption, easy interfacing, and reliable digital output. Its small size and simple operation make it suitable for portable devices, battery-powered systems, and embedded applications. However, because the sensor is highly sensitive, proper adjustment of the onboard potentiometer may be required to avoid false triggering caused by minor vibrations or environmental disturbances.

Overall, the Tilt Sensor Vibration Alarm Vibration Switch Module for Arduino is an affordable, reliable, and easy-to-use motion detection sensor for a wide range of electronic applications. Its ability to detect tilt, vibration, and shock, combined with its compatibility with popular microcontroller platforms, makes it an excellent choice for students, hobbyists, engineers, and professionals developing security systems, automation projects, and embedded monitoring solutions.
