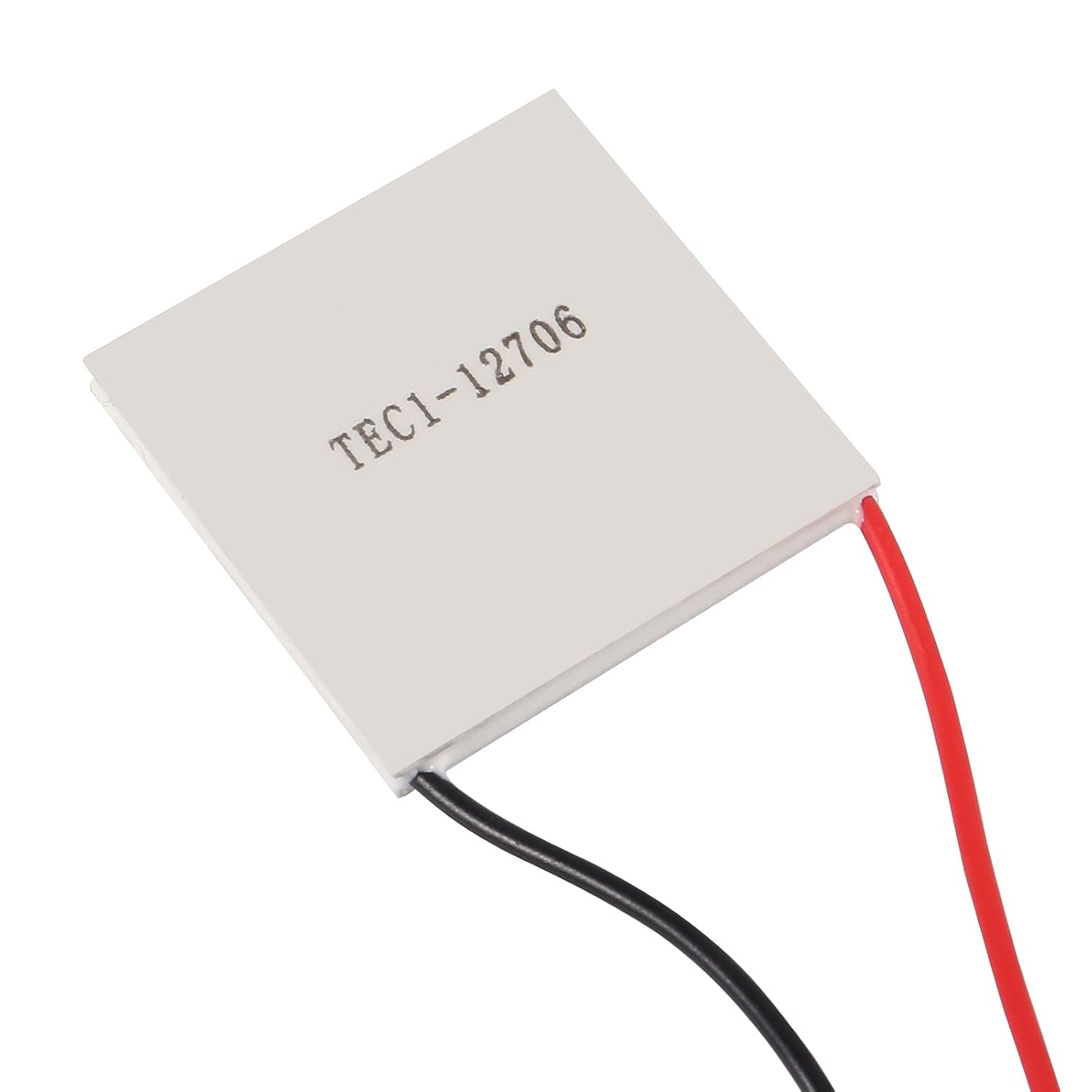

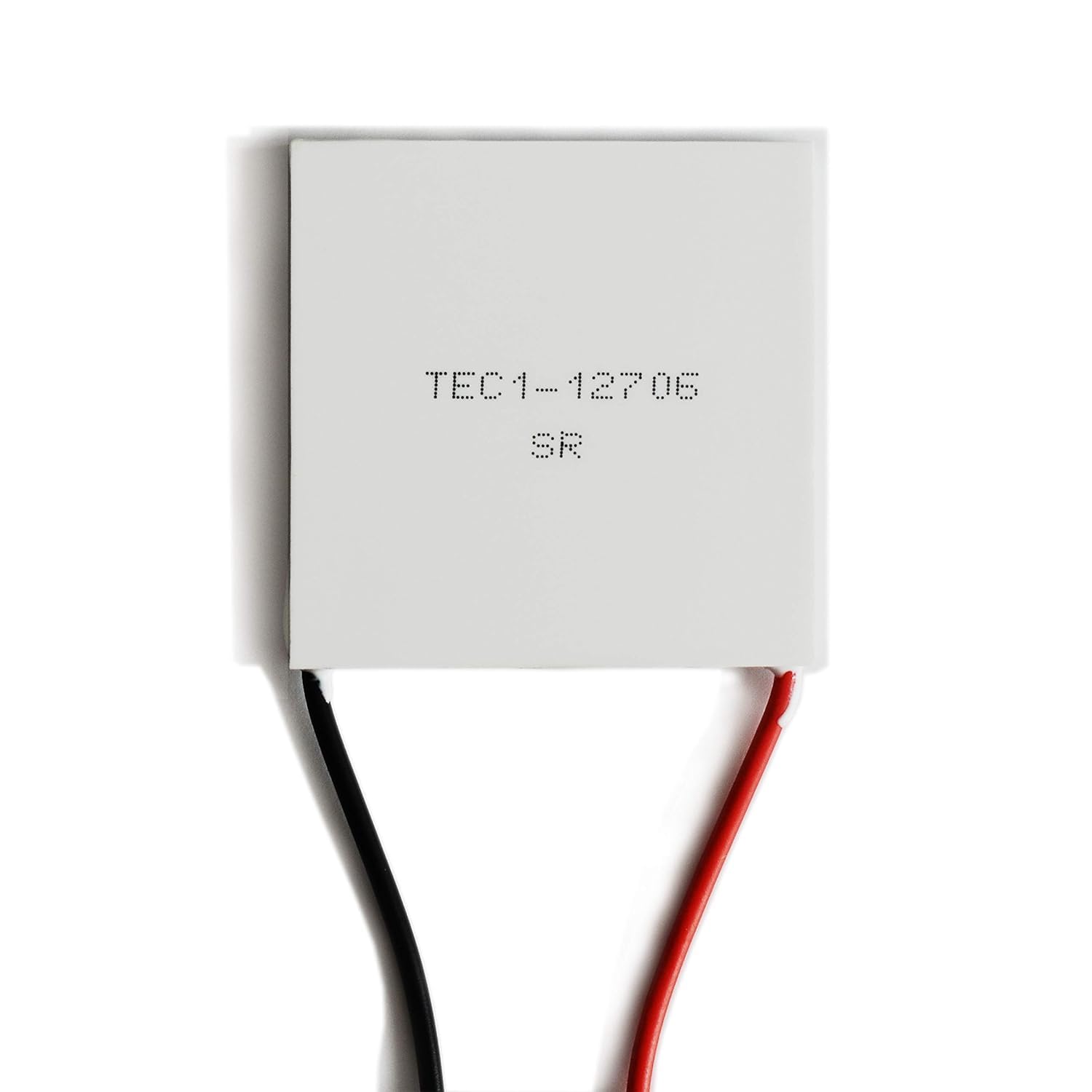

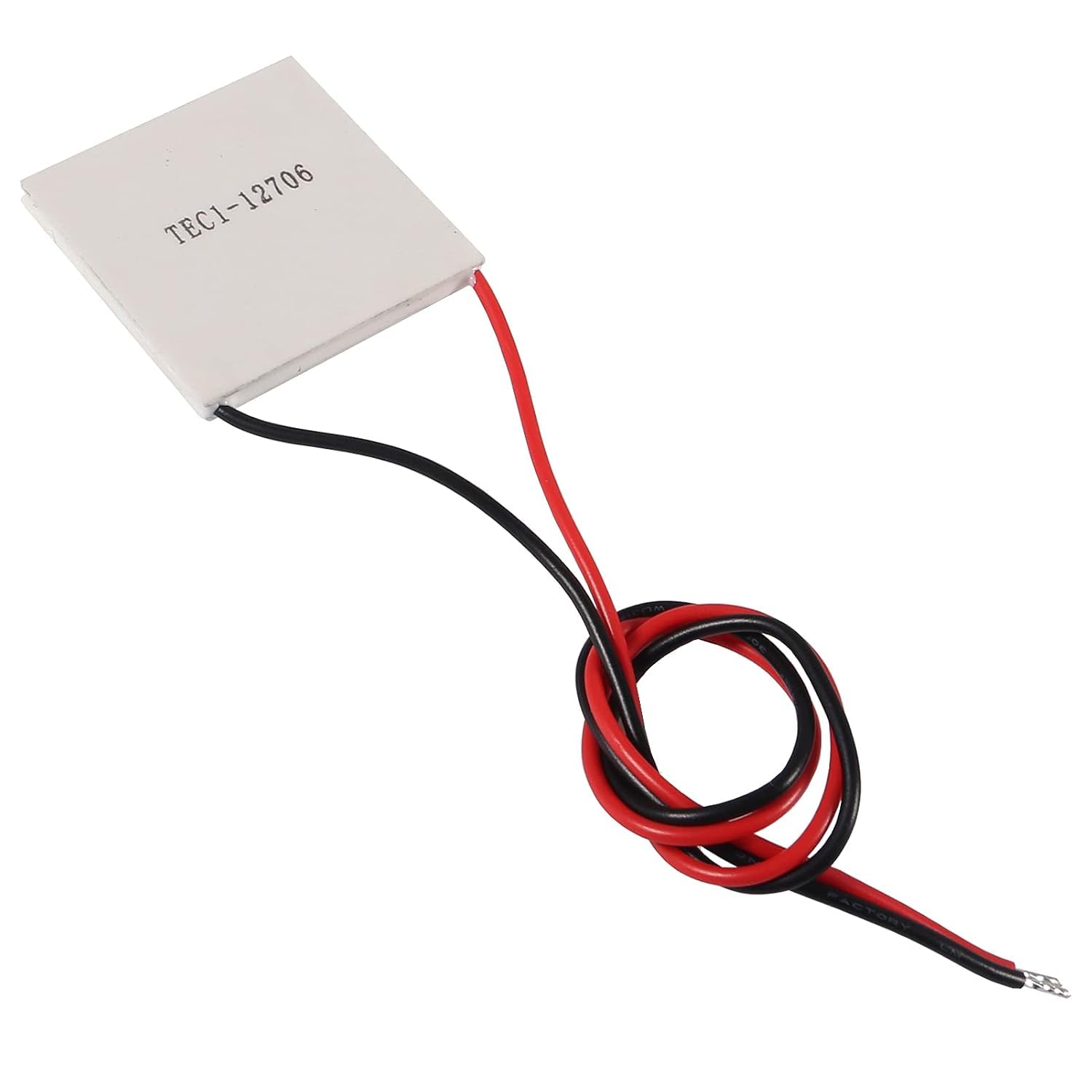

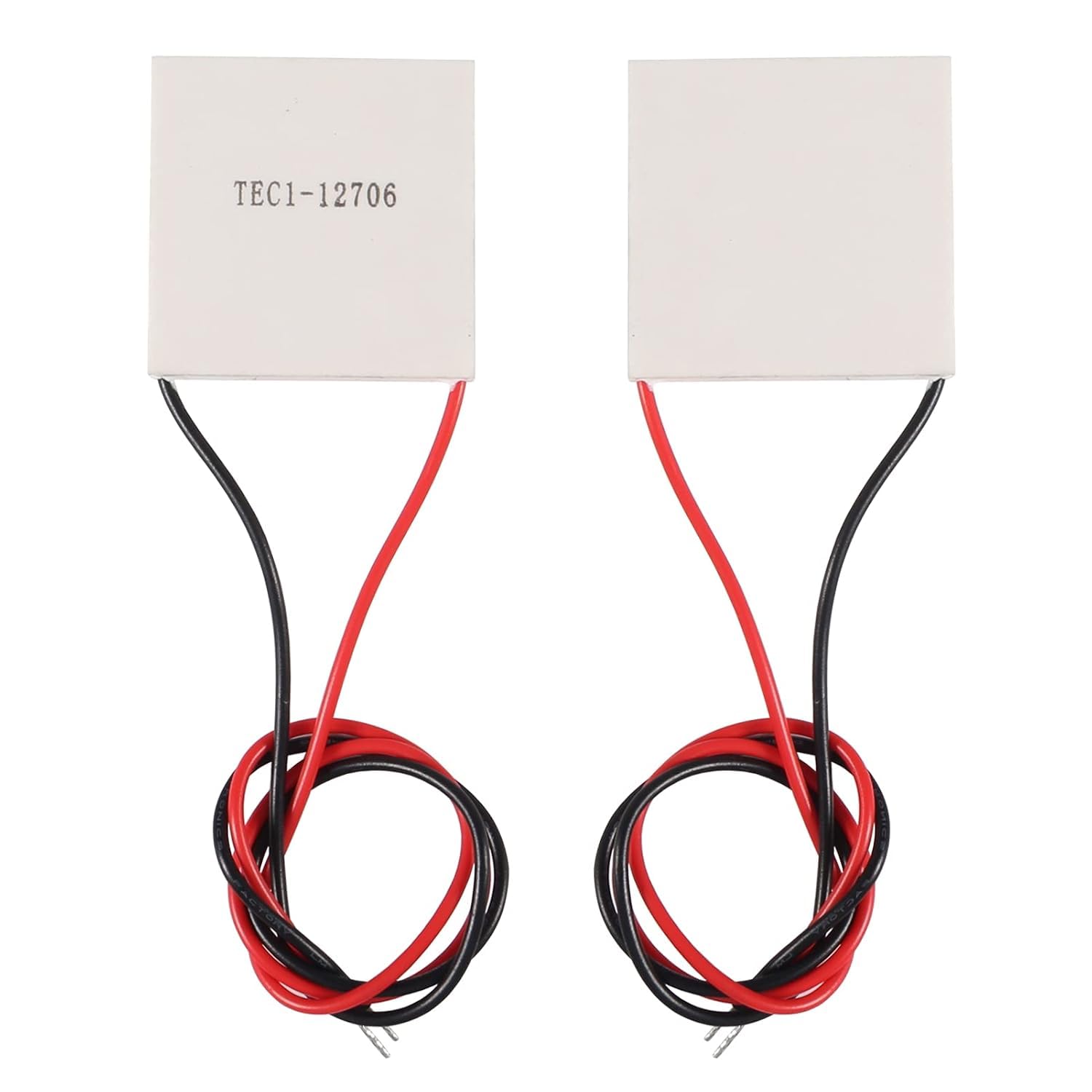

TEC1-12706 Peltier Module

The TEC1-12706 Peltier Module is a compact solid-state thermoelectric cooling device that works based on the Peltier Effect, where heat is transferred from one side of the module to the other when a direct current (DC) is applied. As electricity flows through the module, one surface becomes cold by absorbing heat, while the opposite surface becomes hot by releasing that heat. Unlike conventional cooling systems, the TEC1-12706 does not use compressors, refrigerants, or any moving parts, making it silent, lightweight, environmentally friendly, and highly reliable. Due to its simple construction and efficient operation, it is widely used in electronic cooling, portable refrigeration, medical equipment, laboratory instruments, and various educational and DIY projects.

The TEC1-12706 operates at a nominal voltage of 12 V DC and can draw a maximum current of approximately 6 A. It consists of 127 thermoelectric semiconductor couples connected electrically in series and thermally in parallel, which is reflected in its model number "12706." The module measures approximately 40 mm × 40 mm × 3.8 mm and is capable of producing a maximum temperature difference of about 65°C to 68°C between its hot and cold sides under ideal conditions. The actual cooling performance depends on several factors, including the ambient temperature, heat load, power supply, and the efficiency of the cooling system attached to the hot side.

The working principle of the TEC1-12706 is straightforward. When the red wire is connected to the positive terminal and the black wire is connected to the negative terminal of a DC power supply, one surface of the module becomes cold while the opposite surface becomes hot. The cold side absorbs heat from the object or environment that needs to be cooled, and the hot side releases this heat to the surroundings. To ensure efficient operation, a heatsink and cooling fan must be attached to the hot side of the module. Without proper heat dissipation, the hot side temperature rises rapidly, reducing the cooling efficiency and potentially damaging the module. Reversing the power supply polarity reverses the heat flow, causing the previously cold side to become hot and the hot side to become cold.

One of the major advantages of the TEC1-12706 Peltier Module is its silent operation because it contains no moving parts. It requires very little maintenance, has a long operating life, and is environmentally friendly since it does not use harmful refrigerant gases. The module is compact, lightweight, and easy to install, making it suitable for portable and space-constrained applications. Additionally, it can function as both a cooling and heating device simply by reversing the polarity of the power supply.

Despite its advantages, the TEC1-12706 also has certain limitations. It consumes relatively high current, requires an efficient heatsink and cooling fan for continuous operation, and is generally less energy-efficient than conventional compressor-based refrigeration systems. Therefore, it is best suited for small-scale cooling applications rather than large refrigeration systems.

The TEC1-12706 Peltier Module is widely used in numerous applications, including mini refrigerators, portable beverage coolers, electronic component cooling, CPU and GPU cooling systems, medical storage units, laboratory instruments, water cooling systems, automotive seat coolers, dehumidifiers, temperature-controlled enclosures, and Raspberry Pi or Arduino-based IoT projects. It is also commonly used in student engineering projects because of its simple operation and ease of integration with microcontrollers.

In summary, the TEC1-12706 Peltier Module is a reliable, compact, and efficient thermoelectric device designed for small-scale cooling and heating applications. Its ability to generate a temperature difference without moving parts makes it an excellent choice for educational projects, embedded systems, portable cooling devices, and electronic thermal management. When combined with a suitable heatsink, cooling fan, and stable 12 V power supply, the TEC1-12706 provides effective and dependable temperature control for a wide range of applications.
