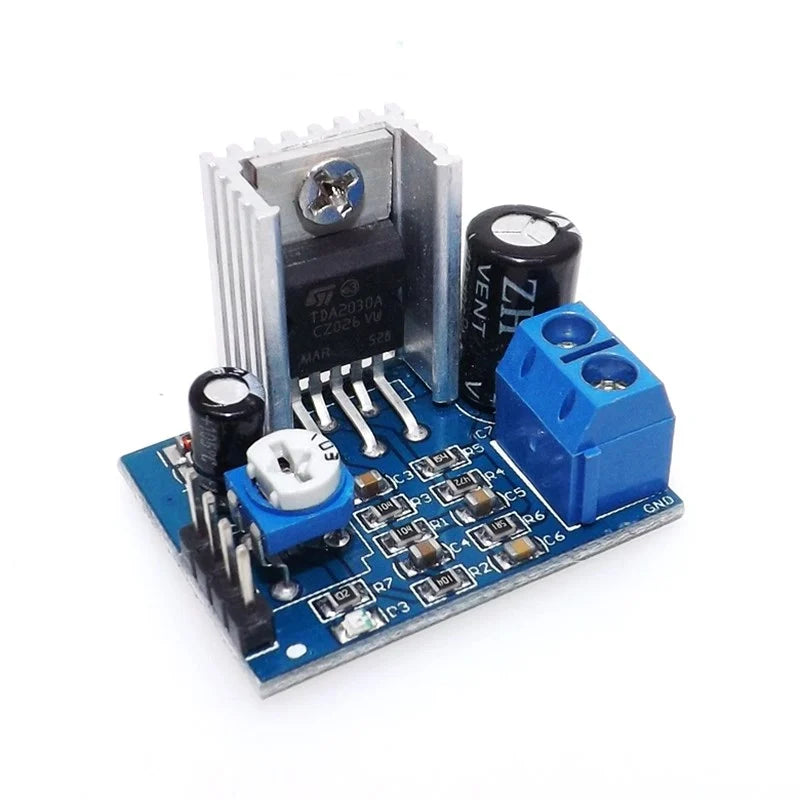

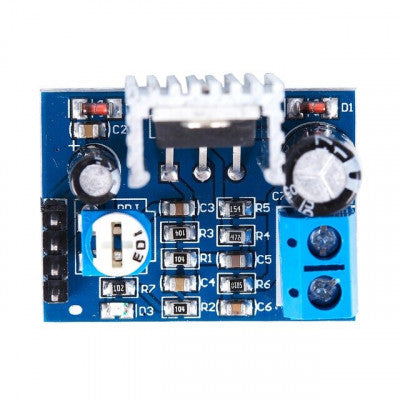

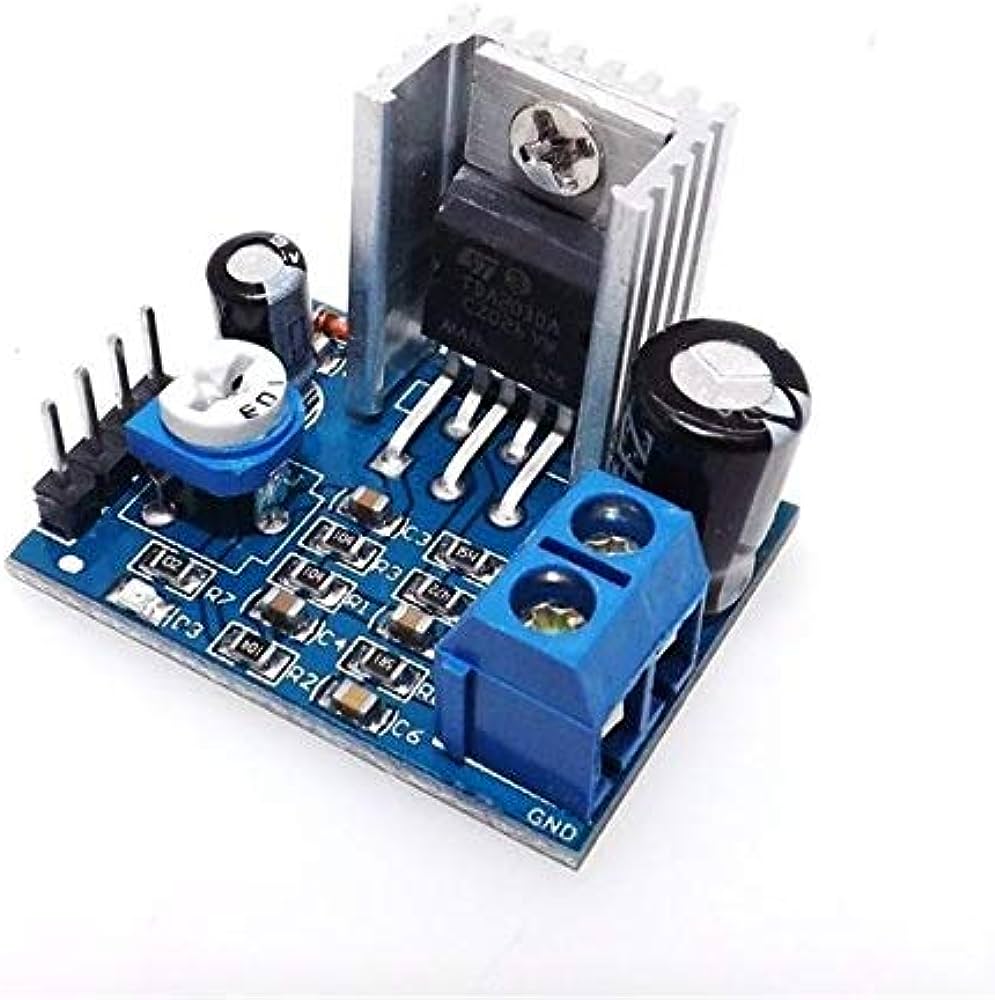

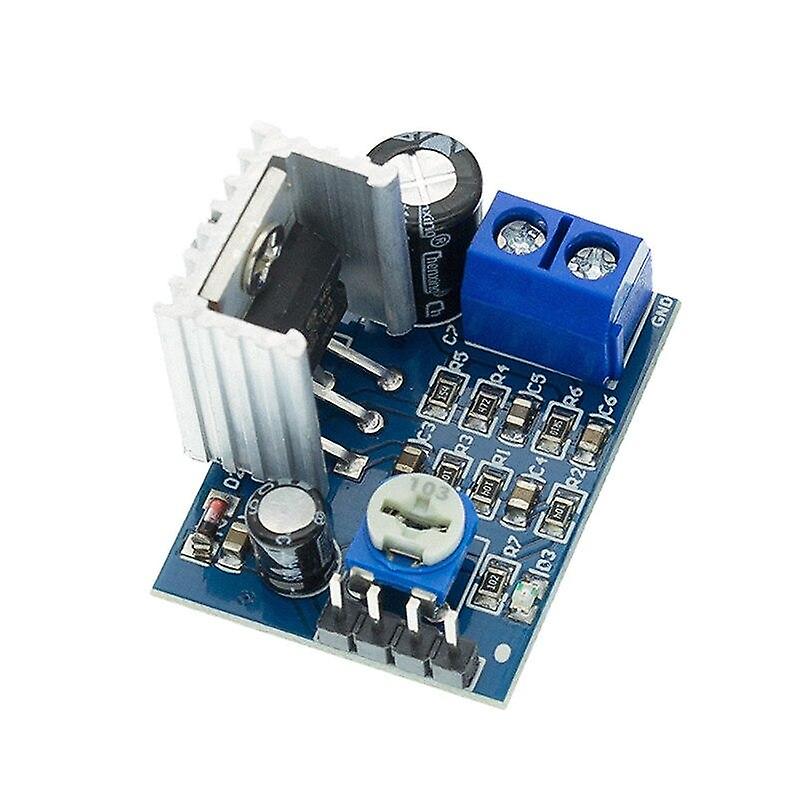

TDA2030A 6–12V 18W Audio Amplifier Module

The TDA2030A 6–12V 18W Audio Amplifier Module is a compact, efficient, and high-performance audio amplification solution designed for a wide range of electronic audio applications. Built around the popular TDA2030A audio amplifier integrated circuit, this module delivers clear, powerful, and low-distortion sound output while maintaining stable operation and energy efficiency. Its simple design, reliable performance, and ease of integration make it highly suitable for DIY electronics, portable speaker systems, educational projects, home audio systems, intercom devices, and embedded sound applications.

The TDA2030A amplifier IC is widely recognized for its excellent audio quality, thermal stability, low harmonic distortion, and dependable long-term operation. The module is designed to amplify low-level audio input signals into higher-power audio output capable of driving speakers directly. With proper power supply conditions and speaker matching, the module can provide output power up to approximately 18 watts, producing loud and rich sound suitable for both indoor and portable audio systems.

Operating within a DC voltage range of 6V to 12V, the amplifier module supports flexible power options including rechargeable batteries, DC adapters, portable power systems, and regulated power supplies. This versatility makes the module suitable for both stationary and battery-powered projects where efficient audio amplification is required.

The working principle of the module is based on analog audio signal amplification. The TDA2030A integrated circuit receives a low-amplitude audio input signal from sources such as mobile phones, MP3 players, microphones, audio decoders, Bluetooth modules, or microcontrollers. The amplifier then increases the signal power while maintaining audio clarity and minimizing distortion. The amplified output signal is sent to an external speaker, producing high-quality sound with improved volume and audio performance.

The module is generally configured for mono audio output and is compatible with commonly used 4-ohm and 8-ohm speakers. Its efficient amplifier design ensures good sound reproduction across a wide audio frequency range, making it suitable for voice, music, alarms, and general sound applications.

One of the key advantages of the TDA2030A amplifier module is its low distortion performance. The IC is specifically engineered to reduce unwanted noise, signal clipping, and harmonic distortion, allowing cleaner audio output even at higher volume levels. This improves listening quality and enhances overall audio system performance.

The module includes carefully selected onboard electronic components such as capacitors, resistors, filtering circuits, and heat management elements to ensure stable operation and long service life. Many versions of the module also include a heatsink attached to the TDA2030A IC to improve thermal dissipation during continuous high-power operation.

Its compact PCB design allows easy installation into portable speaker enclosures, educational kits, automation systems, and custom electronic projects where space is limited. Clearly labeled power input, audio input, and speaker output terminals simplify wiring and make the module beginner-friendly for electronics enthusiasts and students.

The TDA2030A audio amplifier module is widely used
