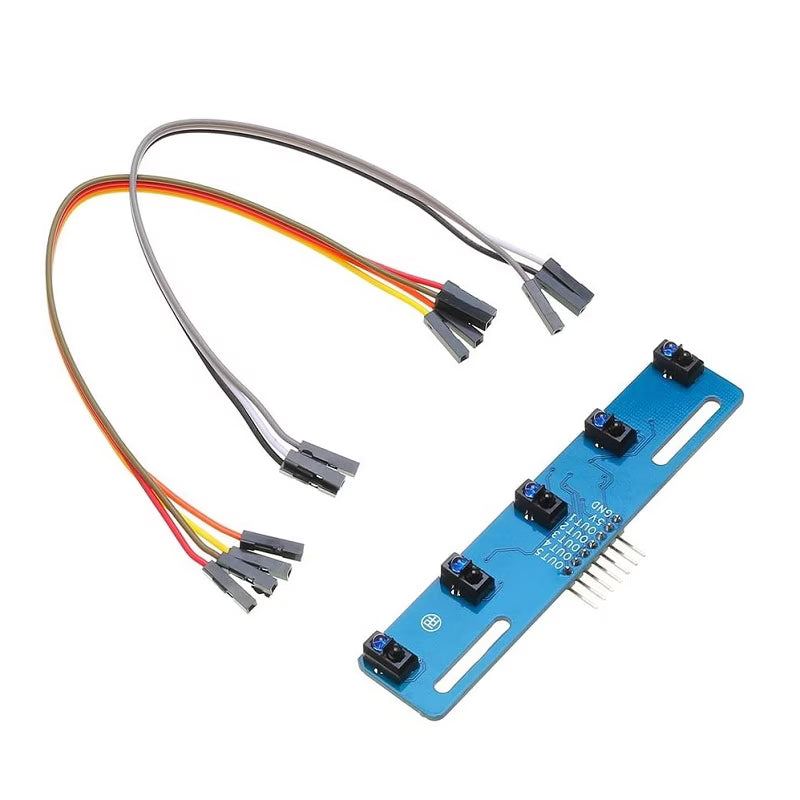

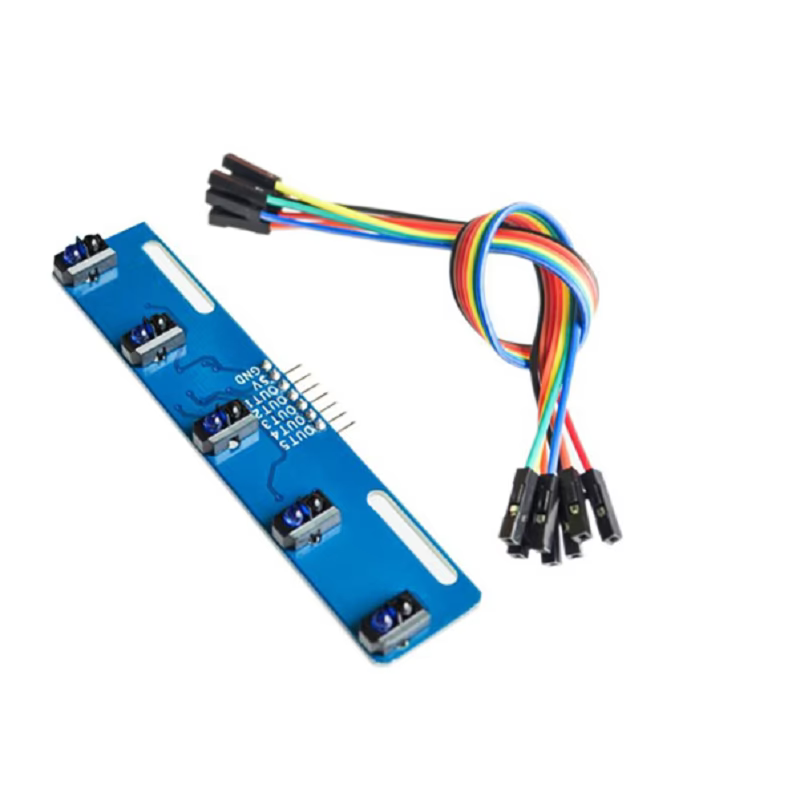

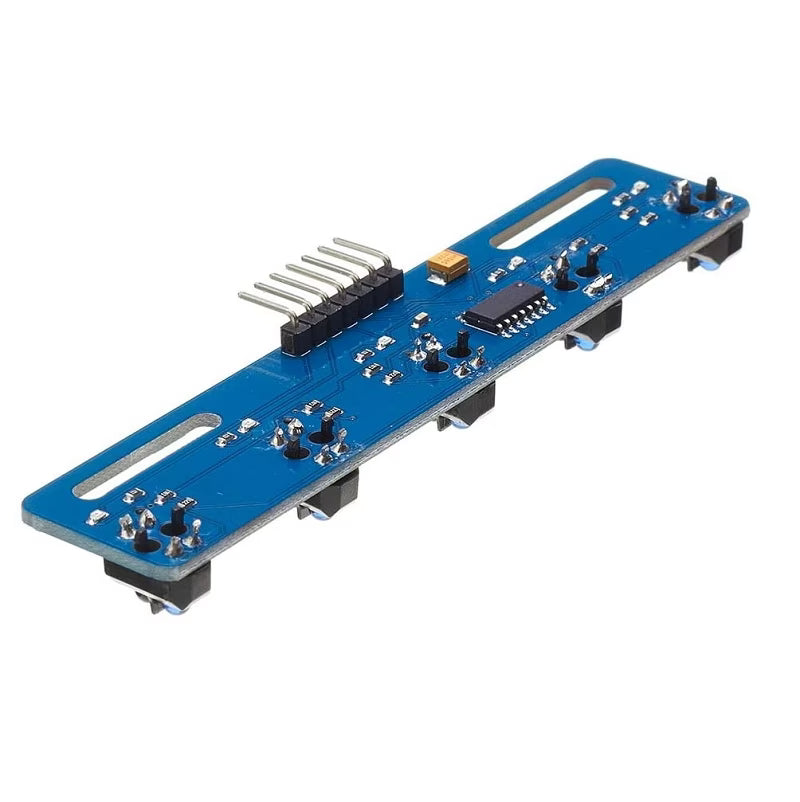

TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor

TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor is a multi-channel infrared tracking sensor module designed for line-following robots, intelligent robotic vehicles, and automatic tracking applications. It uses five TCRT5000L infrared reflective sensors arranged in a row to detect differences in surface reflectivity, allowing a robot or control system to identify and follow a line or track on the ground. The module can detect the contrast between dark and light surfaces, making it especially suitable for black-line and white-background tracking applications.

The five infrared sensor channels provide multiple detection points across the width of the module. This arrangement enables the controller to determine the position of a line more accurately than a single IR sensor. By reading the signals from the five sensors, a microcontroller can identify whether the line is positioned toward the left, center, or right side of the robot and adjust the speed of the motors accordingly. This makes the module an excellent choice for developing autonomous line-following robots and intelligent navigation systems.

The TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor typically consists of five infrared LED and phototransistor sensor pairs. The IR LEDs emit infrared light toward the surface, while the phototransistors detect the amount of reflected infrared light. Dark surfaces generally reflect less infrared light, while lighter surfaces reflect more, allowing the module to distinguish between different surface conditions. The sensor output can then be processed by an Arduino, ESP32, or other compatible microcontroller to control the movement of a robot.

The module is designed for easy integration with microcontroller-based projects and is commonly used with Arduino boards and other development platforms. Depending on the specific module version, it may provide digital sensor outputs for each channel, allowing the controller to monitor the individual sensor states. Some versions may also include adjustable sensitivity or onboard signal processing components for easier integration into robotic projects.

The TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor is widely used in line-following robots, track-following vehicles, automatic guided vehicles, robotics competitions, educational robotics kits, and DIY automation projects. It can also be used for applications involving surface detection, edge detection, position tracking, and basic object or pattern recognition based on infrared reflection.

The five-channel arrangement provides better tracking performance compared to single-sensor or dual-sensor modules. When combined with a suitable motor driver and microcontroller, the module allows a robot to continuously monitor the track and make real-time directional corrections. This helps the robot maintain its position on a predefined path and navigate curves and turns more effectively.

The module is compact and lightweight, making it easy to mount underneath a robot chassis. Its simple interface and practical design make it suitable for beginners who are learning about robotics, sensors, and embedded programming, as well as experienced makers and engineers developing autonomous robotic systems.

Key Features:

• 5-channel infrared tracking sensor module

• Uses TCRT5000L infrared reflective sensors

• Designed for line-following and track-following applications

• Five sensors arranged in a single row for improved line detection

• Detects differences between dark and light surfaces

• Suitable for black-line and white-background tracking

• Provides multiple sensing points for accurate line positioning

• Useful for detecting left, center, and right line positions

• Suitable for autonomous robot navigation

• Easy to interface with microcontrollers

• Compatible with Arduino and other development boards

• Suitable for robotics and automation projects

• Compact and lightweight design

• Easy to mount on robot car chassis

• Ideal for line-following robot competitions

• Useful for educational and STEM robotics projects

• Suitable for DIY robotic vehicles

• Can be used with motor drivers for automatic direction control

• Useful for edge detection and surface tracking applications

• Suitable for hobbyists, students, makers, and engineers

The TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor is an excellent choice for building accurate and responsive line-following robots and autonomous vehicles. With five infrared sensing channels, it provides a practical solution for detecting track position and enabling real-time movement correction. It is ideal for Arduino robotics projects, educational experiments, robotics competitions, DIY autonomous vehicles, and embedded control applications where reliable infrared tracking is required.
