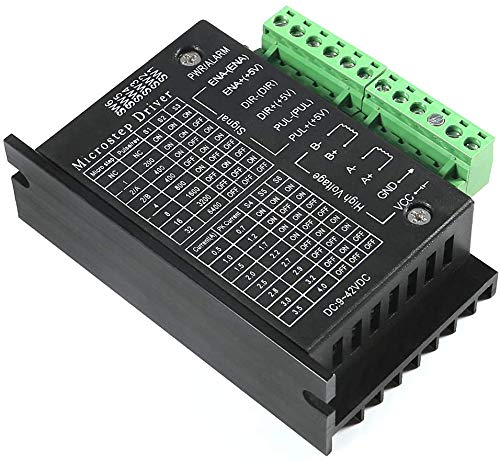

TB6600 Stepper Motor Driver

The TB6600 Stepper Motor Driver is a high-performance and reliable motor control module designed to drive bipolar stepper motors with exceptional precision, smooth motion, and powerful torque output. It is widely used in CNC machines, laser engraving machines, 3D printers, robotic systems, automated production equipment, packaging machinery, textile machines, pick-and-place systems, and various industrial automation applications where accurate and dependable motion control is essential. Combining advanced motor driving technology with robust protection features, the driver offers excellent performance, easy configuration, and long-term operational reliability for both professional and hobbyist projects.

The TB6600 Stepper Motor Driver operates over a wide DC input voltage range, typically from 9V to 42V DC, with some versions supporting up to approximately 50V DC. This wide operating voltage allows the driver to work efficiently with a broad selection of stepper motors while delivering improved torque, higher operating efficiency, and smoother motion. The driver can provide an adjustable output current of up to approximately 4.0A to 4.5A, making it suitable for driving medium and large NEMA stepper motors used in demanding mechanical applications.

One of the key features of the TB6600 Stepper Motor Driver is its support for multiple microstepping resolutions. Depending on the model, users can select full-step, half-step, quarter-step, eighth-step, sixteenth-step, and up to 1/32 microstepping. Microstepping divides each full motor step into smaller increments, resulting in smoother motor rotation, reduced vibration, lower audible noise, improved positioning accuracy, and enhanced motion control. This feature is especially valuable in CNC machining, precision engraving, and automated positioning systems where accurate movement is critical.

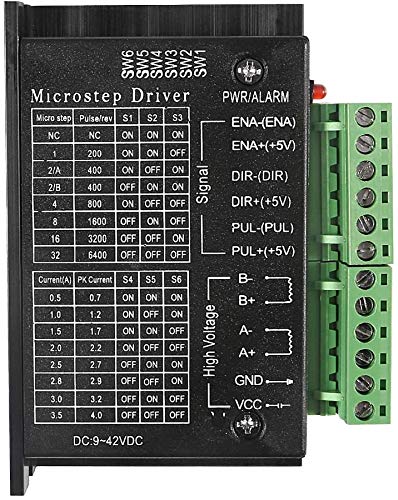

The TB6600 Stepper Motor Driver offers convenient configuration through built-in DIP switches located on the driver housing. These switches allow users to quickly adjust the output current and select the desired microstepping resolution without requiring additional programming or software. This flexible configuration enables the driver to be matched precisely to different motor specifications and application requirements while helping to optimize performance and reduce motor heating.

The TB6600 Stepper Motor Driver uses industry-standard STEP and DIR input signals for motor control, making integration with various controllers simple and efficient. It is fully compatible with Arduino, ESP32, Raspberry Pi, STM32, PIC microcontrollers, GRBL controllers, Mach3 breakout boards, PLC systems, DSP controllers, CNC motion controllers, and many other industrial automation platforms. The simple control interface allows developers to implement accurate speed control, position control, acceleration, deceleration, and direction changes with minimal programming complexity.

The TB6600 Stepper Motor Driver incorporates optocoupler-isolated input circuits that electrically isolate the control electronics from the high-power motor circuit. This isolation significantly improves resistance to electrical noise, voltage spikes, and electromagnetic interference, ensuring stable communication between the controller and the driver even in electrically noisy industrial environments. The isolated inputs also help protect sensitive control hardware from accidental electrical damage.

To ensure safe and dependable operation, the TB6600 Stepper Motor Driver includes multiple built-in protection mechanisms. These safety features typically include over-current protection, over-voltage protection, thermal overload protection, short-circuit protection, and reverse connection protection on some versions. If abnormal operating conditions occur, the protection circuitry helps prevent damage to both the driver and the connected stepper motor, improving overall system reliability and reducing maintenance requirements.

Efficient thermal management is another important advantage of the TB6600 Stepper Motor Driver. The driver is equipped with a large aluminum heat sink that efficiently dissipates heat generated during operation. This cooling design allows the driver to maintain stable performance during extended periods of continuous use while reducing the risk of overheating. For applications involving high current or continuous heavy loads, additional cooling with external fans can further improve reliability and extend component lifespan.

The TB6600 Stepper Motor Driver delivers excellent motion performance by providing smooth acceleration, accurate positioning, consistent torque output, and stable motor operation across a wide range of speeds. Proper current adjustment minimizes motor heating while maximizing torque, resulting in higher efficiency, quieter operation, and improved overall system performance. The driver's advanced current control technology also helps reduce resonance and vibration, producing smoother mechanical movement.

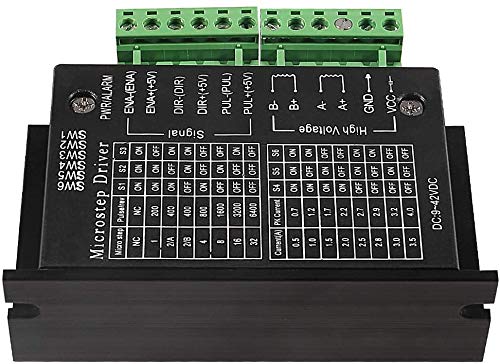

Installation of the TB6600 Stepper Motor Driver is straightforward due to its clearly labeled power, motor, and signal terminals. It can be easily integrated into control panels, CNC machines, robotic systems, automated production equipment, laboratory instruments, educational training systems, and custom engineering projects. Its compact design allows convenient mounting while maintaining excellent accessibility for wiring and configuration.

The TB6600 Stepper Motor Driver is widely recognized for its combination of high power capability, precision control, simple setup, durable construction, advanced protection features, and broad controller compatibility. Whether used for CNC machining, laser cutting, robotic motion control, automated manufacturing, or educational development projects, it provides reliable, accurate, and efficient stepper motor control. Its versatility, stable performance, long service life, and cost-effective design make it one of the most trusted stepper motor drivers for both industrial and DIY motion control applications.
