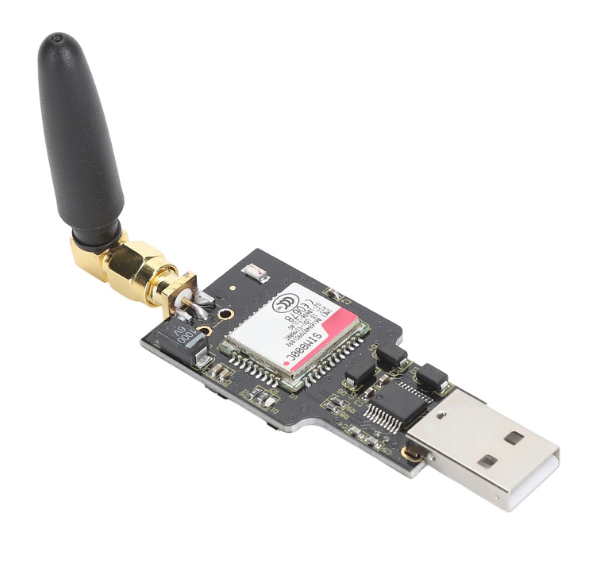

Wireless Bluetooth USB to GSM Serial GPRS SIM800C Module

The Wireless Bluetooth USB to GSM Serial GPRS SIM800C Module is a compact wireless communication module that combines USB-to-UART serial communication with the SIM800C GSM/GPRS module, enabling users to interface a computer or microcontroller with GSM cellular networks. It supports voice calls, SMS messaging, GPRS data communication, and AT command control, making it suitable for IoT devices, remote monitoring, industrial automation, telemetry, GPS tracking, home automation, embedded systems, and DIY electronics projects.

The module is built around the SIMCom SIM800C GSM/GPRS modem, which supports Quad-Band GSM frequencies (850/900/1800/1900 MHz), allowing it to operate on GSM networks in many countries worldwide. It also includes a USB-to-Serial converter, making it easy to connect directly to a computer without requiring an external USB-to-TTL adapter.

The module consists of the following main components:

• SIM800C GSM/GPRS communication chip

• USB-to-UART serial interface

• SIM card holder

• GSM antenna connector or onboard antenna

• USB interface

• UART communication pins (TX, RX)

• Power regulation circuit

• Status LEDs

• Reset and power control circuitry

The working principle of the Wireless Bluetooth USB to GSM Serial GPRS SIM800C Module begins by inserting a valid GSM SIM card into the onboard SIM card holder. After supplying the required operating voltage and connecting the module through the USB interface or UART pins, the module registers with the local GSM network. Communication with the module is performed using AT commands sent from a computer or microcontroller through the serial interface. Based on these commands, the module can make voice calls, send and receive SMS messages, establish GPRS internet connections, or transmit data over the cellular network.

The USB interface allows the module to be connected directly to a Windows, Linux, or macOS computer for configuration, testing, and serial communication. The UART interface enables direct integration with microcontrollers such as Arduino, ESP32, STM32, PIC, AVR, and Raspberry Pi.

Typical specifications include:

• Module: SIM800C GSM/GPRS Module

• Communication Technology: GSM/GPRS

• Network Bands: Quad-Band 850/900/1800/1900 MHz

• Data Communication: GPRS Class 12

• Voice Communication: Supported

• SMS: Send and Receive

• Control Interface: AT Commands

• USB Interface: USB-to-UART

• UART Interface: TTL Serial

• SIM Card: Standard GSM SIM Card

• Operating Voltage: Typically 3.4V–4.4V DC (depending on module design)

• Serial Communication: UART (TX/RX)

The module supports various communication functions, including:

• Voice calls

• SMS sending and receiving

• GPRS internet connectivity

• TCP/IP communication

• HTTP communication

• FTP data transfer

• Serial AT command control

• Caller ID

• DTMF detection

• Network status monitoring

The module is compatible with numerous development platforms, including:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• 8051 Development Boards

The applications of the Wireless Bluetooth USB to GSM Serial GPRS SIM800C Module include IoT systems, GSM-based automation, remote monitoring, SMS alert systems, home automation, industrial automation, GPS vehicle tracking, smart agriculture, wireless sensor networks, security systems, telemetry, vending machines, energy monitoring, remote data logging, embedded systems, educational electronics, engineering projects, laboratory experiments, prototype development, and DIY electronics.

The advantages of the module include Quad-Band GSM support, USB and UART connectivity, compact design, low power consumption, reliable GSM communication, support for voice, SMS, and GPRS services, easy AT command programming, wide compatibility with microcontrollers, simple integration into embedded systems, and stable wireless communication.
