SIM800A Quad-Band GSM/GPRS Module with RS232 Interface

The SIM800A Quad-Band GSM/GPRS Module with RS232 Interface is a compact wireless communication module designed to provide GSM voice communication, SMS messaging, and GPRS data transmission over cellular networks. It is based on the SIMCom SIM800A GSM/GPRS modem and includes an RS232 serial interface, allowing easy communication with computers, PLCs, industrial controllers, and microcontrollers. The module is widely used in IoT systems, industrial automation, remote monitoring, GPS tracking, home automation, wireless data logging, security systems, telemetry, embedded systems, and DIY electronics projects.

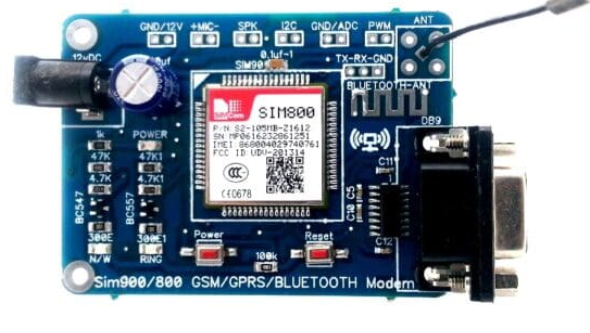

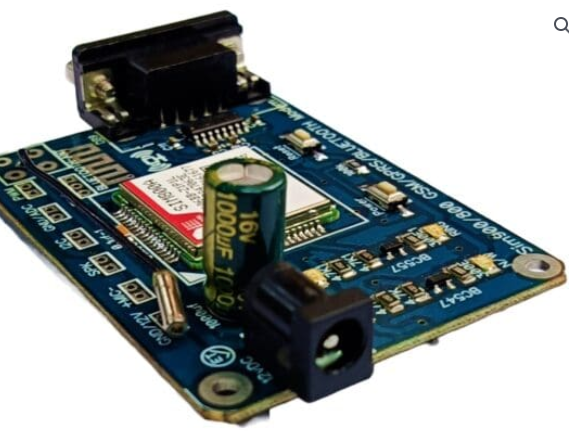

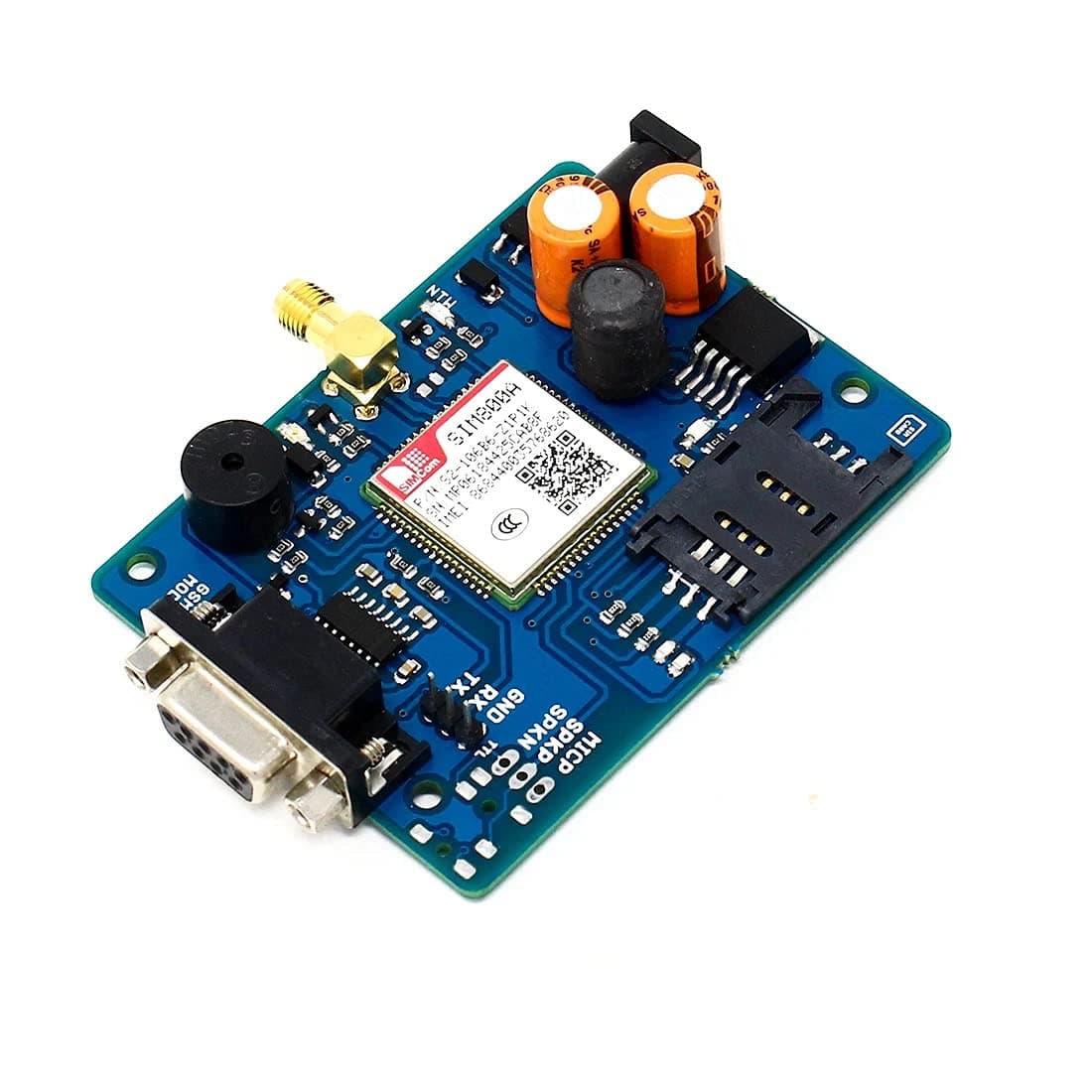

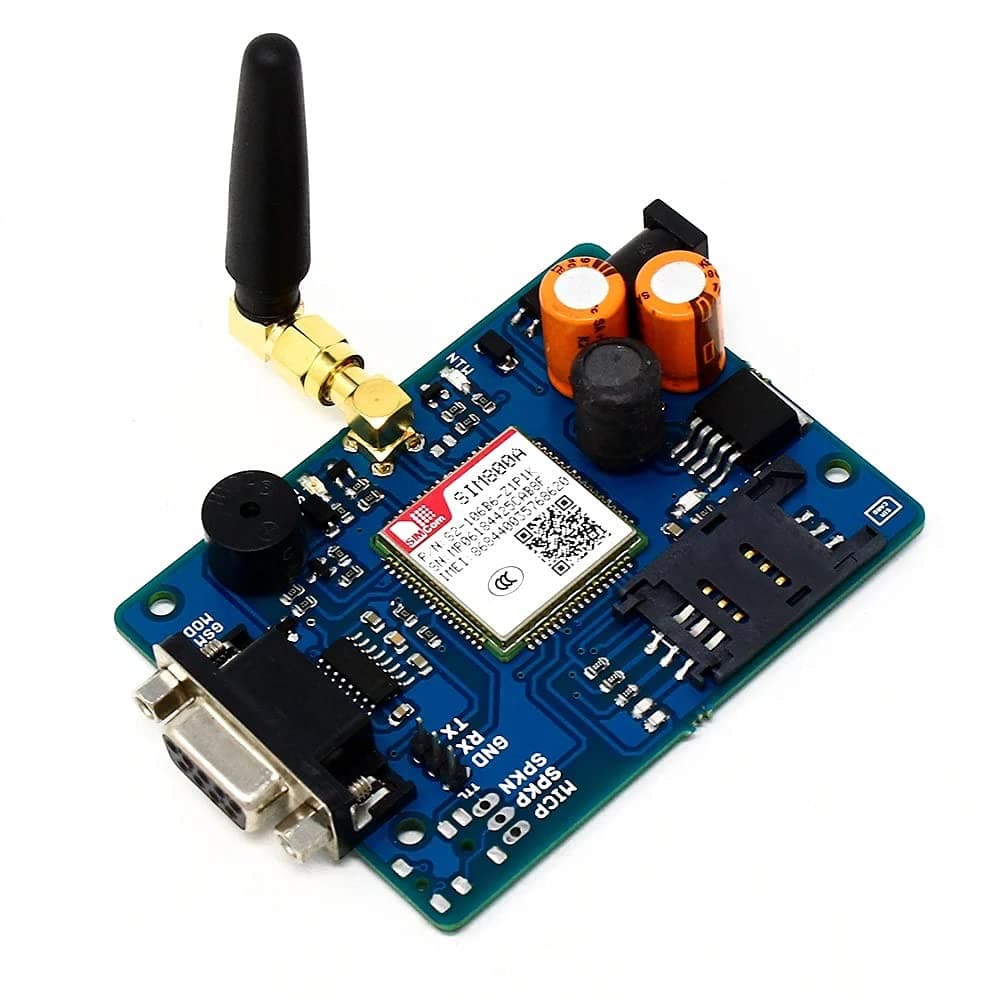

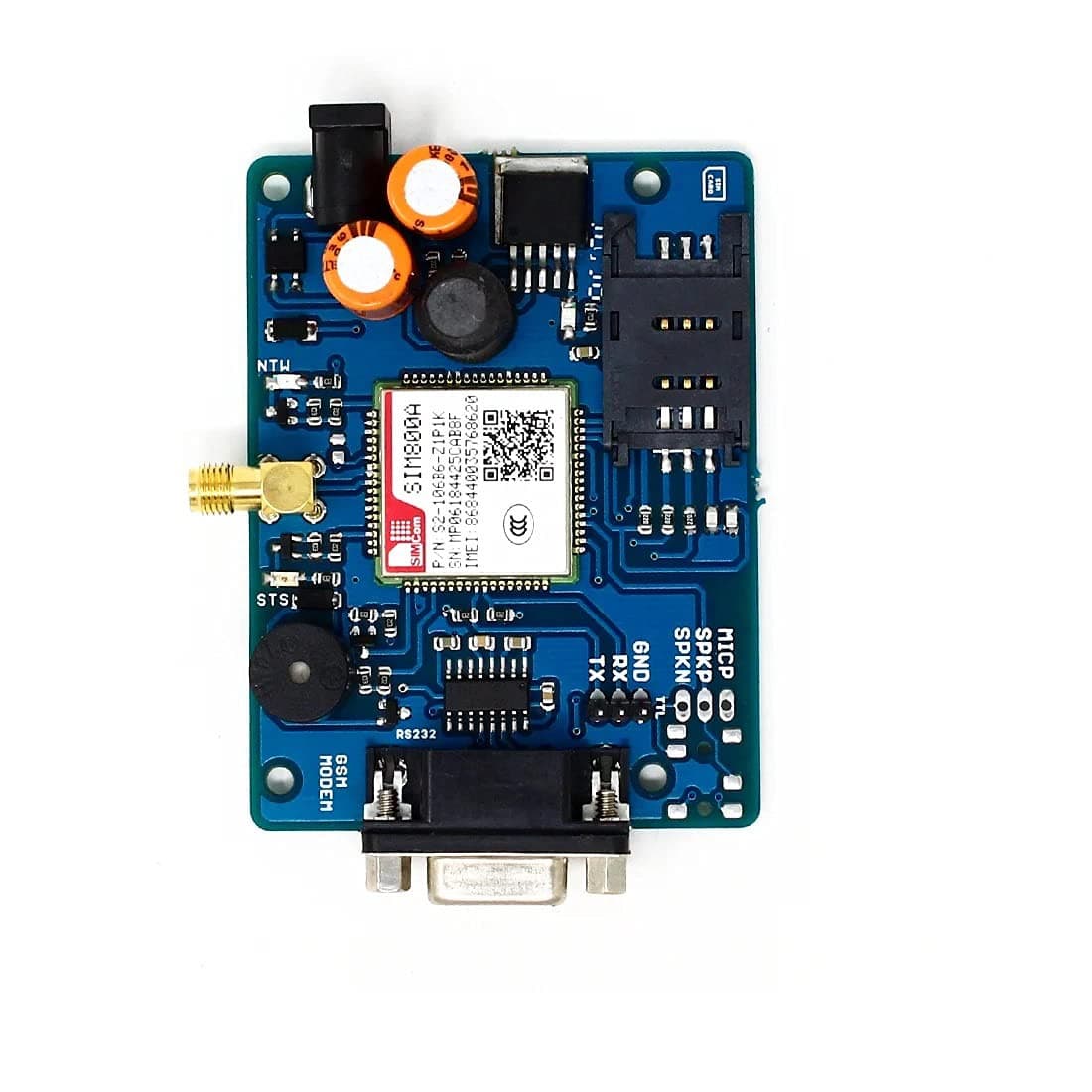

The module consists of the SIM800A GSM/GPRS modem, an RS232 level conversion circuit (typically using a MAX232 IC or equivalent), a SIM card holder, a GSM antenna connector, power regulation circuitry, status LEDs, a DB9 RS232 serial connector, power input terminals, and control circuitry. The onboard RS232 interface converts standard TTL serial signals into RS232 voltage levels, making the module compatible with desktop computers, industrial controllers, and serial communication equipment.

The working principle of the SIM800A Quad-Band GSM/GPRS Module begins when a valid GSM SIM card is inserted into the SIM card holder. After power is applied, the module searches for and registers with the available GSM network. Communication with the module is achieved by sending AT commands through the RS232 serial interface from a computer, PLC, or microcontroller. The SIM800A processes these commands to perform various communication functions such as making voice calls, sending and receiving SMS messages, establishing GPRS internet connections, and transmitting data over the GSM network.

The module supports Quad-Band GSM frequencies (850/900/1800/1900 MHz), enabling operation on compatible GSM networks in many countries around the world. It supports GPRS Class 12 for wireless data communication and can be used for internet-based applications such as HTTP requests, TCP/IP communication, FTP file transfer, and remote server communication.

Typical specifications include:

• Module: SIM800A GSM/GPRS Communication Module

• Communication Technology: GSM/GPRS

• Frequency Bands: Quad-Band 850/900/1800/1900 MHz

• Voice Calls: Supported

• SMS: Send and Receive

• GPRS Data: Supported (Class 12)

• Communication Interface: RS232 Serial (DB9)

• Control Protocol: AT Commands

• SIM Card Type: Standard GSM SIM Card

• Operating Voltage (Module): Typically 3.4V–4.4V DC

• Power Supply (RS232 Board): Commonly 5V–12V DC (depends on board design)

The RS232 interface allows direct communication with:

• Desktop Computers

• Industrial PCs

• PLC Controllers

• SCADA Systems

• Embedded Controllers

• Serial Communication Equipment

The module is also compatible with microcontrollers through an RS232-to-TTL converter or by using the onboard interface when supported, including:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• 8051 Development Boards

The module supports numerous communication features, including:

• Voice calling

• SMS sending and receiving

• GPRS internet connectivity

• TCP/IP communication

• HTTP protocol

• FTP file transfer

• Caller ID

• DTMF detection

• Network registration monitoring

• Real-time serial communication using AT commands

The applications of the SIM800A Quad-Band GSM/GPRS Module with RS232 Interface include industrial automation, remote monitoring systems, IoT devices, GPS vehicle tracking, smart agriculture, wireless sensor networks, home automation, SMS alert systems, security systems, vending machines, telemetry, remote meter reading, energy monitoring, machine-to-machine (M2M) communication, laboratory experiments, educational electronics, embedded systems, prototype development, engineering projects, and DIY electronics.

The advantages of the module include Quad-Band GSM compatibility, built-in RS232 serial interface, reliable wireless communication, support for voice, SMS, and GPRS data, easy AT command programming, simple integration with industrial equipment, compact design, low power consumption, stable operation, and compatibility with a wide range of computers, PLCs, and microcontrollers.
