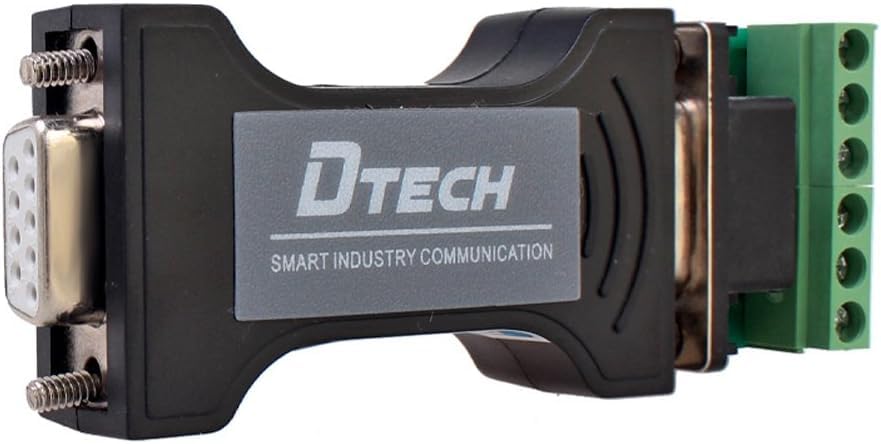

RS232 to RS485 Serial Port Data Interface Adapter Converter

An RS232 to RS485 Serial Port Data Interface Adapter Converter is a communication interface device that converts RS232 serial signals into RS485 differential signals, enabling reliable long-distance and multi-device serial communication. It serves as a bridge between equipment that uses the RS232 communication standard, such as personal computers, industrial controllers, PLCs, barcode scanners, and microcontrollers, and devices that operate using the RS485 standard, including industrial automation systems, sensors, data acquisition units, motor controllers, and Modbus networks. The converter translates the electrical signal levels and communication characteristics of RS232 into RS485 while maintaining the integrity of the transmitted data.

RS232 communication is designed primarily for short-distance, point-to-point connections, typically supporting cable lengths of up to 15 meters with a single transmitter and receiver. In contrast, RS485 uses balanced differential signaling, allowing communication over distances of up to 1200 meters and supporting multiple devices on the same communication bus. By converting RS232 signals to RS485, the adapter enables existing serial equipment to communicate efficiently over long distances and in electrically noisy industrial environments without significant signal degradation.

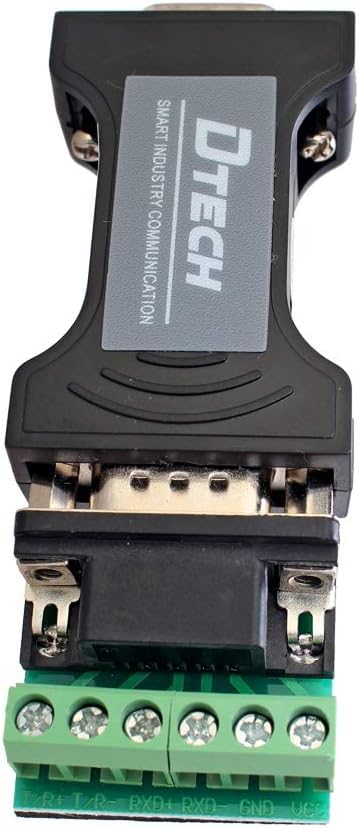

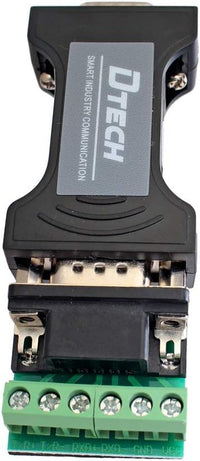

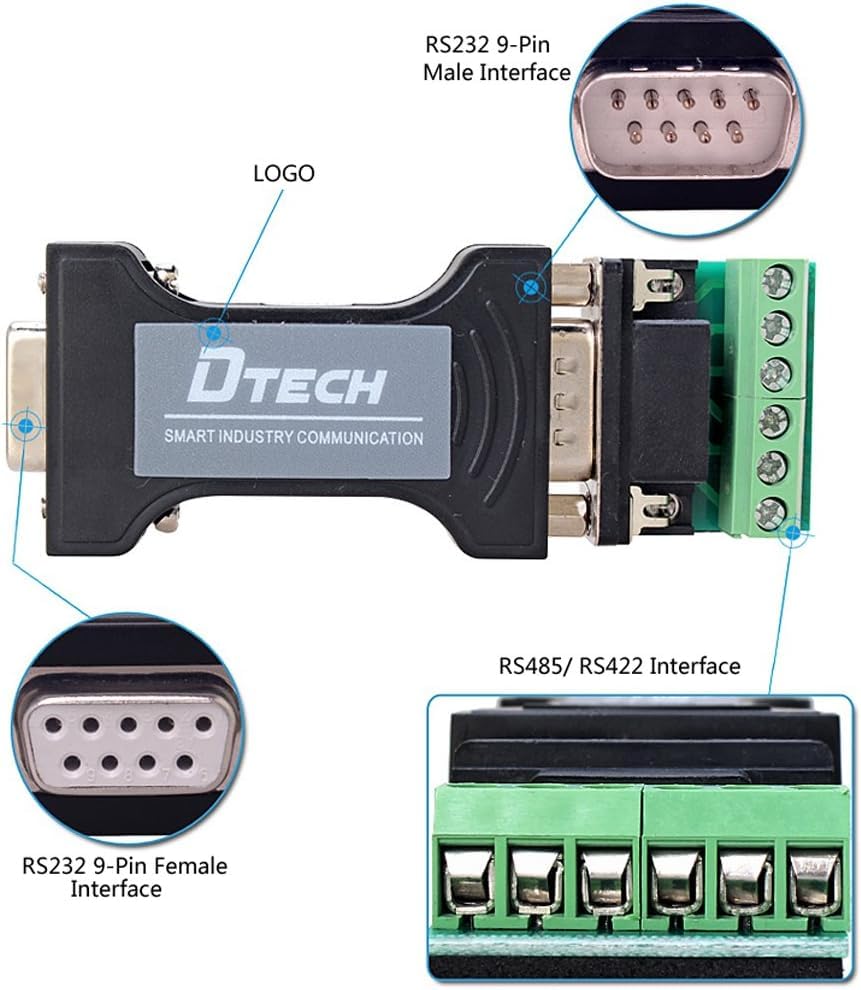

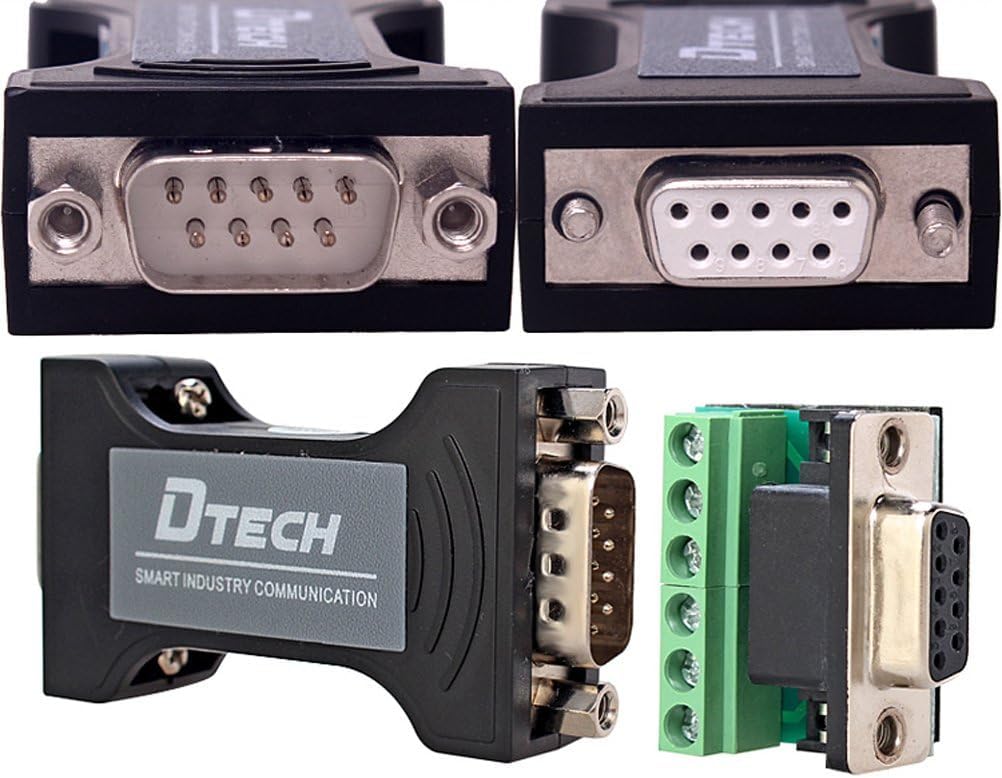

The converter generally features an RS232 interface through a DB9 connector or terminal connections and an RS485 interface using screw terminal blocks labeled A (+) and B (−). Many models support half-duplex communication, where data transmission and reception occur alternately over the same pair of wires. Some advanced converters also provide automatic transmit/receive direction control, eliminating the need for manual switching and simplifying system integration.

The device is widely used in industrial automation, building management systems, SCADA networks, factory control systems, energy monitoring, access control systems, security equipment, environmental monitoring, robotics, and embedded system applications. It is compatible with standard serial communication protocols such as Modbus RTU, ASCII, and other UART-based communication protocols, making it suitable for connecting legacy RS232 equipment to modern RS485 communication networks.

Most RS232 to RS485 converters are compact, lightweight, and designed for easy installation. They often include features such as surge protection, electrostatic discharge (ESD) protection, short-circuit protection, and electrical isolation to improve communication reliability and protect connected devices from electrical disturbances. Many converters operate without requiring external software or drivers, providing true plug-and-play functionality when connected to compatible serial ports.

The RS232 to RS485 Serial Port Data Interface Adapter Converter is an essential communication accessory for extending serial communication distance, improving noise immunity, enabling multi-device networking, and ensuring reliable data transmission in industrial, commercial, laboratory, and embedded electronic systems. Its robust performance, simple installation, and broad compatibility make it a valuable solution for integrating RS232-based devices into modern RS485 communication networks.
