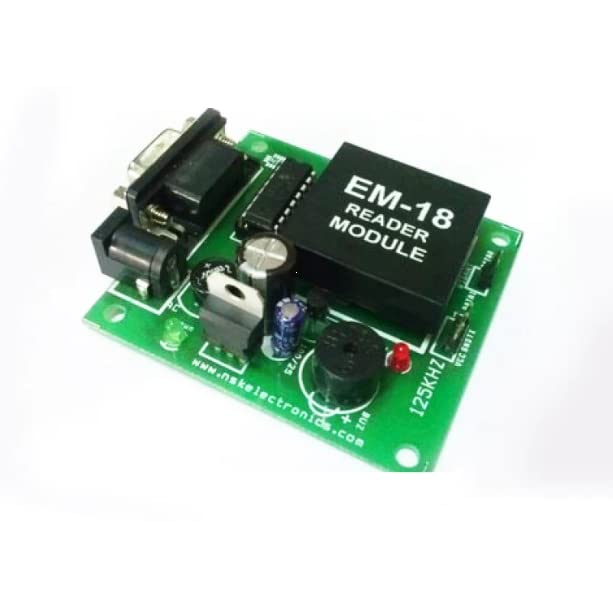

RFID Reader EM-18 Module with RS232

The RFID Reader EM-18 Module with RS232 is a compact, efficient, and widely used radio frequency identification (RFID) reader designed for reading 125 kHz RFID cards and tags. It is commonly used in embedded systems, security systems, access control applications, attendance monitoring systems, automation projects, and identification-based electronic applications. The module provides reliable and fast RFID tag detection while offering simple serial communication through an RS232 interface, making it easy to integrate with microcontrollers, computers, industrial controllers, and embedded platforms.

The EM-18 RFID reader operates using electromagnetic radio frequency technology to identify and read unique identification numbers stored inside compatible RFID tags or smart cards. It supports EM4100 and EM4102 compatible passive RFID cards and key tags operating at a frequency of 125 kHz. These passive RFID tags do not require an internal power source because they receive operating energy directly from the electromagnetic field generated by the RFID reader.

The working principle of the EM-18 RFID module is based on radio frequency induction. When a compatible RFID card or tag enters the reader’s electromagnetic field, the reader energizes the tag through inductive coupling. The tag then transmits its stored unique identification code back to the reader using radio frequency communication. The EM-18 module receives this data, decodes the identification number, and sends the output through the RS232 serial communication interface.

One of the major advantages of the EM-18 module is its plug-and-play operation and simple serial communication method. The module automatically reads RFID cards when they are brought near the reader without requiring complex command protocols or manual triggering. This simplifies development and integration in both beginner and advanced electronic projects.

The RS232 serial output interface enables easy communication with computers, industrial systems, Arduino boards using serial converters, Raspberry Pi systems, PLCs, and other embedded controllers. The serial output transmits the unique tag ID in readable digital format, allowing software applications or microcontrollers to process identification data for authentication, logging, or control purposes.

The EM-18 RFID Reader features fast and accurate tag reading performance with low latency, making it suitable for real-time identification systems. Its compact and lightweight design allows convenient installation in access panels, security devices, embedded enclosures, and automation systems.

The module operates with low power consumption, making it ideal for continuous operation in battery-powered systems, portable electronics, and energy-efficient embedded applications. Its durable construction ensures reliable long-term operation in educational, commercial, and industrial environments.

The EM-18 RFID Reader is extensively used in access control systems where only authorized users can gain entry using registered RFID cards or tags. When connected to microcontrollers or automation systems, the module can trigger door locks, relays, alarms, or authentication software based on the detected RFID ID.

In attendance management systems, the module can automatically record user attendance by reading RFID cards assigned to employees, students, or authorized personnel. The serial output data can be stored in databases, cloud platforms, or local systems for tracking and monitoring purposes.

The module is also highly popular in Arduino and Raspberry Pi projects because of its simple interfacing and widespread software support. Developers can easily integrate the module into smart home systems, automation projects, IoT applications, inventory systems, parking systems, and security devices using available RFID libraries and example codes.

Typical applications of the RFID Reader EM-18 Module with RS232 include:

RFID access control systems

Attendance management systems

Smart door locking systems

Security and authentication systems

Inventory tracking systems

Industrial automation systems

Arduino and Raspberry Pi projects

IoT identification systems

Parking management systems

Embedded authentication devices

Smart office automation

Educational electronics projects

The module generally provides a stable reading range suitable for short-distance RFID scanning applications. Proper positioning and compatible RFID tags ensure reliable and consistent reading performance.

Another advantage of the EM-18 module is its ease of integration into custom PCB designs, breadboards, and embedded prototypes. Its straightforward serial communication simplifies software development and reduces overall system complexity.

The availability of extensive tutorials, sample programs, and community support further enhances the usability of the EM-18 RFID reader for students, hobbyists, engineers, and developers working on embedded systems and automation applications.

Overall, the RFID Reader EM-18 Module with RS232 is a dependable, efficient, and easy-to-use RFID identification solution designed for secure and automated identification systems. Its 125 kHz operating frequency, compatibility with EM4100 and EM4102 tags, fast serial communication, low power consumption, and simple plug-and-play functionality make it an excellent choice for access control, attendance tracking, security systems, IoT projects, industrial automation, and embedded electronics development.
