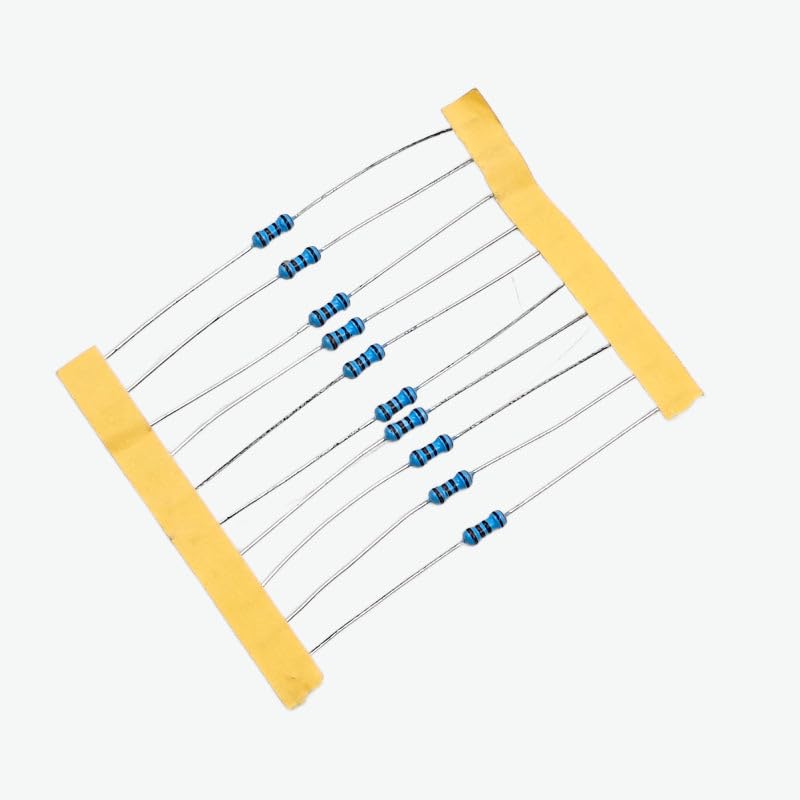

1M Ohm Resistor 1/4 Watt (Pack of 10)

The 1M Ohm 1/4 Watt Resistor is a fixed-value passive electronic component used to control current flow, divide voltage, bias transistors, and stabilize signals in electronic circuits. With a resistance value of 1,000,000 ohms (1MΩ) and a power rating of 0.25 watts (1/4W), it is ideal for high-resistance and low-current applications in electronics, embedded systems, Arduino projects, sensor circuits, and educational experiments.

Resistors are fundamental components in electronic circuit design and help regulate current and voltage levels for reliable operation. The 1MΩ resistor is commonly used in pull-up and pull-down resistor networks, voltage divider circuits, transistor biasing, RC timing circuits, signal conditioning applications, and high-impedance sensor interfaces. Its high resistance value allows only a very small amount of current to flow, making it suitable for precision signal and timing applications.

Manufactured using high-quality carbon film or metal film technology, these resistors provide stable resistance values, low noise performance, and excellent long-term reliability. Their standard through-hole axial-lead design allows easy installation on breadboards, prototype boards, and printed circuit boards (PCBs), making them suitable for both prototyping and permanent circuit assembly.

As a non-polarized component, the resistor can be connected in either direction without affecting circuit functionality, simplifying installation and use in a wide range of electronic projects.

Key Features

• Resistance Value: 1M Ohm (1,000,000Ω)

• Power Rating: 1/4 Watt (0.25W)

• Fixed resistor type

• Non-polarized component

• High resistance for low-current applications

• Stable electrical performance

• Low noise characteristics

• Durable and reliable construction

• Easy installation on breadboards and PCBs

Technical Specifications

• Resistance: 1MΩ

• Power Rating: 0.25W (1/4 Watt)

• Tolerance: Typically ±5% (may vary by manufacturer)

• Type: Carbon Film or Metal Film

• Mounting Type: Through-hole

• Lead Type: Axial leads

Working Principle

A resistor opposes the flow of electrical current within a circuit. According to Ohm’s Law (V = IR), it creates a voltage drop proportional to the current passing through it. The high resistance value of 1MΩ limits current flow significantly, making it useful for timing circuits, signal conditioning, and high-impedance applications.

Applications

• Arduino and microcontroller projects

• Pull-up and pull-down resistor circuits

• Voltage divider networks

• RC timing circuits

• Transistor biasing applications

• Sensor interface circuits

• Signal conditioning systems

• Embedded system development

• Electronics prototyping

• Educational and laboratory experiments

• Consumer electronics repair

• Measurement and monitoring circuits

Advantages

• Excellent for low-current applications

• Stable and accurate resistance value

• Long operational lifespan

• Easy installation and replacement

• Compact and lightweight design

• Cost-effective electronic component

• Suitable for students, hobbyists, and professionals

• Compatible with breadboards and PCBs

Package Contents

• 10 × 1M Ohm 1/4 Watt Resistors

The 1M Ohm 1/4 Watt Resistor (Pack of 10) is a reliable and versatile electronic component that provides effective voltage division, signal conditioning, timing control, and circuit stabilization. Its high resistance value makes it an essential component for high-impedance circuits, electronics prototyping, educational projects, and embedded system development.
