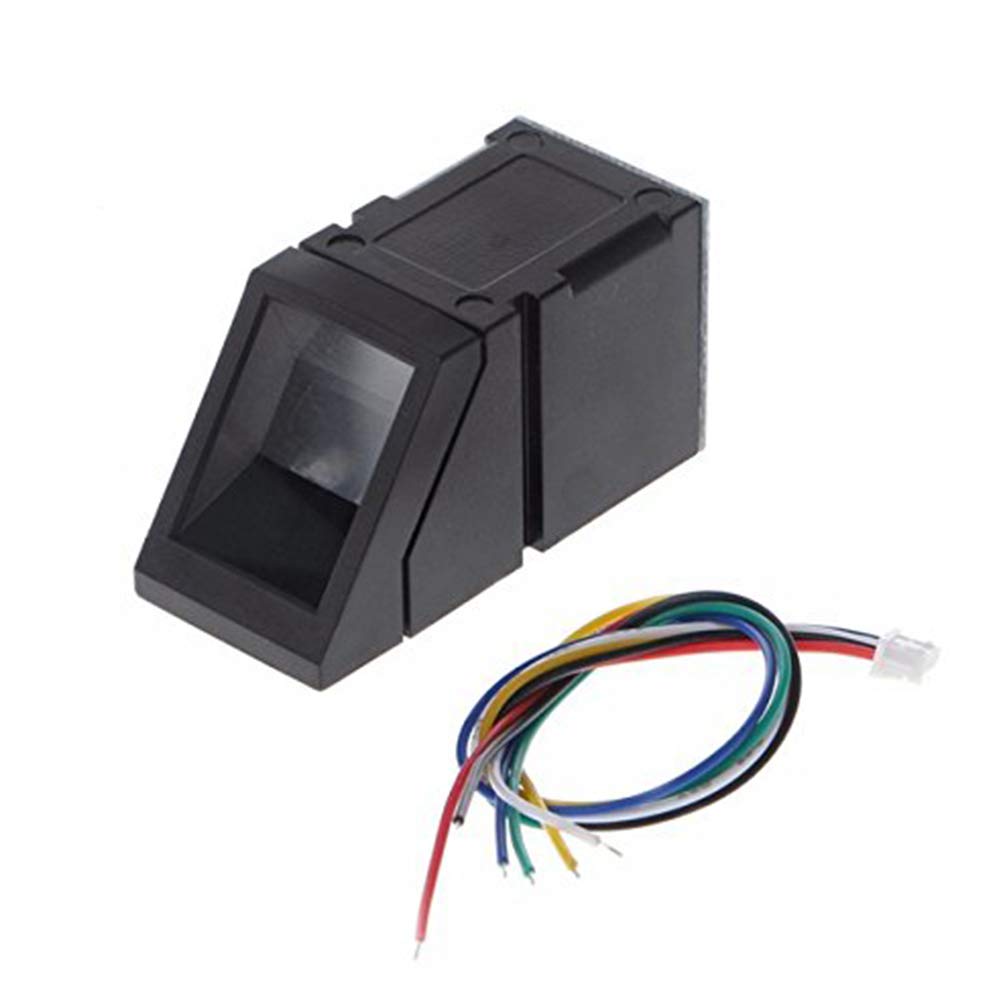

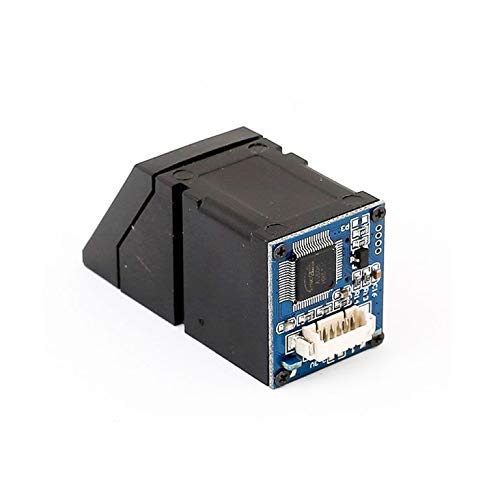

R307 Optical Fingerprint Sensor Module

The R307 Optical Fingerprint Sensor Module is a high-performance biometric authentication device designed for fingerprint recognition, identification, and access control applications. It uses advanced optical fingerprint scanning technology to capture high-resolution images of fingerprints and accurately identify or verify users based on their unique fingerprint patterns. The module integrates an optical sensor, image processing unit, fingerprint algorithm, and memory into a compact package, making it suitable for secure authentication systems, smart locks, attendance systems, safes, embedded devices, and Internet of Things (IoT) applications.

The R307 module operates using an optical imaging principle, where a built-in optical sensor captures the fingerprint image when a finger is placed on the sensing surface. The onboard processor extracts unique fingerprint features, converts them into digital templates, and stores them in its internal flash memory. During authentication, the newly scanned fingerprint is compared with the stored templates to verify or identify the user. This onboard processing significantly reduces the computational load on the connected microcontroller and enables fast and reliable fingerprint recognition.

The R307 Optical Fingerprint Sensor Module typically operates with a 3.3 V to 5 V DC power supply and communicates with external devices through a UART (TTL Serial) interface, making it easy to interface with Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, AVR, and other microcontrollers. The module supports fingerprint enrollment, verification, identification, deletion, and template management using standard serial communication commands. It can store up to approximately 1,000 fingerprint templates, depending on the module version, making it suitable for multi-user access control systems.

The sensor offers high recognition accuracy, fast response time, and reliable performance even under frequent use. It features a fingerprint image resolution of approximately 500 DPI (dots per inch), enabling detailed fingerprint acquisition for accurate matching. The module also includes an integrated LED that illuminates the scanning surface during fingerprint capture, improving image quality under various lighting conditions.

The R307 Fingerprint Sensor is widely used in biometric door locks, attendance management systems, security systems, electronic safes, smart lockers, access control systems, banking terminals, healthcare devices, IoT security projects, industrial automation, and embedded authentication systems. Its onboard fingerprint processing eliminates the need for complex image processing by the host microcontroller, making system development faster and more efficient.

The main advantages of the R307 Optical Fingerprint Sensor Module include high fingerprint recognition accuracy, fast authentication speed, onboard fingerprint processing, large fingerprint storage capacity, low power consumption, compact design, secure biometric authentication, and simple UART communication. It provides reliable protection against unauthorized access while offering convenient user authentication through fingerprint recognition.

Overall, the R307 Optical Fingerprint Sensor Module is a dependable, secure, and easy-to-integrate biometric solution for modern embedded systems. Its high-resolution optical sensing, onboard processing capabilities, and compatibility with popular microcontroller platforms make it an excellent choice for students, hobbyists, engineers, and professionals developing secure access control and biometric identification applications.
