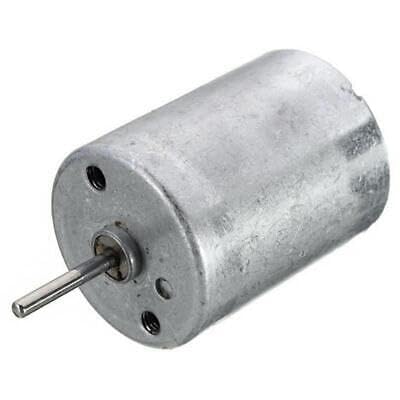

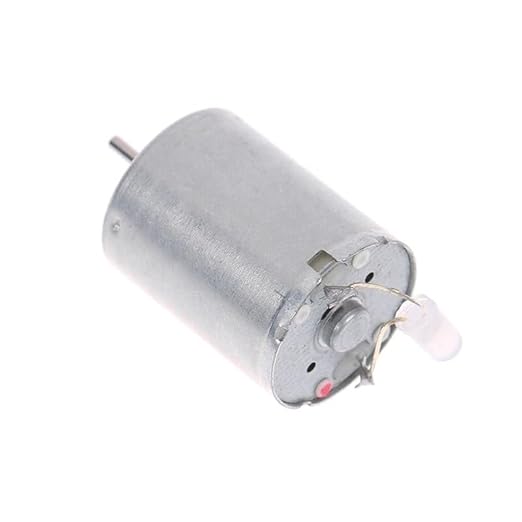

Power Generation DC Motor for Wind Mill

The Power Generation DC Motor for Wind Mill is a permanent magnet DC motor specially used as a small DC generator to convert mechanical energy into electrical energy. When the motor shaft is rotated by the blades of a windmill or another mechanical source, it generates a DC voltage that can be used to power small electronic devices, charge batteries, or demonstrate renewable energy concepts. It is widely used in wind energy models, science experiments, educational projects, DIY power generation systems, robotics, and prototype development.

The generator consists of a permanent magnet stator, armature (rotor), copper windings, commutator, carbon brushes, output shaft, ball bearings, and a durable metal housing. The permanent magnets create a constant magnetic field, while the armature contains copper windings that rotate inside the magnetic field. The commutator and carbon brushes collect the generated electrical current and deliver it to the output terminals.

The working principle of the Power Generation DC Motor is based on Faraday's Law of Electromagnetic Induction. When the wind rotates the windmill blades, the mechanical energy is transferred to the motor shaft. As the armature rotates inside the magnetic field created by the permanent magnets, the magnetic flux cutting through the copper windings changes continuously. This changing magnetic field induces an electrical voltage in the armature windings. The commutator converts the internally generated alternating current into a direct current (DC) output, which is available at the motor terminals. The faster the shaft rotates, the higher the generated voltage and power output.

The generator can produce different output voltages depending on the motor model and rotational speed. It is commonly used in 3V, 6V, 12V, and 24V low-voltage renewable energy projects. The generated power depends on factors such as wind speed, motor specifications, mechanical efficiency, and electrical load. For efficient operation, the generator is often connected to a rechargeable battery, charge controller, or voltage regulator to provide stable output.

The Power Generation DC Motor can also be driven manually using a hand crank, bicycle wheel, water turbine, or small mechanical engine to demonstrate electrical energy generation. It is compatible with microcontrollers such as Arduino, ESP32, Raspberry Pi (through suitable interface circuits), STM32, PIC, and AVR for monitoring generated voltage, current, and power in renewable energy projects.

The applications of the Power Generation DC Motor for Wind Mill include miniature wind turbines, renewable energy demonstration kits, science fair models, educational experiments, battery charging systems, portable generators, smart energy monitoring systems, IoT energy projects, hydroelectric models, mechanical energy conversion demonstrations, robotics, engineering laboratories, STEM education, and DIY electronics projects.

The advantages of the Power Generation DC Motor include simple construction, renewable energy generation, compact size, lightweight design, low maintenance, reliable performance, easy installation, direct DC output, compatibility with battery charging circuits, long service life, and suitability for educational and prototype applications. It provides an excellent way to demonstrate the conversion of wind energy into electrical energy.

In conclusion, the Power Generation DC Motor for Wind Mill is a compact and efficient DC generator designed to convert rotational mechanical energy into direct current electrical energy. Its durable construction, reliable operation, and compatibility with renewable energy systems make it an ideal component for wind turbine models, educational electronics, engineering experiments, battery charging applications, IoT systems, and renewable energy research projects.
