PN532 NFC (Near Field Communication) RFID V3 Module

The PN532 NFC (Near Field Communication) RFID V3 Module is a versatile wireless communication module designed for NFC (Near Field Communication) and 13.56 MHz RFID applications. It is based on the NXP PN532 NFC controller chip, which supports reading, writing, and emulating NFC tags as well as peer-to-peer communication between NFC-enabled devices. The module is widely used in access control systems, smart card applications, contactless payment prototypes, attendance systems, IoT devices, robotics, embedded systems, security projects, and Arduino-based applications.

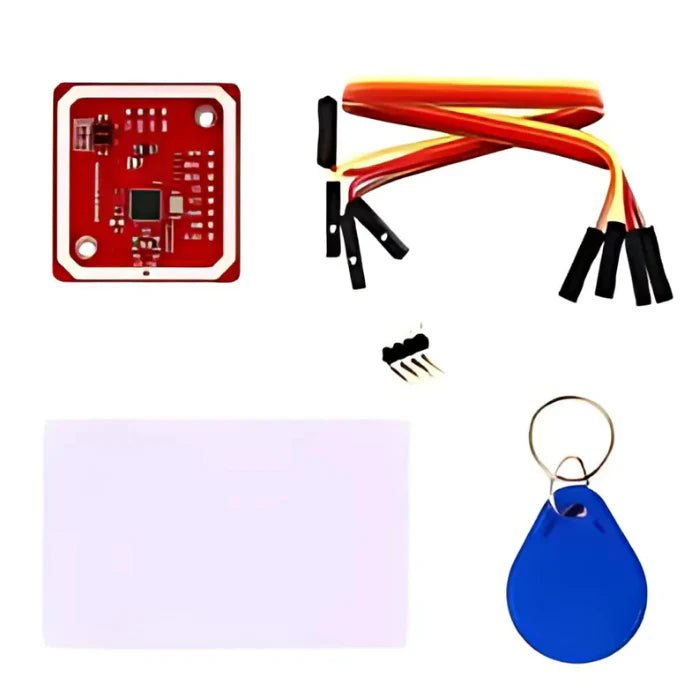

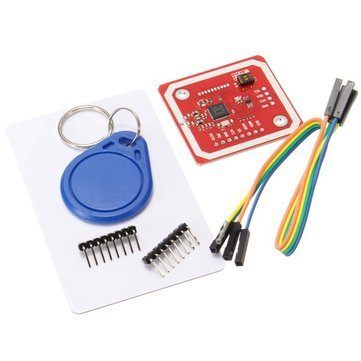

The PN532 V3 Module consists of the PN532 NFC controller IC, a 13.56 MHz antenna, onboard voltage regulator, communication interface selection switches or jumpers, status LEDs, and standard pin headers for easy connection. The module supports multiple communication interfaces, including I2C, SPI, and UART (Serial), making it compatible with a wide range of microcontrollers and development boards.

The working principle of the PN532 NFC Module is based on 13.56 MHz radio frequency communication. The onboard antenna generates an electromagnetic field that powers passive NFC tags or RFID cards placed within its operating range. When a compatible tag enters the field, the tag transmits its unique identification (UID) and stored data back to the PN532 module. The module processes this information and sends it to the connected microcontroller through the selected communication interface. In write mode, the module can store new information on writable NFC tags. It can also operate in peer-to-peer mode, allowing two NFC-enabled devices to exchange data directly.

The PN532 supports multiple NFC and RFID standards, including:

• ISO/IEC 14443 Type A

• ISO/IEC 14443 Type B

• MIFARE Classic

• MIFARE Ultralight

• NTAG Series

• FeliCa

• ISO/IEC 18092 (NFC Peer-to-Peer)

The module operates with a supply voltage of 3.3V to 5V DC (depending on the module version) and supports logic-level compatibility with most popular development boards. The typical NFC reading distance is 2 to 7 cm, depending on the antenna size, tag type, and environmental conditions.

The PN532 V3 Module is fully compatible with Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, and other microcontrollers. It is supported by widely available software libraries, making integration into embedded projects simple and efficient.

The module can perform several NFC functions, including:

• Reading NFC tags and RFID cards

• Writing data to compatible NFC tags

• NFC card emulation

• Peer-to-peer communication

• UID identification

• Authentication of MIFARE cards

• Contactless data exchange

The applications of the PN532 NFC RFID V3 Module include access control systems, smart door locks, attendance systems, RFID authentication, contactless payment prototypes, inventory management, smart home automation, IoT devices, robotics, asset tracking, electronic identification systems, mobile phone NFC communication, ticketing systems, library management, educational electronics, laboratory experiments, embedded systems, and DIY electronics projects.

The advantages of the PN532 NFC RFID V3 Module include multi-protocol NFC support, multiple communication interfaces (I2C, SPI, and UART), high compatibility with popular microcontrollers, low power consumption, compact design, fast communication speed, reliable contactless operation, support for read/write and card emulation modes, easy programming, and wide software library support.

In conclusion, the PN532 NFC Near Field Communication RFID V3 Module is a powerful and flexible NFC/RFID communication module that enables secure contactless data exchange, authentication, and wireless communication. Its support for multiple NFC standards, three communication interfaces, and compatibility with Arduino, ESP32, Raspberry Pi, STM32, and other development platforms make it an excellent choice for robotics, IoT, security systems, smart automation, educational projects, and embedded system development.
