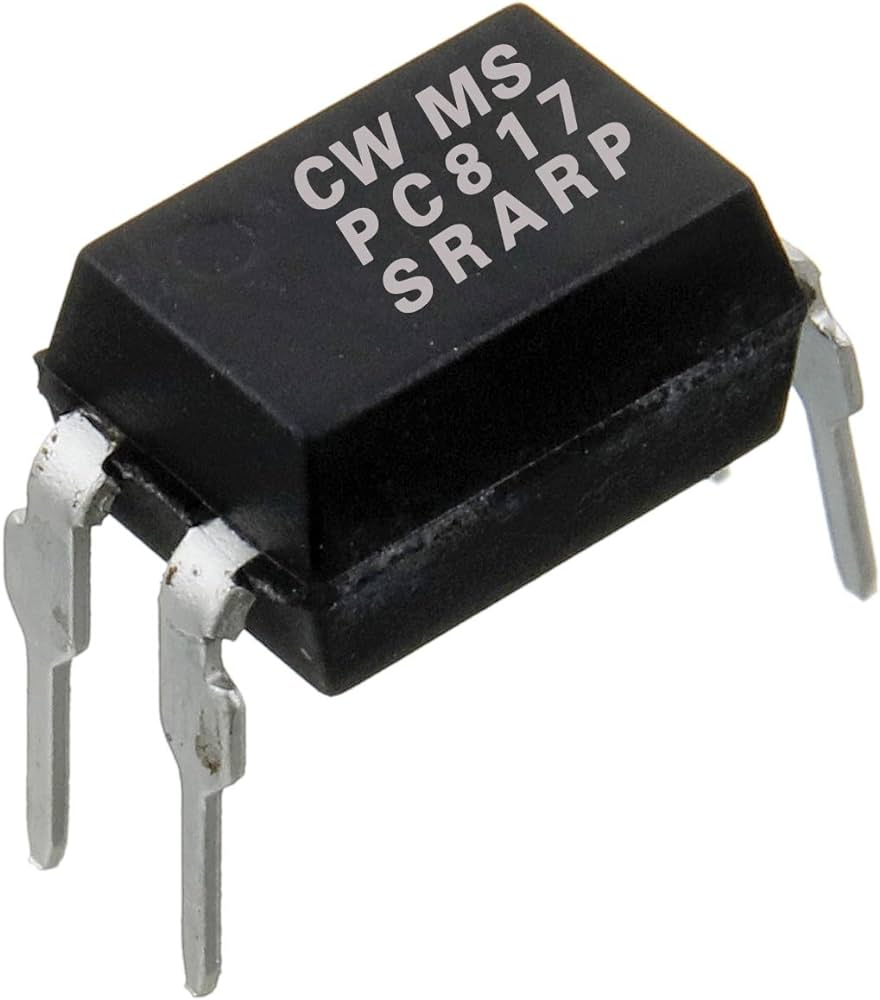

PC817 OPTOCOUPLER

the pc817 optocoupler is a widely used electronic isolation component designed to safely transfer signals between two electrically isolated circuits using light. it is also known as an optoisolator because it isolates the input and output sides while allowing signal communication through optical transmission.

inside the pc817 package, there are two main components:

• an infrared led (input side)

• a phototransistor (output side)

these components are enclosed inside a compact dip-4 package but remain electrically isolated from each other.

the working principle of the pc817 is based on optical signal transfer. when current flows through the internal infrared led, it emits infrared light. this light falls on the phototransistor placed inside the same package. the phototransistor detects the light and turns on, allowing current to flow at the output side.

because the signal is transferred using light instead of direct electrical connection, the input and output circuits remain electrically isolated. this isolation protects sensitive low-voltage electronics from:

• high voltage spikes

• electrical noise

• ground loops

• voltage surges

the pc817 provides high electrical isolation and reliable signal transfer, making it very useful in industrial electronics and embedded systems.

key features of the pc817 optocoupler include:

• high electrical isolation between circuits

• infrared led and phototransistor design

• compact dip-4 package

• low power consumption

• high noise immunity

• fast switching response

• reliable and stable operation

• suitable for low-voltage signal isolation

the pc817 is commonly used in:

• smps feedback circuits

• microcontroller protection circuits

• relay isolation systems

• industrial automation equipment

• arduino and esp32 interfacing

• switching power supplies

• signal isolation circuits

• motor driver isolation systems

• embedded electronics projects

in smps power supplies, the pc817 is often used to transfer feedback signals safely from the secondary side to the primary side without direct electrical connection.

the optocoupler is especially important in circuits where high-voltage and low-voltage sections must communicate safely while remaining electrically isolated.

overall, the pc817 optocoupler is a reliable, compact, and efficient signal isolation component that provides safe optical communication between circuits, making it essential in power electronics, automation systems, embedded electronics, and industrial control applications.
