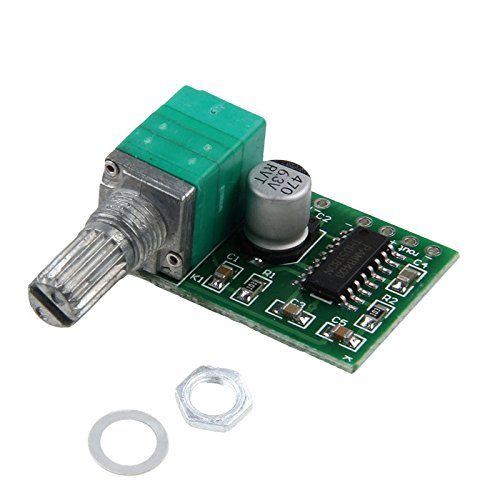

PAM 8403 Amplifier Module with Knob

the pam8403 amplifier module with knob is a compact and efficient class-d stereo audio amplifier board designed to amplify low-level audio signals into higher power output suitable for driving small speakers. it is based on the pam8403 amplifier ic, which is known for its high efficiency, low heat generation, and good audio performance in portable and low-power applications.

this module provides a stereo output of 3w + 3w, making it suitable for small speaker systems, diy audio projects, and embedded sound applications. it operates directly from a 5v dc power supply, which can be easily provided using usb power, batteries, or regulated power modules.

the working principle of the pam8403 module is based on class-d amplification. in this method, the input audio signal is converted into a high-frequency pwm signal internally. this signal is then switched rapidly through output transistors, and the speaker reconstructs the amplified audio signal. because of this switching operation, the module achieves high efficiency (up to around 90%) with very low heat dissipation.

the onboard potentiometer knob allows easy control of volume. by rotating the knob, the input signal level sent to the amplifier ic is adjusted, which directly controls the loudness of the output speakers. this makes it convenient for real-time volume adjustment without external software or microcontroller control.

the module supports 4 ohm to 8 ohm speakers and provides stable stereo audio output for left and right channels. it also includes built-in protection features such as:

• thermal protection

• short-circuit protection

• over-current protection

these safety features help ensure reliable operation and long service life of the module.

the pam8403 amplifier module is commonly used in:

• diy portable speakers

• bluetooth speaker systems

• arduino audio projects

• embedded sound systems

• smart devices with audio output

• educational electronics projects

• small multimedia systems

• robotics audio feedback systems

because of its compact size and simple wiring, the module is very easy to integrate into electronic projects. it typically requires only audio input signals, a 5v power supply, and speaker connections.

overall, the pam8403 amplifier module with knob is a highly efficient, low-noise, and easy-to-use stereo audio amplification solution that provides clear sound output, simple volume control, and reliable performance for a wide range of diy and embedded audio applications.
