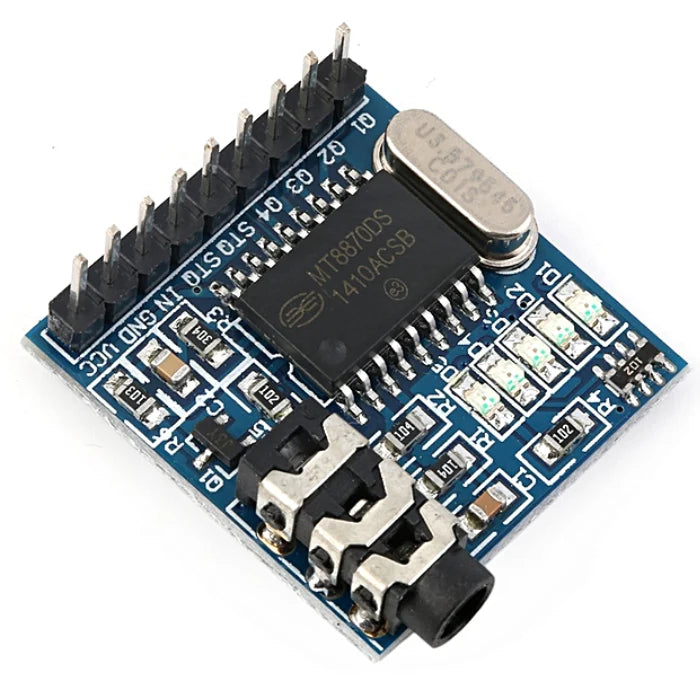

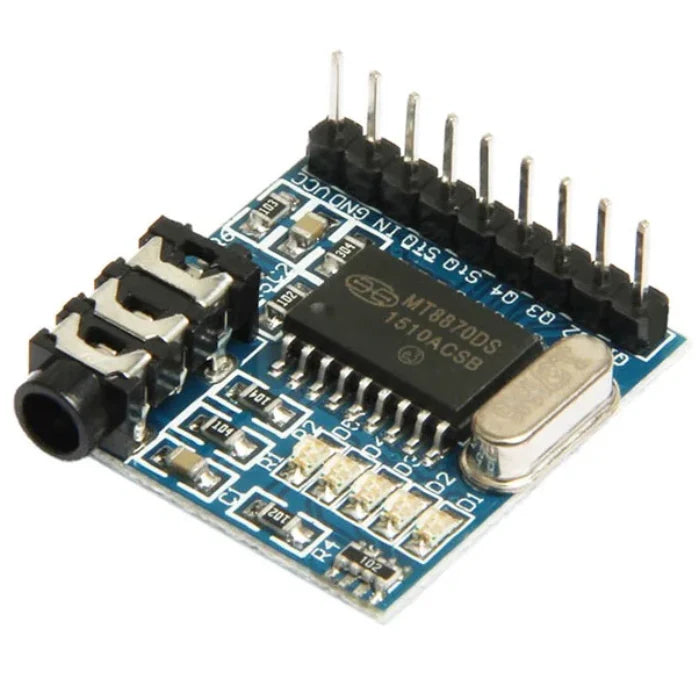

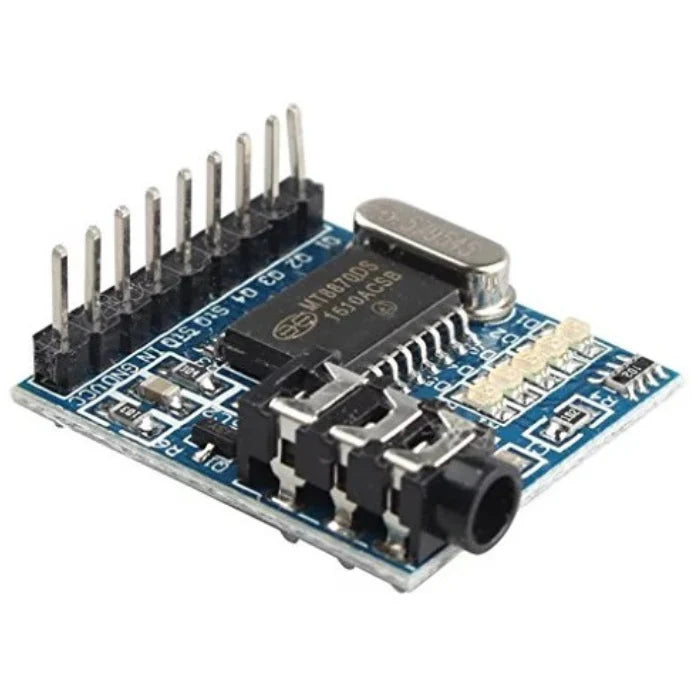

MT8870 DTMF Voice Decoding Module

MT8870 DTMF Voice Decoding Module is a reliable dual-tone multi-frequency (DTMF) decoding module designed to detect and decode standard telephone keypad tones into corresponding digital signals. It is commonly used in remote control, telephone-based automation, security systems, robotics, and embedded electronics projects where commands need to be received through DTMF tones generated by a mobile phone, telephone keypad, or DTMF signal source.

The module is based on the MT8870 DTMF decoder IC, which detects the combination of two simultaneous audio frequencies representing the digits 0–9 and other standard DTMF symbols such as *, #, and A–D, depending on the supported configuration. When a valid DTMF tone is received through the audio input, the module processes the signal and provides a corresponding digital output code that can be read by a microcontroller or development board.

The MT8870 DTMF Voice Decoding Module is useful for projects where devices need to be controlled remotely using keypad tones. For example, a user can generate DTMF tones by pressing buttons on a phone, and the decoder module can convert these tones into digital signals. A microcontroller such as Arduino, ESP32, STM32, or another compatible controller can then interpret the received code and perform a programmed action.

The module typically provides four digital data output pins that represent the decoded DTMF signal in binary form. It may also provide a valid-tone indication output, allowing the controller to determine when a recognized DTMF tone has been detected. The audio input can be connected to a suitable DTMF signal source, such as a telephone audio output or compatible audio circuit, depending on the project design.

The MT8870 DTMF Voice Decoding Module is widely used for mobile-controlled robots, remote appliance control, home automation, security systems, telephone-operated devices, industrial control prototypes, and other wireless command applications. It is particularly useful in projects where DTMF tones provide a simple method of sending control commands over an audio communication channel.

The module is suitable for students, hobbyists, makers, electronics enthusiasts, and engineers who want to learn about tone decoding and develop remote control systems. It can be easily integrated into microcontroller-based projects and is useful for educational experiments involving audio signals, digital logic, communication systems, and automation.

Key Features:

• Based on the MT8870 DTMF decoder IC

• Designed to detect standard DTMF tones

• Converts DTMF audio signals into digital output codes

• Supports decoding of telephone keypad tones

• Suitable for detecting digits and standard DTMF symbols

• Provides digital outputs for microcontroller interfacing

• Includes valid-tone detection functionality on compatible module designs

• Suitable for Arduino projects

• Compatible with suitable ESP32 and STM32 applications

• Useful for remote control systems

• Suitable for mobile-controlled robotics

• Useful for telephone-based automation

• Ideal for home automation projects

• Suitable for security and access control applications

• Useful for remote appliance control

• Suitable for DIY electronics and embedded systems

• Ideal for learning DTMF decoding and digital communication

• Compact and convenient module design

• Suitable for students, hobbyists, makers, and engineers

Applications:

The MT8870 DTMF Voice Decoding Module can be used in a wide range of projects, including DTMF-controlled robots, mobile-operated robotic vehicles, remote switching systems, telephone-controlled home automation, security systems, access control systems, industrial automation prototypes, remote monitoring systems, and electronic control applications.

For example, in a DTMF-controlled robot project, a user can press a specific number on a phone to generate a DTMF tone. The MT8870 module receives and decodes the tone, and the connected microcontroller reads the digital output. Based on the programmed command, the controller can operate motors or other devices. This provides a simple method for sending remote control commands through an audio communication channel.

The MT8870 DTMF Voice Decoding Module is an excellent choice for projects that require reliable DTMF tone detection and digital command decoding. Its ability to convert audio keypad tones into easily readable digital signals makes it a useful component for robotics, automation, remote control, security, and embedded electronics applications.
