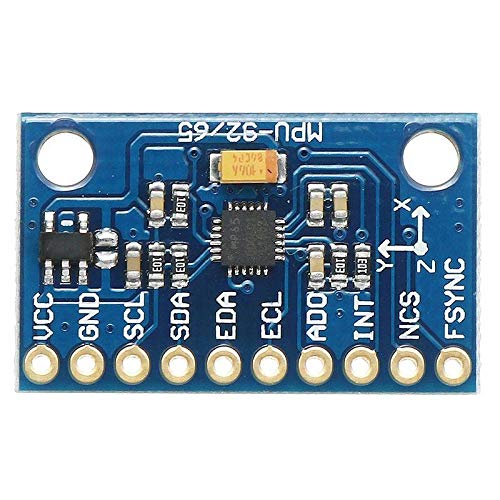

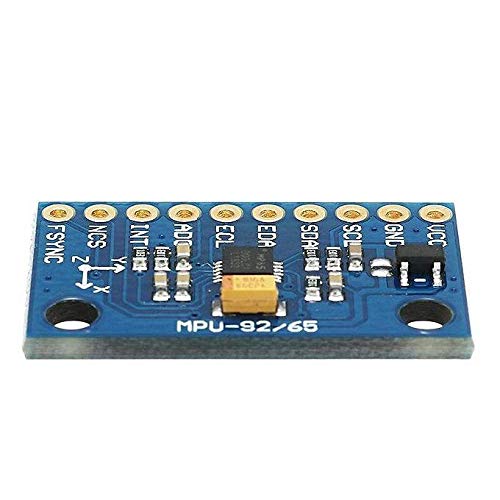

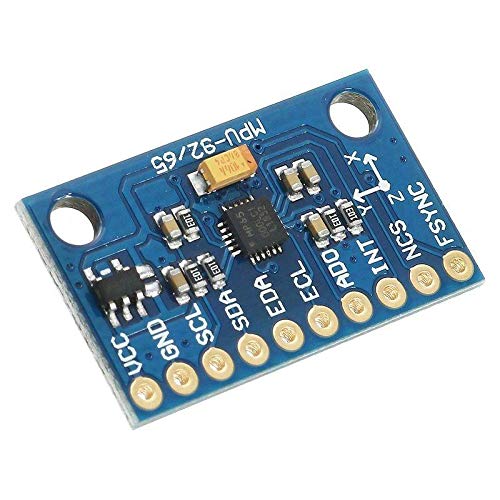

MPU9250 6-axis sensor module

The MPU9250 6-Axis Sensor Module is a compact and high-performance motion sensing module designed to measure linear acceleration and angular velocity in three dimensions. In this configuration, the module utilizes the 3-axis accelerometer and 3-axis gyroscope functions, providing a total of 6-axis motion sensing. It is widely used in robotics, drones, balancing robots, gesture recognition systems, motion tracking, gaming controllers, automation equipment, and embedded electronics projects.

The module combines two precision sensors into a single compact device:

• 3-Axis Accelerometer – Measures acceleration and tilt along the X, Y, and Z axes.

• 3-Axis Gyroscope – Measures rotational speed and angular motion around the X, Y, and Z axes.

By combining these two sensors, the MPU9250 6-Axis Sensor Module can accurately detect movement, vibration, tilt, orientation, and rotation, making it ideal for applications that require precise motion analysis and position tracking.

The module communicates with microcontrollers through the I2C or SPI communication interface, providing fast and reliable digital data transfer. Its digital output eliminates the need for complex analog signal processing, making it easy to integrate into embedded systems. The sensor also features a built-in Digital Motion Processor (DMP), which can process motion data internally and reduce the computational load on the host microcontroller.

The accelerometer and gyroscope support multiple selectable measurement ranges, allowing users to optimize sensitivity and accuracy according to different application requirements. The module delivers fast response times, stable performance, and low power consumption, making it suitable for both portable and battery-powered devices.

The MPU9250 6-Axis Sensor Module is compatible with popular development platforms such as Arduino, Raspberry Pi, ESP32, ESP8266, NodeMCU, STM32, PIC, AVR, and other microcontrollers. It is supported by widely available software libraries, enabling quick integration into electronics and embedded projects.

This module is widely used in self-balancing robots, quadcopters, drones, robotic arms, camera stabilization systems, motion-controlled devices, gesture recognition systems, wearable electronics, gaming controllers, industrial automation, IoT devices, educational electronics, embedded systems, and DIY electronics projects.

The module offers several advantages, including high measurement accuracy, fast response time, low power consumption, compact size, built-in Digital Motion Processor (DMP), I2C and SPI communication support, stable operation, and easy interfacing. Its combination of a 3-axis accelerometer and 3-axis gyroscope provides reliable motion sensing for applications that require six degrees of motion measurement.

The MPU9250 6-Axis Sensor Module is an excellent choice for engineers, students, hobbyists, and developers who need a compact and reliable motion sensing solution. Its accurate acceleration and rotational measurements, digital communication interface, low power consumption, and wide compatibility make it ideal for robotics, automation systems, drones, motion tracking devices, and embedded electronic applications.
