MPU-6050 Triple-Axis Accelerometer & Gyroscope Module

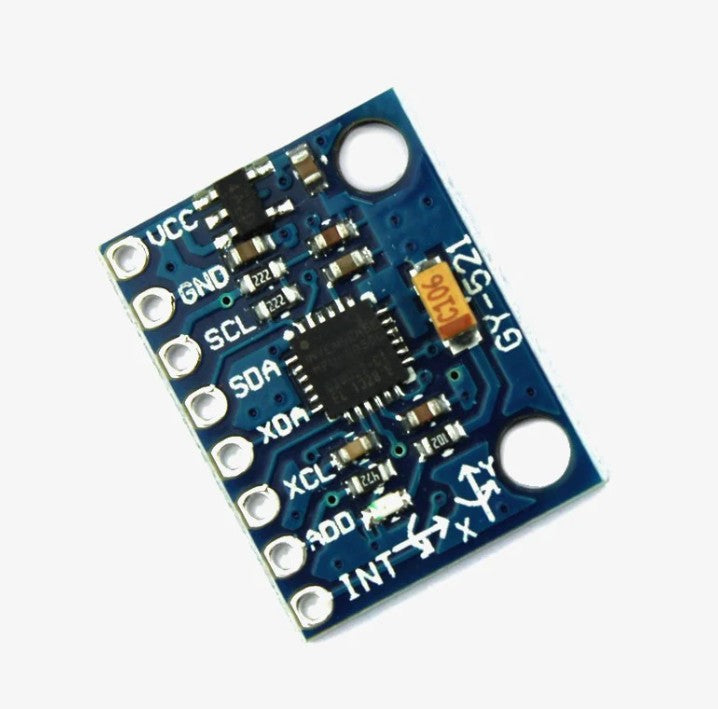

The MPU6050 Sensor Module is a compact, high-performance 6-axis motion tracking sensor that combines a 3-axis gyroscope and a 3-axis accelerometer into a single integrated circuit. Designed for precise motion sensing and orientation measurement, the module can accurately detect acceleration, angular velocity, tilt, vibration, rotation, and movement along the X, Y, and Z axes. Its advanced sensing capabilities make it one of the most popular motion sensors for embedded systems, robotics, drones, wearable electronics, IoT devices, and educational projects.

Built around the InvenSense MPU6050 IC, the module communicates with microcontrollers using the industry-standard I²C (Inter-Integrated Circuit) interface, providing fast, reliable, and noise-resistant digital communication while requiring only two signal lines. The sensor also includes an integrated Digital Motion Processor (DMP), which performs complex motion calculations internally, reducing the computational load on the host microcontroller and improving overall system performance.

The MPU6050 supports programmable measurement ranges for both the accelerometer and gyroscope, allowing developers to optimize sensitivity and measurement accuracy for different applications. Most breakout boards include an onboard voltage regulator and logic-level support, making them compatible with both 3.3V and 5V development platforms.

Its compact size, low power consumption, excellent accuracy, and extensive software library support make the MPU6050 an ideal solution for students, hobbyists, engineers, researchers, and product developers building motion-sensitive electronic systems.

Working Principle

The MPU6050 uses two independent Micro-Electro-Mechanical Systems (MEMS) sensors to detect motion.

The 3-axis accelerometer measures linear acceleration along the X, Y, and Z axes. It detects movement, tilt, vibration, and the direction of gravitational force, allowing the system to determine orientation and inclination.

The 3-axis gyroscope measures angular velocity around the X, Y, and Z axes, enabling accurate detection of rotational movement and changes in orientation.

The onboard Digital Motion Processor (DMP) combines data from both sensors using sensor fusion algorithms to produce stable and accurate motion information. The processed data is transmitted digitally through the I²C interface, allowing the connected microcontroller to perform real-time motion tracking, orientation estimation, and stabilization.

Key Features

Integrated 3-axis accelerometer and 3-axis gyroscope.

Complete 6-axis motion sensing capability.

Built-in Digital Motion Processor (DMP).

High-precision MEMS sensing technology.

Digital I²C communication interface.

Low power consumption.

Low-noise sensor performance.

Programmable accelerometer ranges of ±2g, ±4g, ±8g, and ±16g.

Programmable gyroscope ranges of ±250, ±500, ±1000, and ±2000°/s.

Fast response with high measurement accuracy.

Compact PCB design.

Easy integration with embedded systems.

Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, NodeMCU, and other microcontroller platforms.

Extensive software library support.

Suitable for educational, industrial, research, and commercial applications.

Technical Specifications

Sensor IC: MPU6050

Sensor Type: 6-Axis Motion Tracking Sensor

Accelerometer: 3-Axis MEMS Accelerometer

Gyroscope: 3-Axis MEMS Gyroscope

Communication Interface: I²C (Two-Wire Serial Interface)

Operating Voltage (Sensor IC): 3.3V

Module Supply Voltage: Typically 3.3V–5V

Accelerometer Ranges: ±2g, ±4g, ±8g, ±16g

Gyroscope Ranges: ±250, ±500, ±1000, ±2000°/s

Digital Motion Processor: Integrated

Power Consumption: Low

Operating Temperature: Suitable for standard indoor operating environments

Module Type: Motion Tracking Sensor

Applications

Self-balancing robots.

Quadcopters and drones.

Robotics and automation.

Gesture recognition systems.

Motion-controlled gaming devices.

Virtual Reality (VR) systems.

Augmented Reality (AR) devices.

Wearable electronics.

Camera stabilization systems.

Industrial motion monitoring.

IoT smart devices.

Navigation and positioning systems.

Educational electronics projects.

Research and laboratory experiments.

DIY electronics and prototype development.
