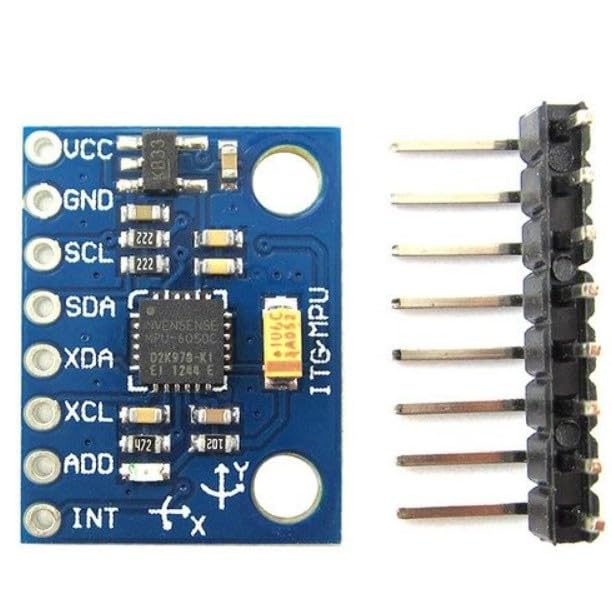

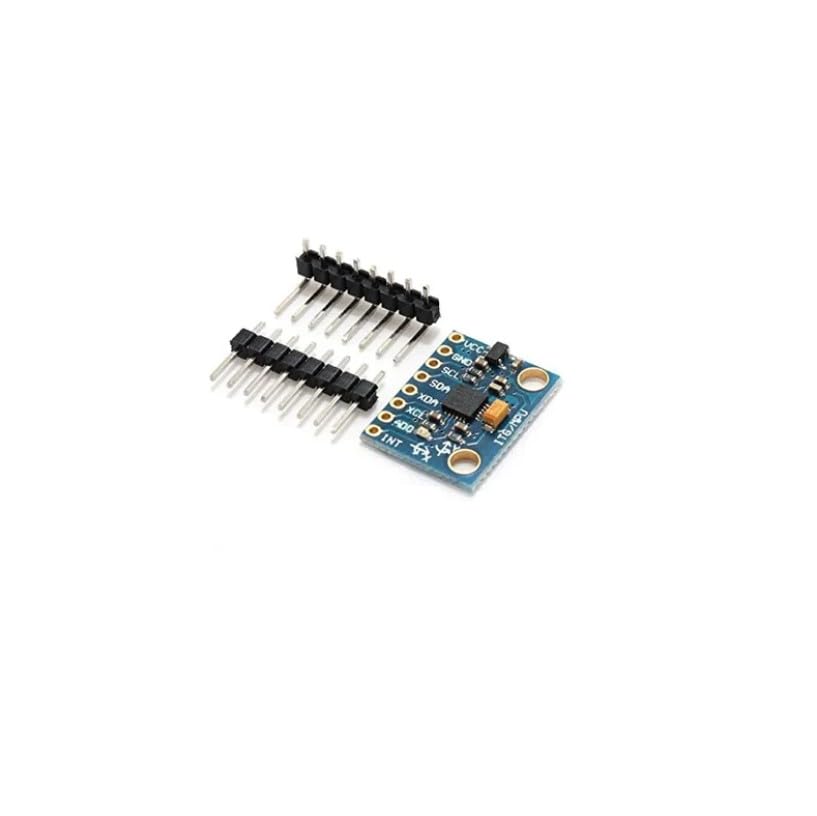

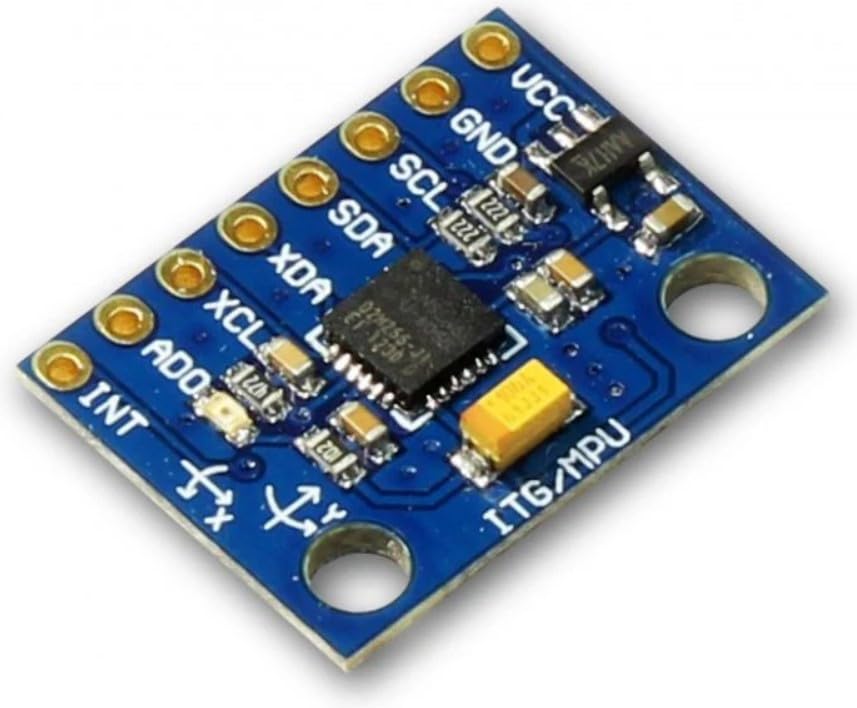

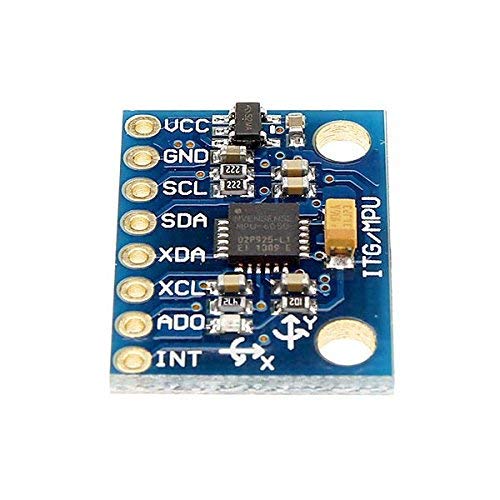

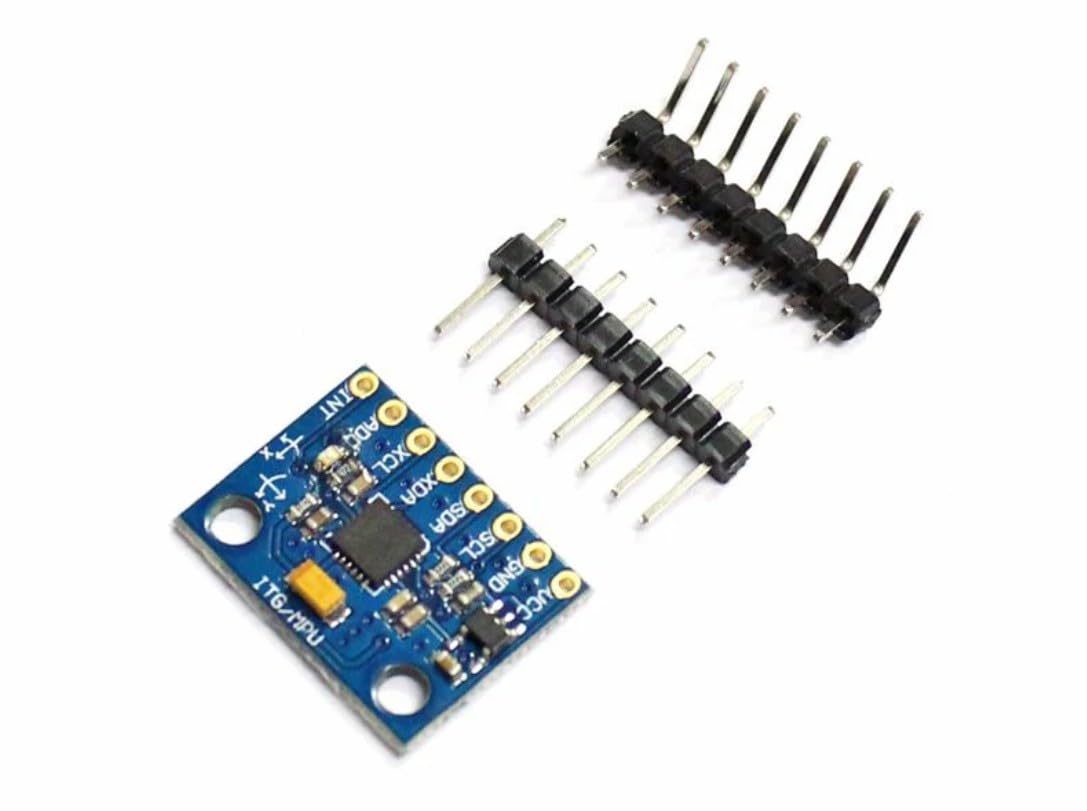

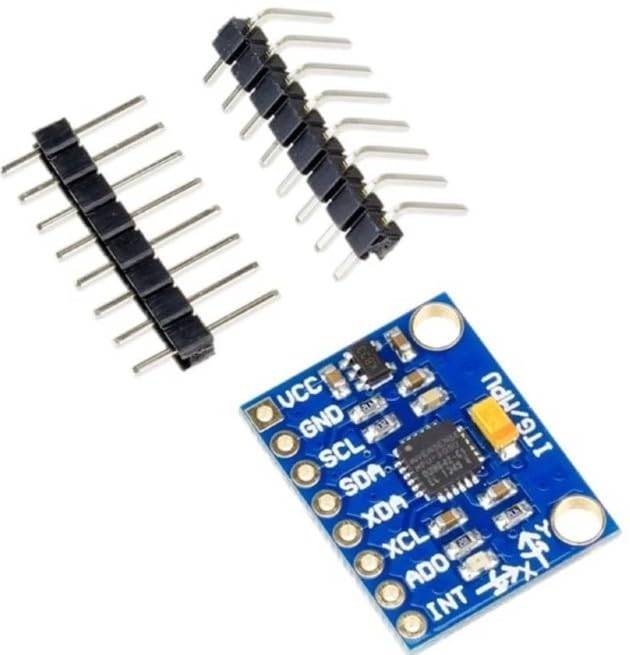

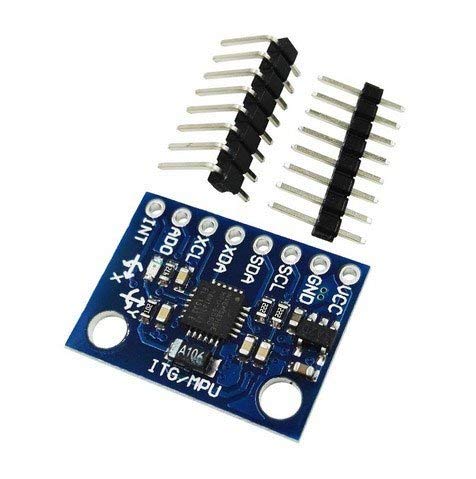

MPU-6050 3-Axis Accelerometer and Gyro Sensor

The MPU-6050 3-Axis Accelerometer and Gyro Sensor is a compact and highly integrated motion-tracking module used for measuring movement, orientation, acceleration, and angular velocity in electronic systems. It combines a 3-axis accelerometer and a 3-axis gyroscope in a single chip, making it a powerful 6-axis motion sensing solution for robotics, drones, gaming controllers, and embedded systems.

The accelerometer measures linear acceleration along the X, Y, and Z axes, allowing detection of motion, tilt, and vibration. The gyroscope measures rotational movement (angular velocity) around the same three axes, enabling precise tracking of orientation and rotation. Together, these sensors provide accurate real-time motion data.

The module communicates using the I2C (Inter-Integrated Circuit) protocol, which allows easy connection with microcontrollers such as Arduino, ESP8266, ESP32, Raspberry Pi, and STM32. This simplifies integration and reduces the number of required pins for operation.

One of the key features of the MPU-6050 is its built-in Digital Motion Processor (DMP), which processes raw sensor data internally to reduce the load on the main microcontroller. This allows for more efficient motion calculations such as orientation estimation, tilt angle detection, and motion tracking.

The sensor also includes an integrated temperature sensor and programmable sensitivity ranges for both accelerometer and gyroscope, allowing customization based on application needs. Its low power consumption makes it suitable for battery-powered devices and portable systems.

Working Principle

The MPU-6050 works by detecting changes in motion and rotation using micro-electromechanical systems (MEMS) technology.

• The accelerometer detects changes in velocity and position by measuring force along three axes.

• The gyroscope detects angular rotation by measuring changes in rotational motion.

• These signals are converted into digital data and transmitted via the I2C interface to a microcontroller.

• The built-in DMP unit can process this raw data into useful motion information like pitch, roll, and yaw.

Key Features

• 6-axis motion sensing (3-axis accelerometer + 3-axis gyroscope)

• I2C digital communication interface

• Programmable accelerometer range: ±2g to ±16g

• Programmable gyroscope range: ±250 to ±2000°/s

• Built-in Digital Motion Processor (DMP)

• Integrated temperature sensor

• High precision and stability

• Low power consumption

• Easy integration with microcontrollers

• Compact and lightweight design

Applications

The MPU-6050 Sensor Module is widely used in:

• Robotics and automation systems

• Drones and quadcopters

• Motion tracking systems

• Gesture recognition devices

• Gaming controllers

• Self-balancing robots

• VR and AR systems

• Navigation systems

• Vibration analysis

• Smartphone and wearable devices

• Embedded motion detection projects

• Educational electronics projects

Specifications

• Product Type: 6-Axis Motion Sensor Module

• Chip: MPU-6050

• Axes: 3-axis accelerometer + 3-axis gyroscope

• Communication: I2C interface

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g

• Gyroscope Range: ±250, ±500, ±1000, ±2000°/s

• Operating Voltage: Typically 3.3V–5V (module dependent)

• Built-in Features: DMP, temperature sensor

Package Includes

• 1 × MPU-6050 Sensor Module

Safety Precautions

• Ensure correct voltage supply before connecting.

• Avoid static discharge while handling the sensor.

• Do not expose to moisture or high heat.

• Double-check I2C connections (SDA and SCL).

• Handle carefully to avoid physical damage to the module.
