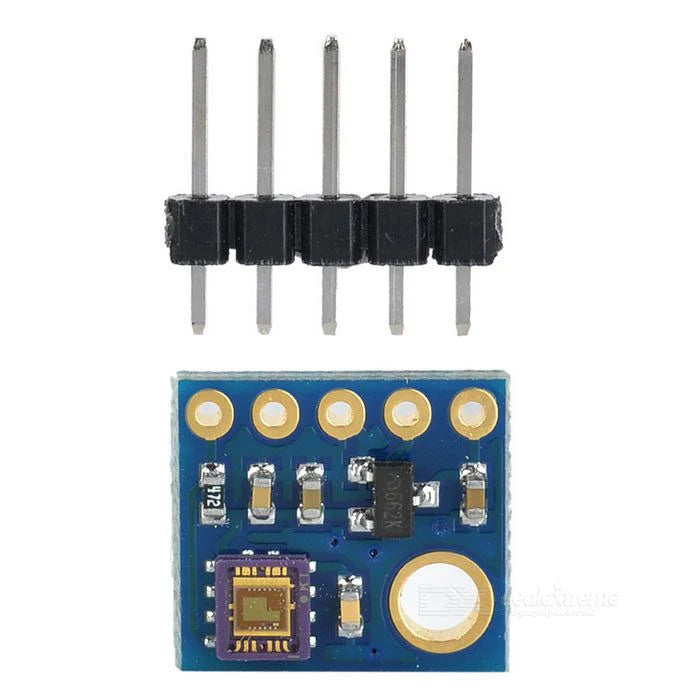

Ml8511 Ultra Violet Sensor Module

the ml8511 ultra violet sensor module is a compact and sensitive ultraviolet light detection module designed to measure uv radiation levels in the environment. based on the ml8511 uv sensor integrated circuit, the module is capable of detecting both uv-a and uv-b rays and provides an analog voltage output proportional to the intensity of ultraviolet light falling on the sensor.

the module is widely used in environmental monitoring systems, uv index measurement devices, wearable electronics, weather stations, smart agriculture systems, and embedded iot applications. it is compatible with popular development platforms such as arduino, esp32, esp8266, raspberry pi, stm32, pic, and other microcontrollers.

the working principle of the ml8511 sensor is based on semiconductor ultraviolet light detection technology. when ultraviolet radiation in the wavelength range of approximately 280nm to 390nm strikes the sensor surface, the internal sensing element generates an electrical response proportional to the uv intensity. the onboard operational amplifier processes this signal and produces a stable analog voltage output that can be read by a microcontroller using an analog input pin.

by analyzing the analog output voltage, the connected controller can estimate:

• uv radiation intensity

• uv exposure levels

• environmental ultraviolet conditions

• approximate uv index values

the sensor can detect both:

• uv-a rays (long wavelength ultraviolet radiation)

• uv-b rays (medium wavelength ultraviolet radiation)

this makes it suitable for applications involving sunlight monitoring, weather analysis, and uv safety systems.

one of the major advantages of the ml8511 module is its low power consumption, making it suitable for portable, wearable, and battery-powered devices. the compact pcb design also allows easy integration into small electronic systems and embedded applications.

the module operates at low voltage levels, typically between 3v and 5v, which allows direct interfacing with modern microcontrollers and development boards without requiring complex voltage conversion circuitry.

the ml8511 ultra violet sensor module is commonly used in:

• uv index monitoring systems

• weather station projects

• environmental sensing applications

• wearable uv exposure devices

• smart agriculture systems

• sunlight intensity monitoring

• health and safety monitoring devices

• iot and embedded electronics projects

• educational and research experiments

in arduino and esp32 projects, the analog output can be processed through adc (analog-to-digital converter) inputs to calculate uv intensity values and trigger alerts or automation systems based on ultraviolet exposure levels.

the module’s simple interface and broad compatibility make it beginner-friendly while still providing accurate uv sensing performance for advanced applications.

overall, the ml8511 ultra violet sensor module is a reliable, low-power, and easy-to-use ultraviolet radiation sensing solution that provides accurate uv-a and uv-b light detection for environmental monitoring, wearable electronics, weather analysis, smart systems, and embedded electronics applications.
