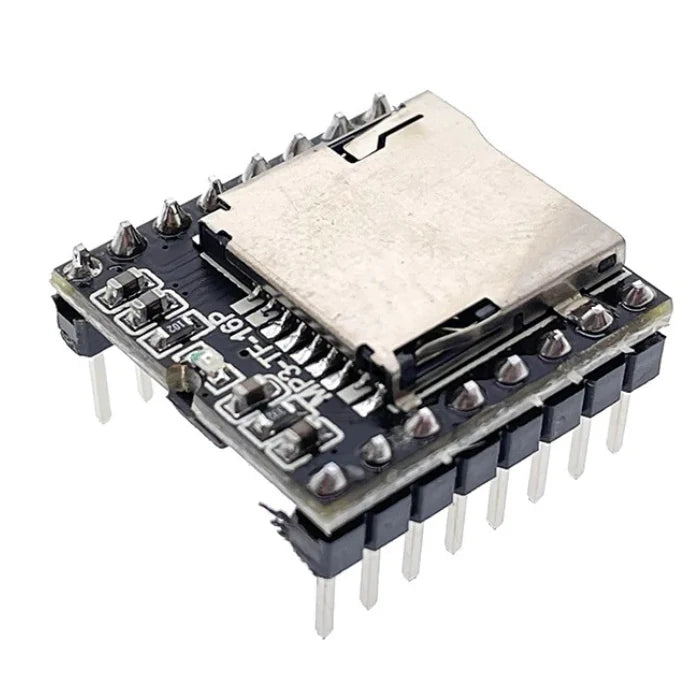

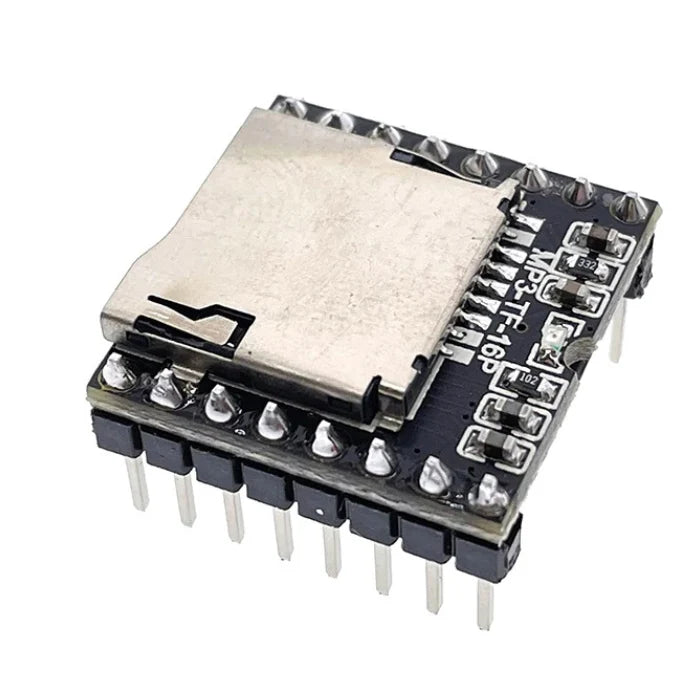

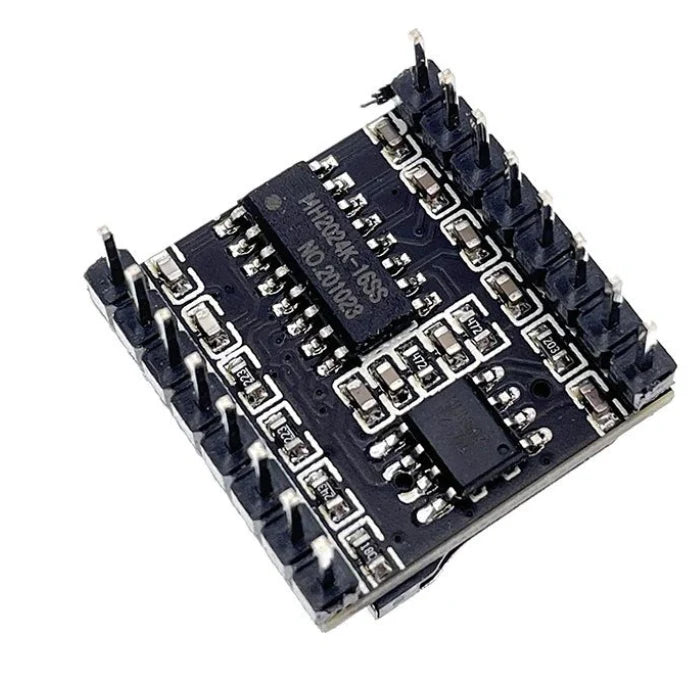

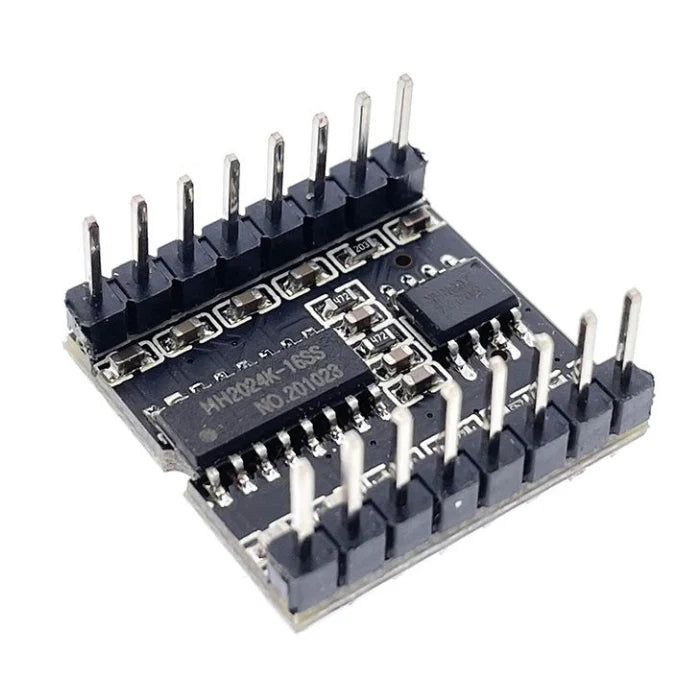

Mini DFPlayer MP3 Player Module

The Mini DFPlayer MP3 Player Module is a compact standalone audio playback module designed to play MP3, WAV, and WMA audio files directly from a microSD (TF) card. It features a built-in audio decoder, onboard amplifier, and serial communication interface, allowing easy integration with microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, and STM32. The module is widely used in voice announcement systems, smart home devices, robotics, security systems, educational projects, IoT applications, interactive toys, and DIY electronics.

The module consists of a DFPlayer audio decoder IC, microSD (TF) card slot, UART serial communication interface, 3W Class-D audio amplifier, DAC (Digital-to-Analog Converter), speaker output terminals, headphone/audio output pins, power supply circuit, and control pins. It can operate independently using push buttons or be controlled through serial commands from a microcontroller.

The working principle of the Mini DFPlayer MP3 Player Module begins when audio files are stored on a formatted microSD card. After power is supplied, the module reads the audio files from the memory card and decodes the selected file using its built-in audio decoder. The decoded digital audio is converted into an analog signal by the internal DAC and amplified through the onboard 3W audio amplifier, allowing direct connection to a small speaker. Playback can be controlled using push buttons or by sending serial (UART) commands from a microcontroller.

Typical specifications include:

• Product Type: Mini MP3 Player Module

• Audio Decoder: Built-in MP3 Decoder IC

• Storage Medium: microSD (TF) Card

• Supported File Systems: FAT16 / FAT32

• Supported Audio Formats: MP3, WAV, WMA

• Communication Interface: UART (TTL Serial)

• Operating Voltage: 3.2V–5.0V DC

• Built-in Audio Amplifier: 3W Class-D Amplifier

• Speaker Output: 4Ω–8Ω Speaker

• Audio Output: DAC / Headphone Output

• Control Methods: UART Commands or Push Buttons

• Power Consumption: Low Power

The module supports functions such as:

• MP3 Playback

• WAV Playback

• WMA Playback

• Play, Pause, Stop

• Next/Previous Track

• Volume Adjustment

• Folder-Based Playback

• Serial Command Control

• Standalone Button Control

• Loop Playback

• Advertisement Playback

• Sleep Mode

The Mini DFPlayer MP3 Player Module is compatible with:

• Arduino Uno

• Arduino Nano

• Arduino Mega

• ESP32

• ESP8266

• Raspberry Pi

• STM32

• PIC Microcontrollers

• AVR Microcontrollers

• 8051 Development Boards

The applications of the Mini DFPlayer MP3 Player Module include voice announcement systems, talking robots, smart home automation, security alarms, access control systems, attendance systems, elevator voice systems, GPS voice guidance, interactive toys, educational electronics, IoT devices, embedded systems, automation projects, prototype development, laboratory experiments, engineering projects, and DIY electronics.

The advantages of the module include compact size, easy serial communication, standalone operation, built-in audio amplifier, direct speaker connection, low power consumption, support for multiple audio formats, simple integration with microcontrollers, high-quality audio playback, and reliable performance.
