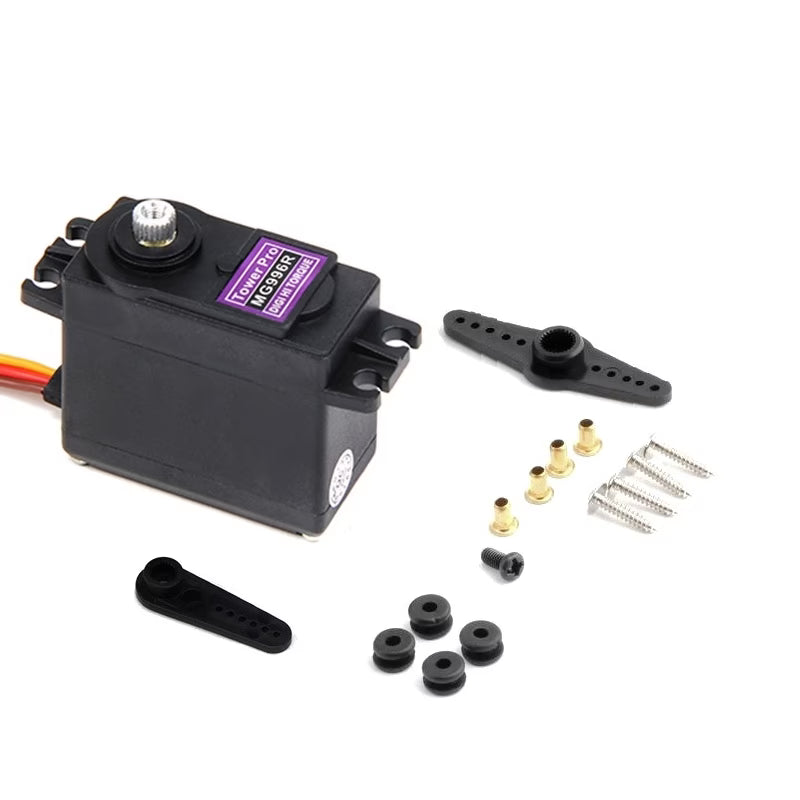

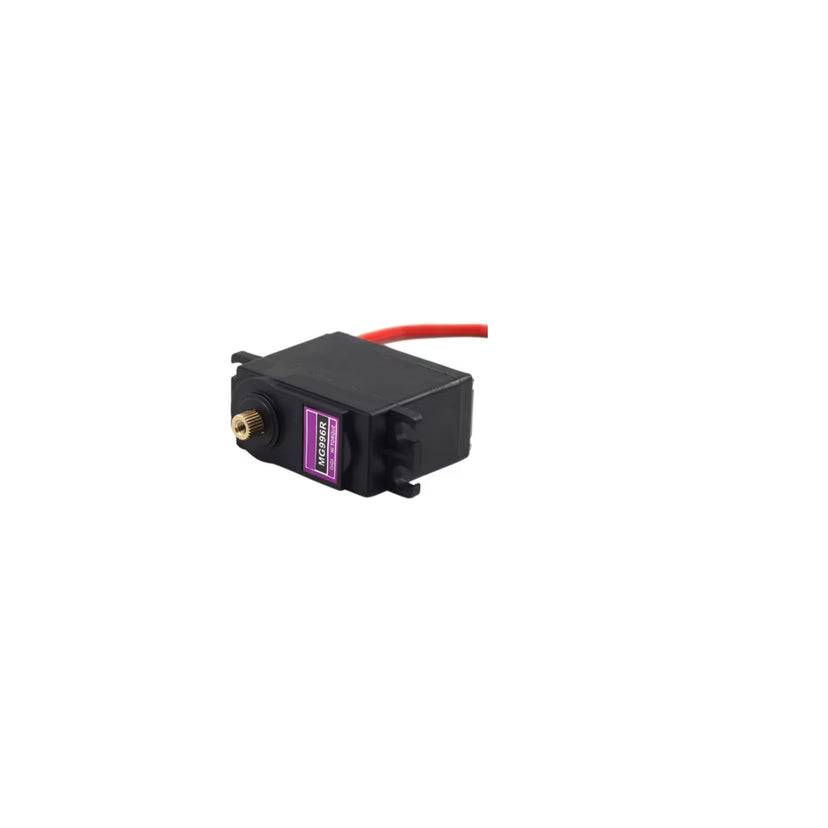

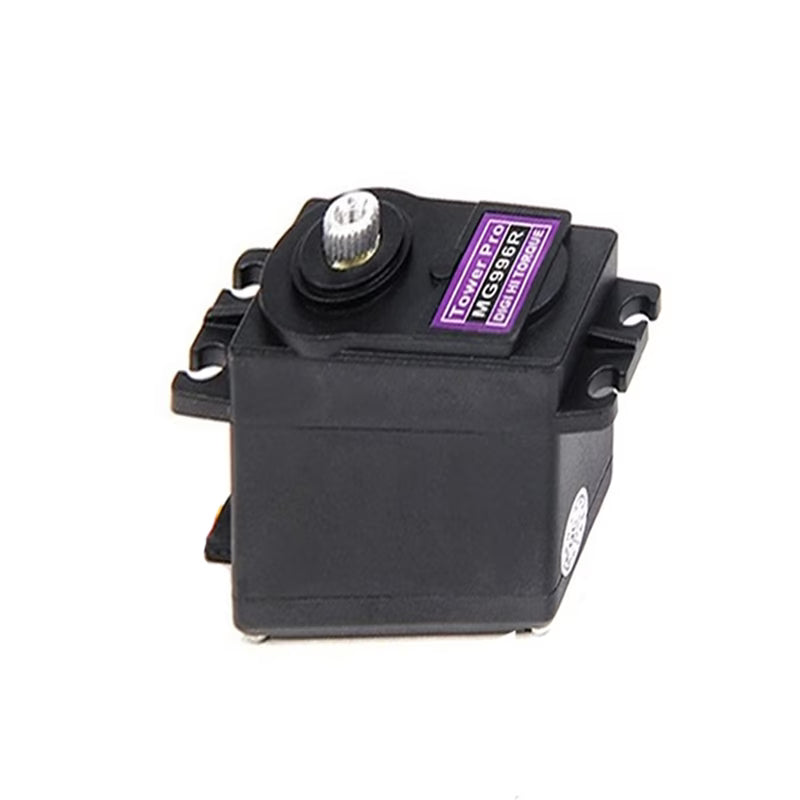

MG996R Digital High Torque Servo Motor (360° Rotation)

the mg996r digital high torque servo motor (360° rotation) is a powerful and durable continuous rotation servo motor designed for high-performance motion control applications in robotics, automation, rc systems, and embedded electronics projects. it is an upgraded version of standard servo motors, offering improved torque, faster response, better stability, and enhanced control accuracy through its digital control circuitry and metal gear mechanism.

unlike standard servo motors that rotate only within a limited angle range, the 360-degree continuous rotation version of the mg996r can rotate continuously in both clockwise and anticlockwise directions. this makes it ideal for wheel drive systems, robotic movement, conveyor mechanisms, and automated machinery where continuous rotational motion is required.

the servo motor operates using pwm (pulse width modulation) control signals generated by microcontrollers such as arduino, esp32, raspberry pi, stm32, pic, and other embedded platforms. the internal digital control circuit processes the pwm signal and controls the motor’s speed and rotation direction with improved precision and responsiveness.

the working principle of the mg996r is based on electronic pulse control:

• one pwm pulse range rotates the motor clockwise

• another pulse range rotates it anticlockwise

• a neutral pulse stops the rotation

this allows users to control speed and movement direction through simple programming and motor control logic.

one of the major advantages of the mg996r servo motor is its high torque capability. the motor uses durable metal gears that can withstand heavier loads and repeated mechanical stress, making it suitable for demanding robotics and automation applications.

the digital servo control system provides:

• faster response time

• improved motion stability

• smoother operation

• better positioning and speed consistency

• reduced signal delay compared to analog servos

the shock-resistant metal gear construction improves reliability and operational lifespan, especially in heavy-duty and continuous-use environments.

the mg996r servo motor is commonly used in:

• robotic arm systems

• mobile robots and wheel drive mechanisms

• rc cars, boats, and airplanes

• automation and industrial control systems

• cnc and motion control projects

• diy robotics and electronics applications

• smart embedded systems

• conveyor and mechanical movement systems

because of its compatibility with popular development boards and microcontrollers, the servo can be easily integrated into programmable automation and robotics systems.

the servo motor typically uses a simple three-wire interface:

• power supply connection

• ground connection

• pwm signal control wire

its compact yet powerful design makes it suitable for projects requiring strong mechanical force in a relatively small form factor.

overall, the mg996r digital high torque servo motor (360° rotation) is a reliable, high-performance, and durable motion control solution that delivers continuous rotational movement, high torque output, fast digital response, and stable pwm-based control for robotics, automation, rc systems, cnc machines, and embedded electronics applications.
