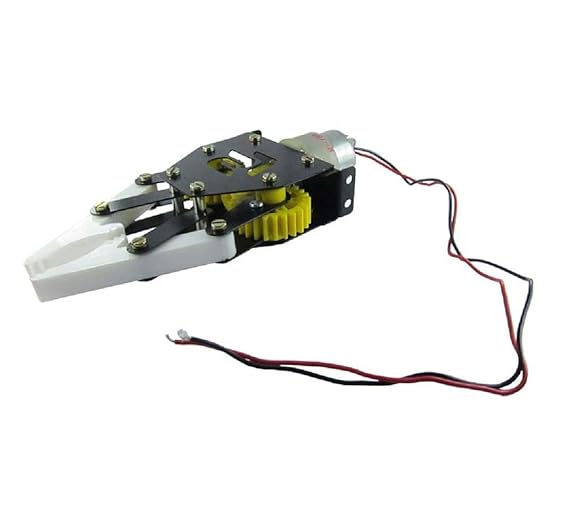

Mechanical Robotic Gripper Arm Module Kit with DC Motor for DIY Projects

The Mechanical Robotic Gripper Arm Module Kit with DC Motor is a compact robotic end-effector designed to grip, hold, lift, and release lightweight objects in robotics and automation applications. The module uses a DC geared motor to drive the gripper mechanism, providing smooth and reliable opening and closing of the gripping jaws. It is widely used in robotic arms, automation systems, educational robotics, STEM learning, industrial demonstrations, object sorting, pick-and-place applications, and DIY electronics projects.

The gripper module is constructed from high-quality aluminum alloy, stainless steel, or durable engineering plastic, depending on the model. It typically includes a mechanical gripper assembly, DC geared motor, gear transmission mechanism, mounting brackets, gripper jaws, connecting links, screws, nuts, and other assembly hardware. The sturdy construction ensures durability while maintaining a lightweight design for easy integration with robotic systems.

The working principle of the Mechanical Robotic Gripper Arm Module is based on mechanical motion driven by a DC geared motor. When power is supplied to the motor, it rotates the gear mechanism, which converts the motor's rotary motion into the linear movement required to open or close the gripper jaws. Reversing the polarity of the DC motor changes its direction of rotation, causing the jaws to either grip or release an object. The geared motor provides higher torque at lower speeds, allowing the gripper to hold objects securely while maintaining smooth operation.

The gripper is designed to handle small and lightweight objects such as plastic components, electronic parts, small boxes, laboratory samples, and educational models. The gripping force depends on the motor specifications, gear ratio, supply voltage, and object size.

The module can be controlled using a motor driver such as L298N, L293D, TB6612FNG, BTS7960, or similar DC motor driver circuits. It is compatible with popular development boards including Arduino Uno, Arduino Nano, Arduino Mega, ESP32, ESP8266, Raspberry Pi (with a motor driver), STM32, PIC, and AVR microcontrollers. The motor can also be controlled using PWM (Pulse Width Modulation) to adjust the opening and closing speed of the gripper.

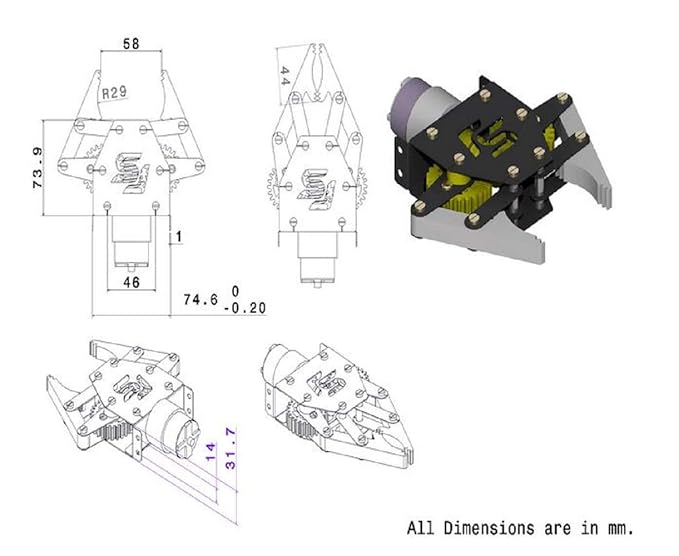

The compact design allows the gripper to be easily mounted on robotic arms, mobile robots, conveyor systems, automated handling equipment, and custom robotic platforms. Standard mounting holes simplify installation and integration into various mechanical systems.

The applications of the Mechanical Robotic Gripper Arm Module Kit include robotic arms, pick-and-place systems, object sorting machines, industrial automation, conveyor systems, educational robotics, STEM learning, AI and machine vision projects, laboratory automation, warehouse automation, prototype development, IoT projects, embedded systems, engineering education, research laboratories, and DIY robotics.

The advantages of the module include durable mechanical construction, reliable DC geared motor operation, high gripping force for lightweight objects, smooth opening and closing mechanism, compact size, easy installation, compatibility with various motor drivers and microcontrollers, low power consumption, simple control, reusable design, and suitability for educational and automation applications.

In conclusion, the Mechanical Robotic Gripper Arm Module Kit with DC Motor for DIY Projects is a versatile and reliable robotic end-effector designed for accurate object handling. Its durable construction, DC geared motor drive, smooth gripping mechanism, and compatibility with popular microcontrollers and motor drivers make it an excellent choice for robotics, automation, educational projects, prototype development, and engineering applications.
