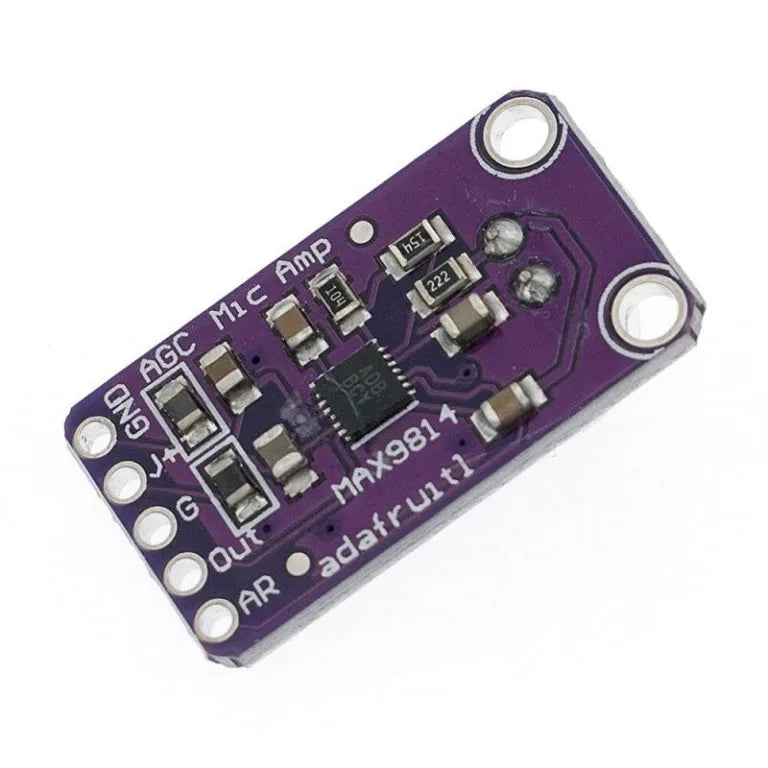

MAX9814 High Performance AGC Microphone Amplifier Module CMA

The MAX9814 High Performance AGC Microphone Amplifier Module CMA is a compact, high-sensitivity audio input module designed for clear sound capture, voice processing, and embedded audio applications. Built around the advanced MAX9814 low-noise microphone amplifier integrated circuit, this module combines high-quality audio amplification with built-in Automatic Gain Control (AGC), making it highly suitable for voice recognition systems, sound detection projects, smart assistants, audio monitoring systems, IoT devices, robotics, and embedded electronics development.

The module includes the highly sensitive CMA-4544PF-W electret condenser microphone, which captures surrounding audio signals and converts sound waves into electrical signals. The onboard MAX9814 amplifier processes and amplifies these weak microphone signals while minimizing noise and distortion, ensuring clean and stable audio output suitable for microcontroller-based applications.

One of the major features of this module is its integrated Automatic Gain Control (AGC) system. AGC automatically adjusts the amplifier gain depending on the incoming sound level. In quiet environments, the module increases gain to improve sensitivity and capture weak audio signals clearly. In loud environments, the gain is automatically reduced to prevent signal clipping and distortion. This intelligent gain adjustment allows the module to maintain stable audio performance across varying sound conditions without requiring manual calibration.

The MAX9814 IC is specifically designed for low-noise microphone amplification and provides excellent audio quality with very low Total Harmonic Distortion (THD). The module offers a typical THD value of approximately 0.04%, ensuring accurate and natural sound reproduction for voice and audio processing applications.

The microphone amplifier supports selectable gain settings of:

• 40 dB

• 50 dB

• 60 dB

These configurable gain levels allow users to optimize audio sensitivity based on project requirements and environmental conditions. Lower gain settings are suitable for louder environments, while higher gain settings improve sensitivity for distant or low-volume audio capture.

The module operates within a voltage range of approximately 2.7V to 5.5V DC, making it compatible with a wide range of embedded development boards and low-power electronic systems. This flexibility allows direct interfacing with popular platforms such as Arduino Uno R3, Arduino Nano Board V3, ESP32 modules, STM32 boards, NodeMCU systems, and Raspberry Pi 4 Model B computers.

The onboard microphone captures sound within a frequency response range of approximately 20 Hz to 20 kHz, covering most of the human audible frequency spectrum. This broad frequency response makes the module suitable for speech processing, environmental sound monitoring, audio recording, and interactive voice-based systems.

The MAX9814 amplifier is also characterized by very low input noise density, typically around 30 nV/√Hz, which contributes to high-quality sound amplification with minimal background noise interference. This feature is particularly important for sensitive voice recognition and audio analysis applications.

The module generally provides three main connection pins:

• VCC (Power Supply)

• GND (Ground)

• OUT (Analog Audio Output)

The analog output pin provides an amplified audio signal that can be connected directly to analog input pins of microcontrollers, ADC converters, DSP systems, or audio processing circuits.

Because the module outputs analog audio signals, developers can perform real-time sound analysis, voice activity detection, sound level measurement, FFT analysis, and speech recognition using microcontroller software or external processing systems.

The MAX9814 module is highly popular in voice recognition systems and smart assistant projects. It can capture voice commands clearly and provide stable audio signals for speech-processing algorithms and voice-controlled automation systems.

In IoT and smart home systems, the module is used for sound-triggered automation, voice-controlled appliances, smart monitoring devices, and audio-based event detection. Combined with Wi-Fi-enabled controllers such as ESP32 boards, the module enables remote audio monitoring and cloud-connected voice applications.

Robotics projects frequently use the module for sound localization, voice command systems, interactive robots, and environmental audio sensing. The microphone amplifier improves audio sensitivity, allowing robots to respond more accurately to spoken commands and surrounding sounds.

The module is also widely used in educational electronics and embedded systems learning environments because it provides an excellent platform for understanding analog audio processing, microphone amplification, AGC operation, and sound-based control systems.

Typical applications of the MAX9814 Microphone Amplifier Module include:

• Voice recognition systems

• Smart assistant devices

• Audio recording systems

• Sound detection projects

• IoT voice-enabled systems

• Robotics and automation

• Environmental sound monitoring

• Security and surveillance systems

• Interactive electronic devices

• Speech processing applications

• Embedded audio systems

• DIY electronics projects

The module’s compact PCB design allows easy integration into portable devices, robotics systems, wearable electronics, and compact embedded applications. Its lightweight structure and low power consumption make it suitable for battery-powered systems and energy-efficient electronics.

Another major advantage of the MAX9814 module is its ease of interfacing. Unlike complex audio processing circuits, this module integrates amplification, AGC, and microphone input into a single compact board, reducing circuit complexity and simplifying project development.

The module can also be integrated with machine learning and AI systems for speech recognition, audio classification, and intelligent sound analysis applications. Its clean analog output enables reliable audio data acquisition for embedded AI processing systems.

In security systems, the module is often used for sound-triggered alarms, noise detection systems, glass break detection, and audio surveillance applications. The AGC functionality improves reliability in changing environmental sound conditions.

For makers and hobbyists, the module provides an affordable and beginner-friendly solution for experimenting with audio electronics, sound processing, and voice interaction technologies. Extensive tutorials, Arduino libraries, and project examples are widely available online.

Proper grounding and stable power supply design are important for minimizing electrical noise and achieving optimal audio performance. Shielded wiring and clean power sources can further improve sound quality in sensitive audio applications.

Overall, the MAX9814 High Performance AGC Microphone Amplifier Module CMA is a powerful, compact, and highly efficient audio input solution designed for embedded audio processing, voice recognition, IoT systems, robotics, and automation projects. Its low-noise MAX9814 amplifier, built-in Automatic Gain Control, high-sensitivity electret microphone, selectable gain settings, and broad compatibility with popular microcontroller platforms make it an excellent choice for students, hobbyists, engineers, and developers working on intelligent audio-enabled electronic systems. Whether used in smart assistants, voice-controlled automation, sound monitoring devices, or interactive robotics projects, this module delivers reliable sound capture, stable amplification, and high-quality audio performance in a compact and easy-to-use design.
