MAX30102 Pulse Oximeter and Heart Rate Sensor Module

The MAX30102 Pulse Oximeter and Heart Rate Sensor Module is a highly integrated biometric sensor designed to measure heart rate (HR) and blood oxygen saturation (SpO₂) using optical sensing technology. Developed around the MAX30102 sensor IC by Maxim Integrated (now part of Analog Devices), the module combines red and infrared LEDs, a photodetector, optical components, and low-noise signal processing circuitry into a compact package. It is widely used in wearable health devices, fitness trackers, smartwatches, patient monitoring systems, medical research, and Internet of Things (IoT) healthcare applications.

The MAX30102 operates on the principle of photoplethysmography (PPG). It emits red and infrared light into the skin using its built-in LEDs. As blood flows through the capillaries with each heartbeat, the amount of light absorbed by oxygenated and deoxygenated blood changes. The integrated photodetector measures the reflected light, and the sensor processes these variations to calculate heart rate (beats per minute) and blood oxygen saturation (SpO₂). This non-invasive measurement technique provides fast and reliable biometric monitoring without requiring blood samples.

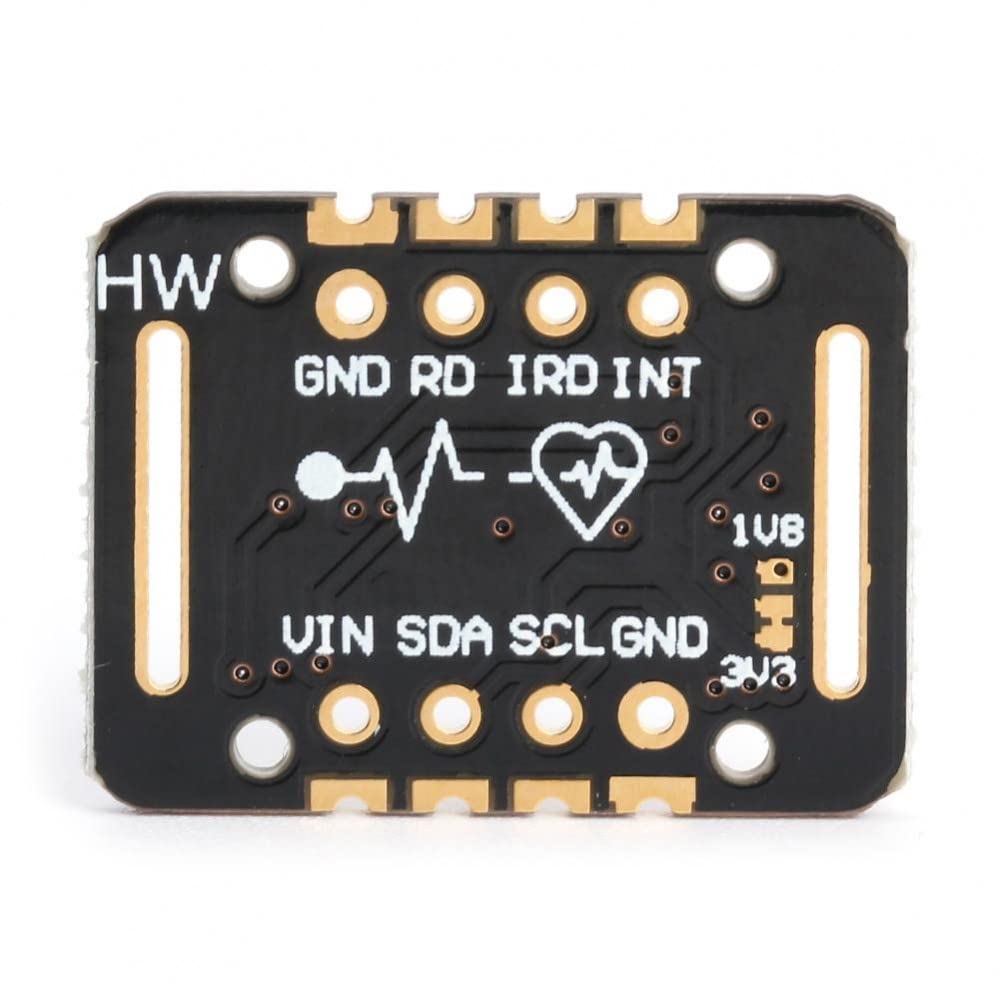

The module typically operates from a 1.8 V core voltage with a 3.3 V to 5 V input supply, thanks to the onboard voltage regulator and logic level circuitry available on most breakout boards. Communication with a microcontroller is achieved through the I²C (Inter-Integrated Circuit) interface, making it easy to connect with popular development platforms such as Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, AVR, and other I²C-enabled microcontrollers. The module usually includes pins for VIN, GND, SDA, SCL, and INT (Interrupt).

The MAX30102 Pulse Oximeter and Heart Rate Sensor Module is widely used in fitness bands, smartwatches, portable health monitors, patient monitoring systems, wearable medical devices, healthcare IoT applications, sleep monitoring systems, sports performance tracking, biomedical research, and educational electronics projects. Its low power consumption makes it particularly suitable for battery-operated wearable devices that require continuous biometric monitoring.

The module features advanced ambient light cancellation, programmable LED current, adjustable sample rates, and high-resolution analog-to-digital conversion, ensuring accurate measurements under various lighting conditions. It also supports low-power operation and offers high sensitivity for reliable pulse detection. For the best measurement accuracy, the user's finger should be placed steadily over the sensor, minimizing movement during data acquisition.

The main advantages of the MAX30102 Pulse Oximeter and Heart Rate Sensor Module include non-invasive heart rate and SpO₂ measurement, compact design, low power consumption, high sensitivity, built-in optical components, I²C communication, easy microcontroller interfacing, and compatibility with numerous embedded development platforms. These features make it an excellent choice for both prototype development and commercial health monitoring devices.

Overall, the MAX30102 Pulse Oximeter and Heart Rate Sensor Module is a reliable, accurate, and easy-to-use biometric sensing solution for modern healthcare and wearable electronics. Its integrated optical sensing technology, low power operation, and compatibility with popular microcontroller platforms make it an ideal choice for students, hobbyists, engineers, researchers, and professionals developing health monitoring, fitness, and IoT-based biomedical applications.
