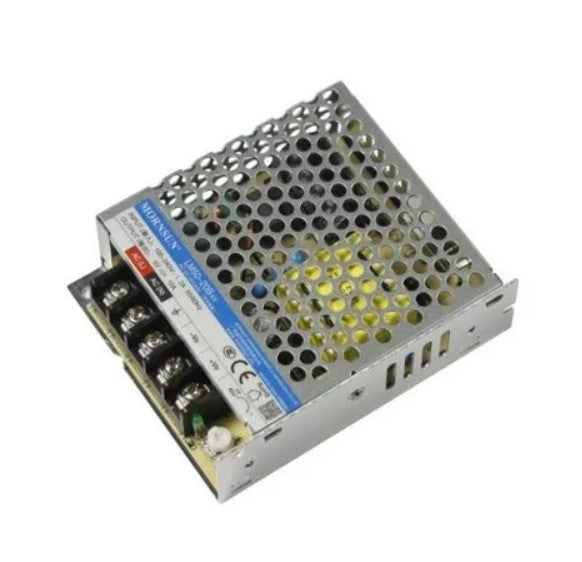

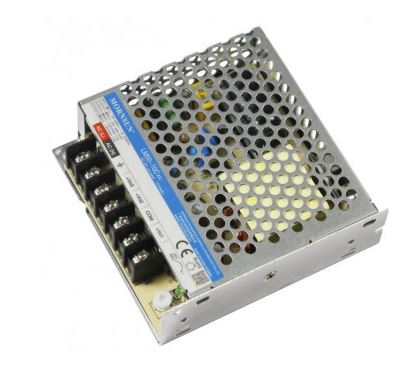

LM50 50W Switching Mode Power Supply (SMPS) – 24V 2.2A

The LM50 50W Switching Mode Power Supply (SMPS) – 24V 2.2A is a compact AC-to-DC regulated switching power supply designed to convert high-voltage AC mains electricity into a stable 24V DC output with a maximum output current of 2.2 Amperes. It is commonly used to power industrial automation equipment, PLC systems, LED lighting, CCTV systems, DC motors, robotics, embedded systems, control panels, laboratory equipment, and DIY electronic projects. The LM50 series provides high efficiency, reliable performance, and built-in protection features, making it suitable for continuous operation in industrial and commercial environments.

The power supply consists of an EMI filter, bridge rectifier, high-frequency switching MOSFET, PWM controller, high-frequency transformer, output rectifier, filter capacitors, voltage regulation circuit, cooling system, protection circuitry, input and output screw terminals, and a metal enclosure that provides mechanical protection and efficient heat dissipation.

The working principle of the LM50 Switching Mode Power Supply begins when an AC input voltage of 100–240V is supplied to the unit. The AC voltage is filtered to reduce electrical noise and then rectified into DC. The PWM (Pulse Width Modulation) controller switches the DC voltage at high frequency, allowing the transformer to efficiently step down the voltage. The output is then rectified, filtered, and regulated to produce a stable 24V DC output. A feedback circuit continuously monitors the output voltage and automatically adjusts the switching operation to maintain constant voltage even when the input voltage or load changes.

The LM50 50W SMPS provides the following typical electrical specifications:

• Power Supply Type: Switching Mode Power Supply (SMPS)

• Model: LM50

• Rated Output Power: 50 Watts

• Output Voltage: 24V DC

• Maximum Output Current: 2.2A

• Input Voltage: 100–240V AC, 50/60Hz

• Output Regulation: Constant Voltage

• Cooling Method: Natural Air Cooling

• Mounting Type: Panel or DIN Rail Compatible (depending on model)

The power supply includes multiple built-in protection features, including:

• Over-voltage protection

• Over-current protection

• Overload protection

• Short-circuit protection

• Over-temperature protection

These safety features help protect both the power supply and connected equipment, ensuring reliable and safe long-term operation.

The LM50 50W SMPS is suitable for powering a variety of devices, including PLC controllers, Arduino systems (through appropriate voltage regulators), ESP32 projects, Raspberry Pi accessories, DC motors, stepper motor drivers, LED strips, industrial sensors, automation controllers, communication equipment, CCTV cameras, laboratory instruments, and embedded systems.

The applications of the LM50 50W Switching Mode Power Supply include industrial automation, robotics, embedded systems, IoT devices, PLC control panels, CNC machines, 3D printers, LED lighting systems, CCTV surveillance, electronic testing equipment, laboratory instruments, educational electronics, prototype development, engineering projects, automation systems, and DIY electronics.

The advantages of the LM50 SMPS include high conversion efficiency, stable regulated 24V DC output, compact design, wide AC input range, low heat generation, low output ripple and noise, durable metal enclosure, reliable continuous operation, multiple built-in protection circuits, easy installation, long service life, and compatibility with a wide range of industrial and electronic equipment.

In conclusion, the LM50 50W Switching Mode Power Supply (SMPS) – 24V 2.2A is a reliable and efficient regulated power supply designed to deliver a stable 24V DC output for industrial, commercial, and educational applications. Its compact design, high efficiency, robust protection features, and dependable performance make it an excellent choice for automation systems, robotics, embedded electronics, laboratory equipment, and DIY engineering projects.
