LM317 Voltage Regulator

The LM317 Voltage Regulator is a versatile three-terminal adjustable positive voltage regulator IC designed to provide a stable and adjustable output voltage for a wide range of electronic applications. Unlike fixed voltage regulators, the LM317 allows the output voltage to be adjusted from approximately 1.25V to 37V using two external resistors, making it an ideal choice for variable power supplies, battery chargers, and electronic circuit designs. It is capable of delivering an output current of up to 1.5A with proper heat sinking, making it suitable for both low-power and medium-power applications.

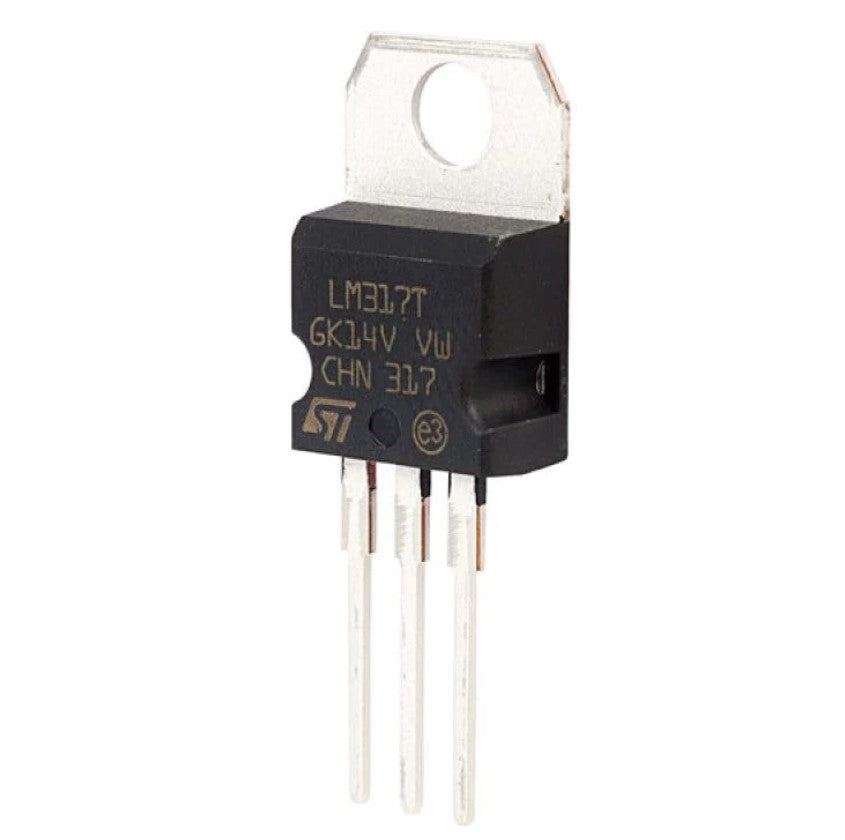

The LM317 features three terminals: Input, Output, and Adjust. The input pin receives an unregulated DC voltage, the output pin provides the regulated adjustable voltage, and the adjust pin is used to set the desired output voltage through an external resistor network. It provides excellent line and load regulation, ensuring a stable output voltage even when the input voltage or load current changes.

The regulator includes built-in protection features such as current limiting, thermal overload protection, and safe operating area protection, which help prevent damage caused by excessive current, overheating, or short circuits. These safety features make the LM317 highly reliable for continuous operation in various electronic systems.

The LM317 Voltage Regulator is widely used in adjustable DC power supplies, battery charging circuits, LED drivers, voltage regulators, laboratory power supplies, motor speed control circuits, and embedded electronic systems. It is also commonly used in Arduino and microcontroller projects where adjustable and regulated DC voltage is required. Its simple circuit design, wide voltage adjustment range, and dependable performance make it one of the most popular voltage regulator ICs used by students, hobbyists, technicians, and professional engineers.

the lm317 voltage regulator is a versatile and widely used adjustable linear regulator ic designed to provide a stable and precise output voltage for a variety of electronic circuits. it can deliver output voltages ranging from 1.25 volts to 37 volts with a maximum output current of up to 1.5 amps, making it suitable for powering a wide range of electronic devices, including microcontrollers, sensors, communication circuits, and small motors. the lm317 features internal current limiting, thermal overload protection, and safe area protection, ensuring reliable and safe operation even under challenging conditions.

this ic is ideal for building adjustable power supplies, battery chargers, voltage regulators, and diy electronics projects where a precise and stable voltage source is required. it is available in a compact three-pin package that is easy to mount on printed circuit boards or heat sinks for improved thermal management. widely used by hobbyists, students, and professionals, the lm317 voltage regulator offers excellent performance, reliability, and flexibility, making it an essential component in electronics prototyping, repair work, and practical experiments.
