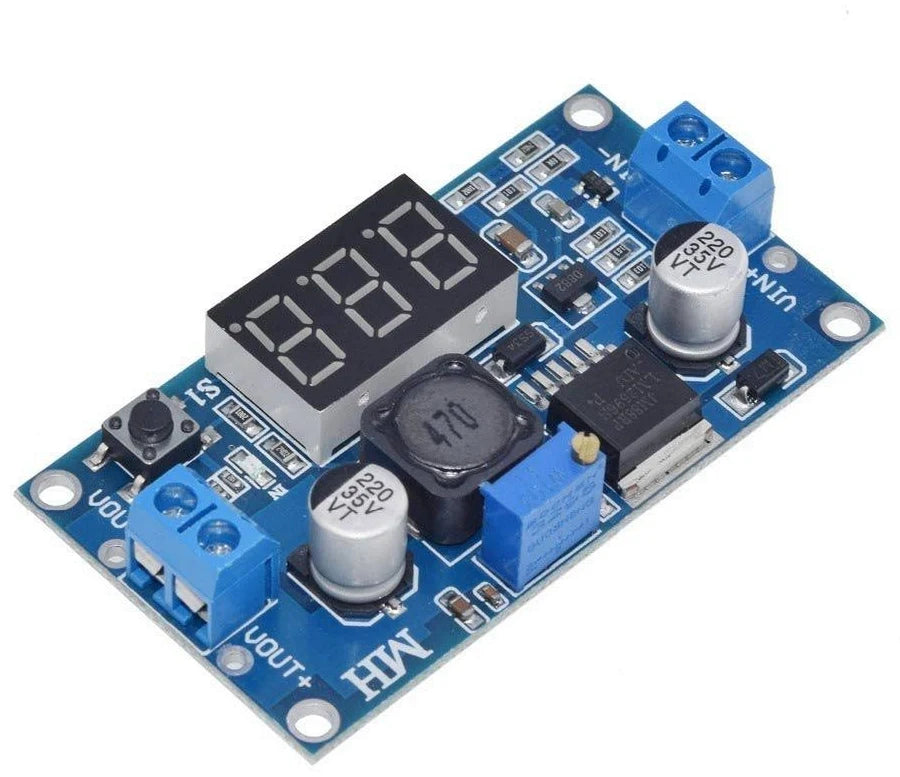

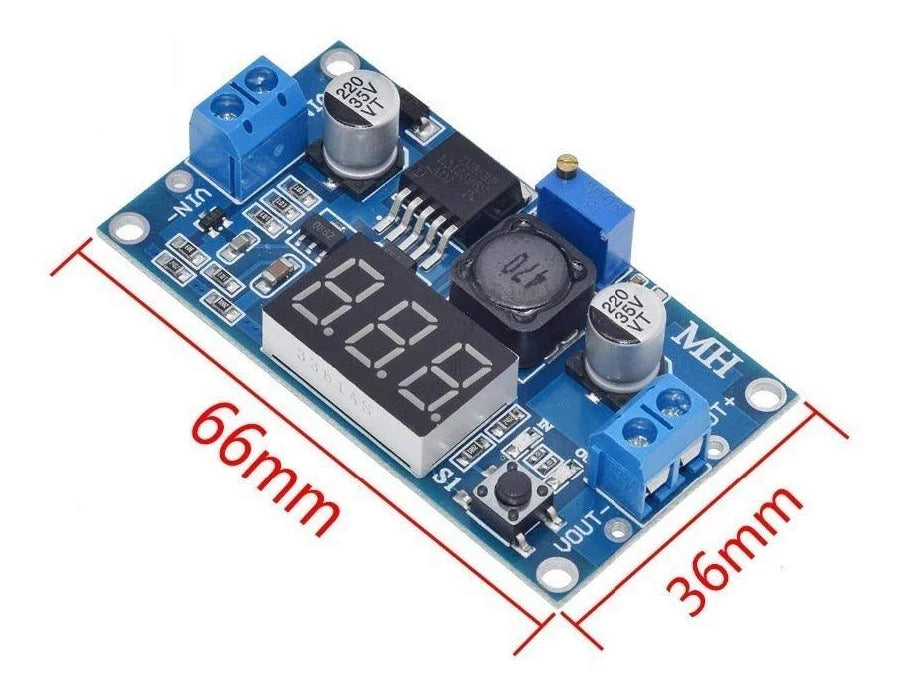

LM2596 DC-DC Step-Down Buck Module with LED Display

The LM2596 DC-DC Step-Down Buck Module with LED Display is a compact, high-efficiency DC voltage regulator designed to convert a higher DC input voltage into a stable, adjustable lower DC output voltage. Built around the reliable LM2596 switching regulator IC, this module provides efficient power conversion with minimal heat generation, making it ideal for powering a wide variety of electronic devices and embedded systems.

The module features a built-in digital LED voltage display that continuously shows the output voltage in real time, allowing users to monitor and adjust the voltage accurately without requiring an external multimeter. A precision multi-turn potentiometer enables smooth and precise adjustment of the output voltage to suit the requirements of different electronic circuits.

Supporting an input voltage range of 4V to 40V DC and an adjustable output voltage from 1.25V to 37V DC, the module is suitable for powering microcontrollers, development boards, sensors, motors, LED lighting, communication equipment, CCTV cameras, and other low-voltage electronic devices. With a conversion efficiency of up to 92%, it reduces energy loss, extends battery life in portable systems, and ensures stable operation even under varying load conditions.

The compact PCB design, durable components, and screw terminal connections make installation quick and convenient for both prototyping and permanent applications. Whether used in DIY electronics, industrial automation, laboratory power supplies, or embedded system development, the LM2596 DC-DC Step-Down Buck Module with LED Display delivers dependable voltage regulation, high efficiency, and ease of use.

Key Features

• Based on the LM2596 switching regulator IC

• Built-in digital LED output voltage display

• Adjustable output voltage

• Input voltage range: 4V–40V DC

• Output voltage range: 1.25V–37V DC

• High conversion efficiency up to 92%

• Stable and regulated DC output

• Low heat generation

• Precision multi-turn adjustment potentiometer

• Compact PCB design

• Easy screw terminal connections

• Reliable long-term performance

Applications

• Arduino projects

• ESP32 development boards

• Raspberry Pi power supply

• Battery charging systems

• DIY adjustable power supplies

• Robotics and automation

• LED strip power control

• CCTV camera power supply

• Automotive electronics

• IoT devices

• Industrial automation systems

• Laboratory power supplies

• Portable electronic devices

• Embedded systems

Benefits

• Efficiently converts higher DC voltage to lower DC voltage

• Real-time voltage monitoring with LED display

• Precise output voltage adjustment

• High efficiency reduces power loss

• Generates less heat than linear regulators

• Compact and easy to install

• Suitable for battery-powered and industrial applications

• Reliable performance for continuous operation

Technical Specifications

• Product Type: DC-DC Step-Down (Buck) Converter Module

• Regulator IC: LM2596

• Input Voltage: 4V–40V DC

• Output Voltage: 1.25V–37V DC (Adjustable)

• Display: Digital LED Voltage Display

• Conversion Efficiency: Up to 92%

• Adjustment: Multi-turn Precision Potentiometer

• Connection Type: Screw Terminal

• Mounting: PCB Module

Package Includes

• 1 × LM2596 DC-DC Step-Down Buck Module with LED Display
