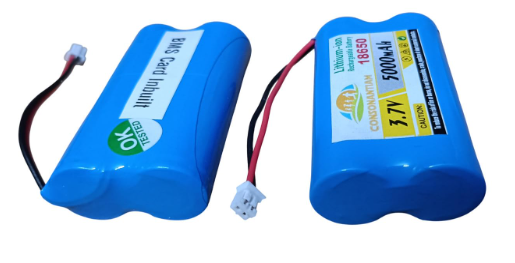

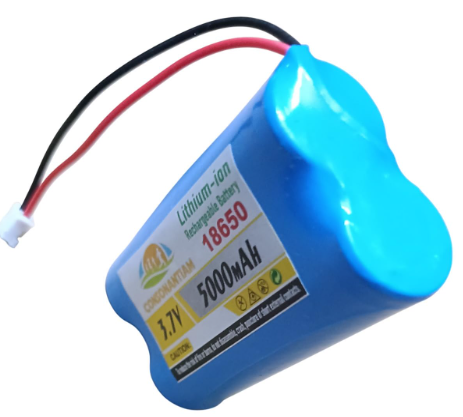

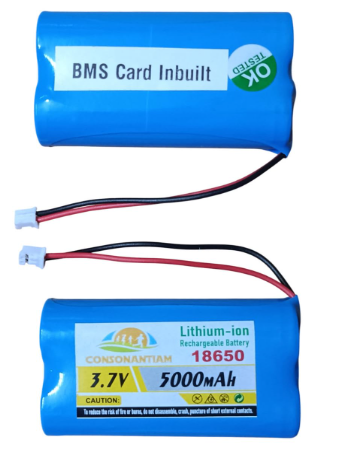

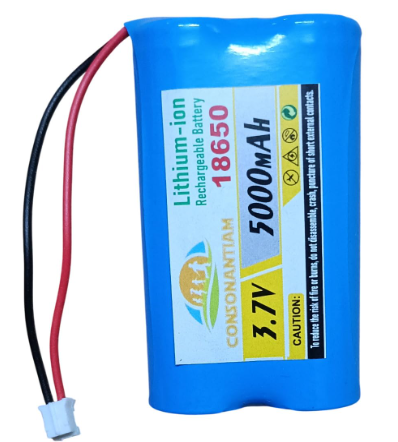

3.7V 5000mAh Lithium-Ion Rechargeable Battery (18650 Cell)

The 3.7V 5000mAh Lithium-Ion Rechargeable Battery (18650 Cell) is a high-capacity rechargeable battery designed to provide reliable and long-lasting DC power for a wide range of portable electronic devices and embedded systems. The battery follows the 18650 cylindrical cell standard, measuring approximately 18 mm in diameter and 65 mm in length, making it one of the most widely used rechargeable battery formats. It is commonly used in robotics, Arduino projects, IoT devices, portable electronics, LED lighting, solar energy systems, battery packs, power banks, medical devices, electric toys, DIY electronics, and embedded system applications.

The battery uses Lithium-Ion (Li-ion) rechargeable cell technology, which offers high energy density, low self-discharge, lightweight construction, and long cycle life compared to conventional rechargeable batteries. It consists of a positive electrode (cathode), negative electrode (anode), electrolyte, separator, steel cylindrical casing, positive and negative terminals, and an internal safety vent. Some versions also include a protection circuit (PCB) to prevent overcharging, over-discharging, over-current, and short circuits.

The working principle of the Lithium-Ion 18650 Battery is based on the movement of lithium ions between the anode and cathode. During charging, lithium ions move from the positive electrode to the negative electrode and are stored there. During discharge, the ions move back to the positive electrode while electrons flow through the external circuit, supplying electrical power to the connected device. This electrochemical process allows the battery to be recharged and reused hundreds of times.

The battery has the following typical electrical characteristics:

• Battery Type: Lithium-Ion (Li-ion) Rechargeable Battery

• Cell Model: 18650 Cylindrical Cell

• Nominal Voltage: 3.7V DC

• Fully Charged Voltage: 4.2V DC

• Cut-off Voltage: Approximately 2.75–3.0V DC

• Rated Capacity: 5000mAh (5Ah) (capacity depends on the manufacturer and actual cell specifications)

• Rechargeable: Yes

• Cycle Life: Typically 300–500 charge/discharge cycles or more under proper operating conditions

The battery is compatible with 18650 battery holders, battery management systems (BMS), Li-ion charging modules, and protection circuits. It can be used individually or connected in series and parallel configurations to achieve higher voltage or greater capacity for battery pack applications.

Charging should always be performed using a dedicated Lithium-Ion battery charger or a Battery Management System (BMS) that supports constant-current/constant-voltage (CC/CV) charging with a maximum charging voltage of 4.2V per cell. Overcharging, deep discharge, reverse polarity, or short circuits should be avoided to ensure safe operation and maximize battery life.

The battery is suitable for powering devices such as Arduino Uno, Arduino Nano, ESP32, ESP8266, Raspberry Pi (through appropriate voltage regulators), STM32, PIC, AVR microcontrollers, wireless sensor nodes, Bluetooth modules, Wi-Fi modules, portable speakers, LED flashlights, cameras, drones, robotics platforms, portable test instruments, and IoT devices.

The applications of the 3.7V 5000mAh Lithium-Ion Rechargeable Battery (18650 Cell) include portable electronics, robotics, IoT systems, embedded systems, battery packs, power banks, LED lighting, solar energy storage, emergency lighting, wireless communication devices, medical equipment, educational electronics, laboratory experiments, prototype development, automation systems, engineering projects, and DIY electronics.

The advantages of the battery include high energy density, rechargeable operation, lightweight design, compact 18650 form factor, low self-discharge rate, long cycle life, stable output voltage, high efficiency, compatibility with standard 18650 battery holders, reliable performance, and suitability for portable electronic applications.

Note: The actual capacity of an 18650 battery depends on the manufacturer. Many commercially available 18650 cells advertise 5000mAh, but genuine standard 18650 cells from reputable manufacturers are typically rated between 2000mAh and 3600mAh. Always verify the manufacturer's specifications before use.

In conclusion, the 3.7V 5000mAh Lithium-Ion Rechargeable Battery (18650 Cell) is a compact and efficient rechargeable power source designed for portable electronic devices and battery-powered systems. Its high energy density, rechargeable capability, standard 18650 size, and compatibility with a wide range of electronic applications make it an excellent choice for robotics, IoT devices, embedded systems, educational projects, automation, and DIY electronics.
